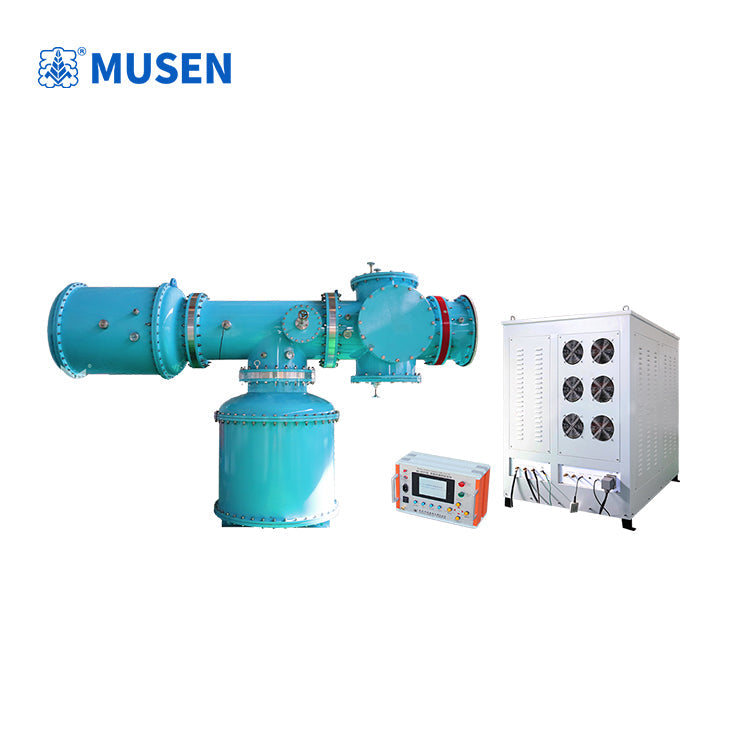

The 145kV power system GIS AC withstand voltage test without partial discharge is applicable to test items with a maximum capacitance of <0.0001F/bay (based on 3 bays + 9m GIS internal busbar ≤0.001μF), a total capacitance of ≤0.004uF, a test frequency of 100Hz, and a maximum test voltage of 235kV. Main Features: 1. High voltage is fully enclosed in a shielded chamber, ensuring safe and reliable testing. 2. Overall partial discharge can be controlled within 5 pc. 3. Compact size minimizes space usage and lightweight components. 4. Built-in high-voltage disconnect switch enables multi-purpose use. 5. Easy...

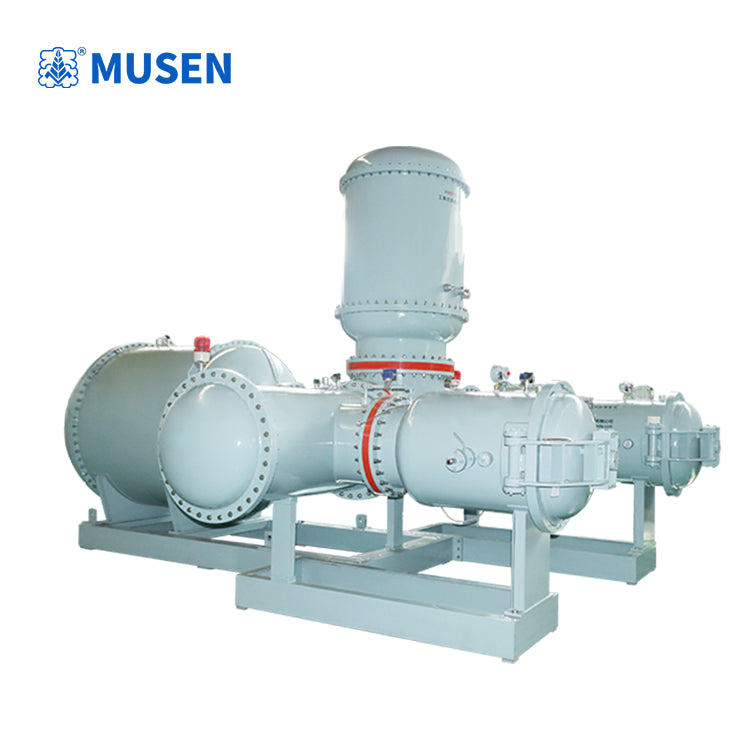

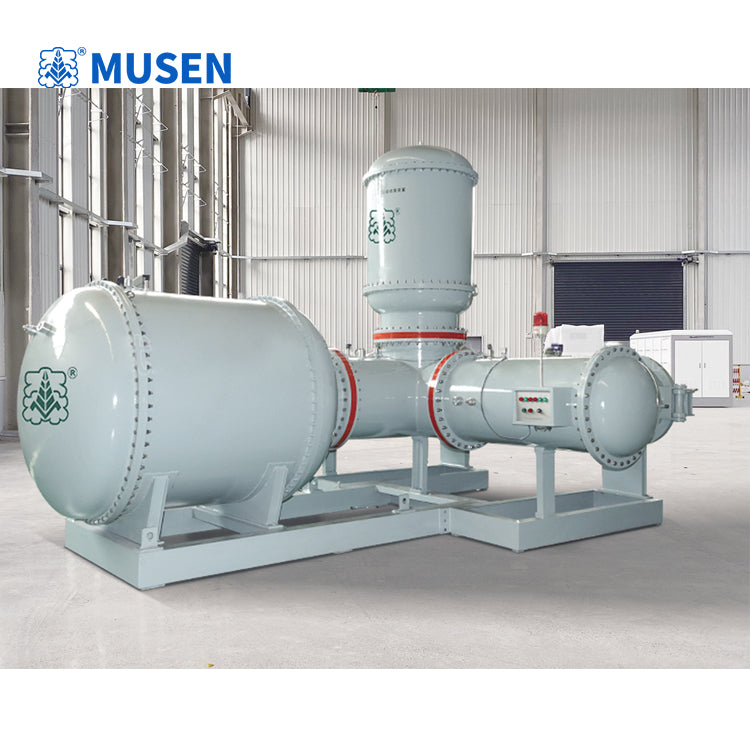

Scope of Application This 100-1200 kV gas-filled, no-partial discharge combined electrical test device is suitable for dielectric withstand voltage testing, partial discharge testing, and GIS transformer accuracy testing of high-voltage, large-capacity GIS and GIL power equipment. It is an essential device for GIS substations, GIS and GIL power equipment manufacturers, and manufacturers of pot insulators and insulating structural components for preventive and factory testing. Adding a high-voltage bushing port to this device allows high voltage to be extracted, enabling various high-voltage tests on conventional high-voltage equipment. Key Features 1. High voltage is fully enclosed in a...

Scope of Application This 100-1200 kV gas-filled, no-partial discharge combined electrical test device is suitable for dielectric withstand voltage testing, partial discharge testing, and GIS transformer accuracy testing of high-voltage, large-capacity GIS and GIL power equipment. It is an essential device for GIS substations, GIS and GIL power equipment manufacturers, and manufacturers of pot insulators and insulating structural components for preventive and factory testing. Adding a high-voltage bushing port to this device allows high voltage to be extracted, enabling various high-voltage tests on conventional high-voltage equipment. Key Features 1. High voltage is fully enclosed in a...
