Why is the VLF Hipot Tester the Safest Choice for High Capacitance Electrical Testing?

Keywords: VLF Hipot Tester, VLF Test Set, VLF Insulation Tester, 0.1Hz Hipot Testing, Cable Insulation Test, Wuhan Musen Electric

Introduction: Addressing the Challenges of High Capacitance Insulation Testing

In the modern power industry, ensuring the reliability of aging infrastructure and newly commissioned assets is paramount. For international electrical engineers, the primary challenge lies in testing high capacitance equipment—such as long-range XLPE power cables and large-scale rotating machinery. Traditional DC testing has proven inadequate and potentially harmful to polymer insulation, while power-frequency AC systems are too bulky for field deployment. Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) provides advanced diagnostic solutions designed to meet these rigorous international standards. The VLF Hipot Tester has emerged as the global benchmark, offering a non-destructive, efficient, and highly portable method for verifying dielectric strength at a fraction of the power required by conventional systems.

1. Why Use 0.1Hz Frequency for Large Capacitive Loads?

The technical superiority of the VLF Hipot Tester lies in the physics of capacitive reactance. In high-voltage engineering, the power ($P$) required to test a load is defined by $P = 2\pi fCV^2$. By reducing the frequency ($f$) from 50/60Hz to 0.1Hz, the power demand is reduced by a factor of 500 to 600. This allow engineers to perform high-voltage AC stress tests on massive loads—like several kilometers of submarine cable—using a compact, field-ready unit. Unlike DC methods, which can trap space charges in cable defects and lead to post-test failures, the 0.1Hz sinusoidal waveform provides a true AC stress that safely identifies water trees and mechanical voids without compromising the insulation's long-term molecular structure.

2. International Standards and Regulatory Compliance

Compliance with IEEE 400.2 and IEC 60502-2 is critical for international power projects. These standards explicitly recommend VLF (Very Low Frequency) technology for the field testing of shielded power cable systems. Utilizing a high-quality VLF Hipot Tester ensures that the testing procedures are legally and technically defensible during project handovers. For utility companies and EPC contractors, this means a significant reduction in the risk of unplanned outages. The MSVIF series from Musen Electric is engineered to produce a pure sine wave output, ensuring that the peak voltage stress is accurately applied and monitored, meeting the strictest global quality control requirements.

3. Enhanced Field Portability and Operational Efficiency

One of the most significant advantages for field technicians is the dramatic reduction in equipment weight and footprint. A standard power-frequency resonance system for a 35kV cable might require a dedicated truck and a large crew. In contrast, a modern VLF Hipot Tester is often man-portable or easily transported in a small van. This mobility is essential for renewable energy sites, such as wind farms and solar arrays, where access is often restricted. Furthermore, the integrated digital control systems allow for automated test sequences, real-time data logging, and immediate pass/fail reporting, which streamlines the maintenance workflow and reduces human error during critical inspections.

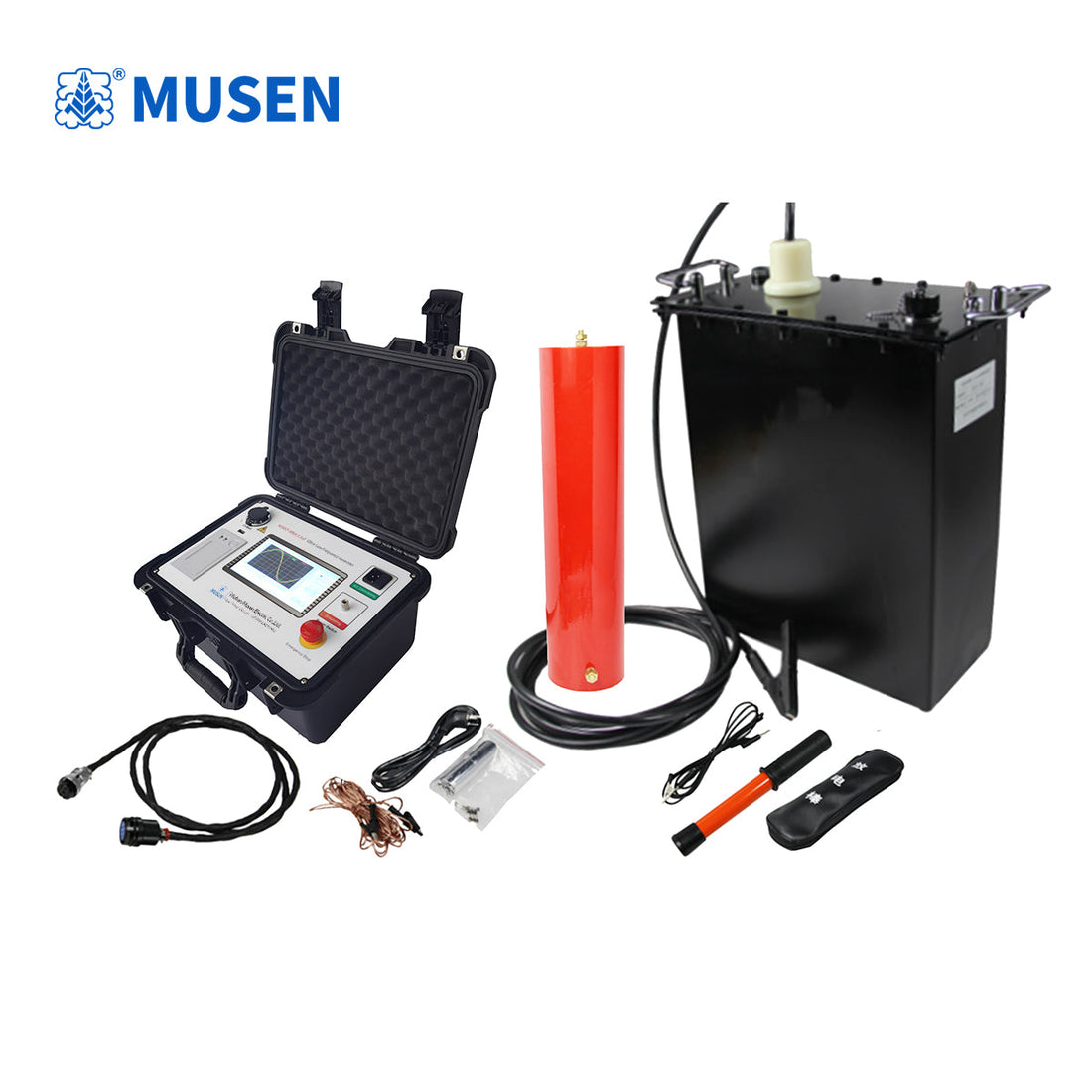

4. Technical Specifications: MSVIF Ultra-Low Frequency Generator

Wuhan Musen Electric Co., Ltd. offers professional-grade instrumentation designed for high-precision electrical diagnostics. Below are the core technical parameters for the MSVIF Series:

• Rated Voltage Output: 30kV / 40kV / 50kV / 60kV / 80kV / 90kV options

• Adjustable Output Frequency: 0.1Hz, 0.05Hz, and 0.02Hz

• Load Capacity Range: * 0.1Hz: Max 1.1µF

  • 0.05Hz: Max 2.2µF

  • 0.02Hz: Max 5.5µF

• Measurement Precision: 1% error margin

• Voltage Peak Error: ≤ 3% (Positive and Negative peaks)

• Waveform Distortion: ≤ 5% for clean sinusoidal testing

5. Frequently Asked Questions for Power Utility Professionals

Q1: Why is VLF preferred over DC for XLPE cable testing?

DC testing creates a "space charge" effect in cross-linked polyethylene (XLPE) that can cause the insulation to fail shortly after being returned to service. VLF provides the benefits of AC testing (no space charge) without the massive power requirements of 50/60Hz systems.

Q2: Can the MSVIF series test large motors and generators?

Yes. Due to the high load capacity at 0.02Hz (up to 5.5µF), our systems are ideal for the insulation resistance and dielectric strength testing of large-scale stator windings in motors and hydro/turbo generators.

Q3: How does the equipment handle a breakdown during a test?

The MSVIF system features high-speed over-current and over-voltage protection. In the event of an insulation breakdown, the unit shuts down within milliseconds to protect both the operator and the equipment under test, while recording the exact breakdown voltage.

Q4: Is the waveform quality affected by the load size?

No. Our advanced digital feedback loop ensures the waveform distortion remains below 5%, even when testing at the maximum rated capacitance, ensuring the validity of the test results according to international standards.

 Future-Proofing Your Power Assets

Investing in high-specification testing equipment is an investment in grid stability. As global energy demands increase and infrastructure ages, the ability to accurately diagnose insulation health is more important than ever. Wuhan Musen Electric Co., Ltd. remains committed to providing the international power community with robust, precise, and compliant diagnostic tools. By integrating our VLF technology into your maintenance program, you ensure the highest levels of safety and operational continuity for your most critical electrical assets. For more technical details and procurement inquiries, visit our official gateway at www.musenelectric.com.
