Preface: Meeting the Global Demand for Reliable PD-Free Testing

In overseas power engineering projects, partial discharge (PD) performance has become a decisive indicator for insulation quality and long-term asset reliability. The SF6 partial discharge free test transformer is increasingly adopted by utilities, EPC contractors, and high-voltage laboratories to meet strict international standards while improving safety and efficiency. This article explains its applications, technical advantages, and why integrated SF6 solutions are replacing traditional oil-based systems.

Application Scenarios in International Power Engineering

High-Voltage Equipment Acceptance & Type Testing

This technology is widely used for factory acceptance tests (FAT) and on-site commissioning of GIS, transformers, reactors, bushings, and switchgear. The SF6 partial discharge free test transformer enables stable PD measurements under power-frequency withstand voltage conditions, supporting IEC and IEEE testing requirements.

Overseas Substation & Grid Projects

For international substations, compact layout and environmental safety are critical. SF6-based systems operate cleanly in enclosed or mobile test environments, making them suitable for desert, coastal, or high-humidity regions.e.

Technical Advantages Over Traditional Test Systems

Integrated Design with Lower PD Background

Traditional PD test setups require external current-limiting resistors, coupling capacitors, and voltage dividers, often resulting in background PD levels close to 10 pC. In contrast, the SF6 partial discharge free test transformer integrates these components internally, reducing total PD to around 5 pC and improving measurement accuracy.
Internal link suggestion: Link to a “Partial Discharge Testing Principles” article.

Safety, Stability, and Environmental Performance

SF6 gas provides excellent arc-quenching and insulation strength. It is non-flammable and inherently safe, eliminating fire risks associated with oil-filled equipment. Fully sealed metal enclosures ensure stable operation with minimal environmental influence.

Operational Efficiency for Global Users

Transportation, Installation, and Maintenance

Lightweight construction and high structural integration significantly reduce transport and installation time—an important factor for overseas projects. The SF6 partial discharge free test transformer requires no oil handling or routine maintenance, only periodic monitoring of gas pressure and density.

Product Overview and Key Benefits

MS-YD QW Partial Discharge Free Power Frequency Test System

As a core solution from Wuhan Musen Electric Co., Ltd. (https://musenelectric.com/), this system represents the practical advantages of the SF6 partial discharge free test transformer in modern high-voltage testing.

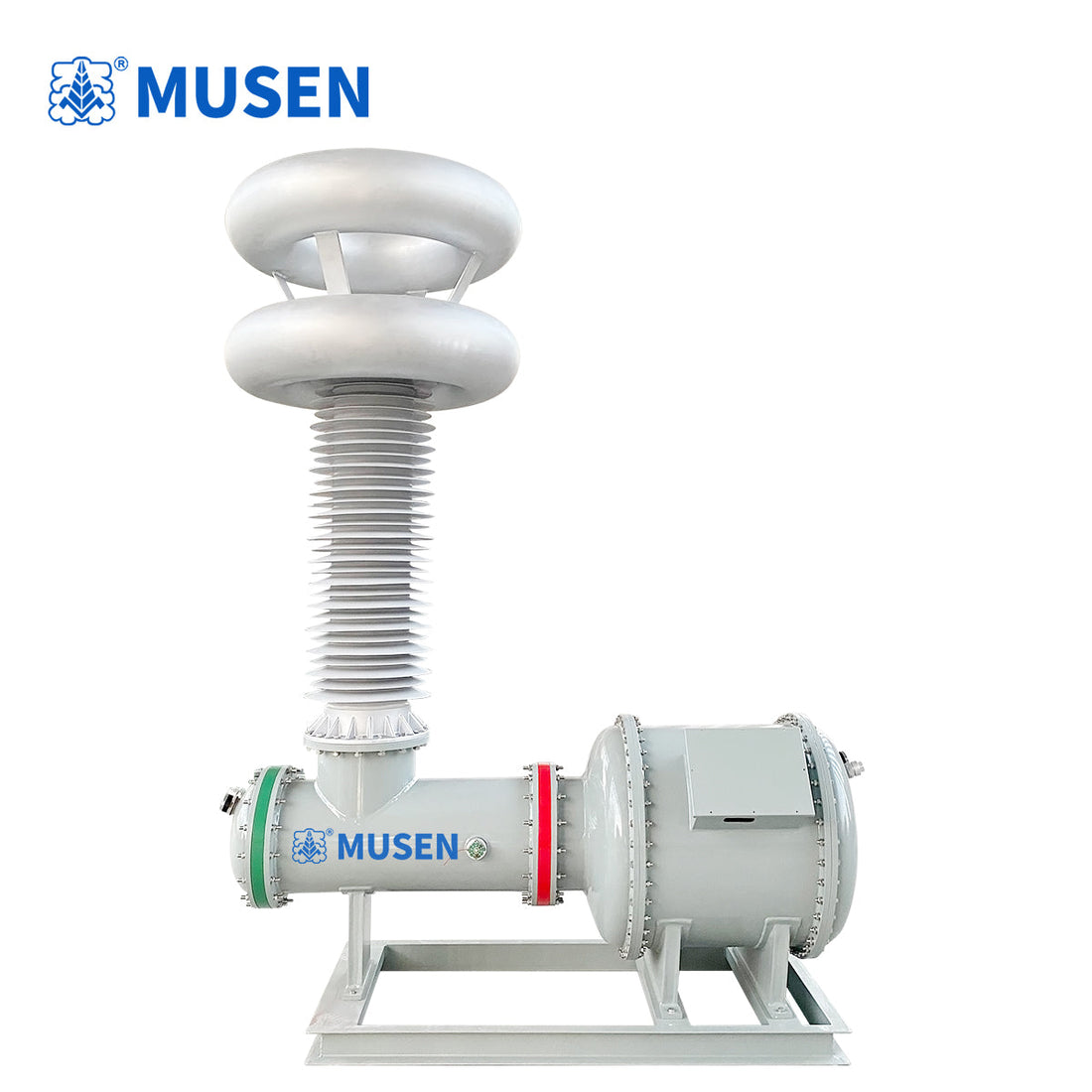

Model: MS-YDQW Partial Discharge Free AC Withstand Voltage Test Device (PD-Free Test Transformer)

Key Features:

• Strong arc-quenching capability and superior insulation performance

• Fire-proof, non-flammable gas ensuring intrinsic safety

• Lightweight, highly integrated structure combining gas-filled test transformer, coupling capacitor, current-limiting resistor, and voltage divider

• Easy transportation and installation with small footprint

• Clean operation with no oil contamination and minimal maintenance requirements

• Fully sealed metal enclosure, minimally affected by environmental conditions

PD Performance Comparison:

• Traditional systems with external components: ~10 pC

• Integrated SF6 system: ~5 pC total partial discharge

A Future-Ready Solution for PD-Free Testing

For international utilities and engineering companies seeking higher accuracy, safety, and operational efficiency, SF6-based integrated testing technology is setting a new benchmark. With its compact design, low PD background, and proven reliability, the solution from Wuhan Musen Electric Co., Ltd. provides a strong foundation for high-voltage insulation testing in global power networks.
