Why is the SF6 Insulated PD Free Transformer Essential for High Voltage Asset Integrity?

 SF6 Insulated PD Free Transformer, Partial Discharge Free High Voltage Test Transformer, PD Free Test Transformer, HV test system, transformer dielectric testing

Wondering how to ensure zero insulation defects in power equipment? Learn why the SF6 Insulated PD Free Transformer is the global standard for high-precision PD and AC withstand testing.

### **1. How Does the SF6 Insulated PD Free Transformer Eliminate Background Interference?**

In high-voltage engineering, the accuracy of diagnostic data depends entirely on the signal-to-noise ratio. Traditional oil-immersed test units often struggle with internal bubble formation or moisture, which generates "ghost" discharge signals. The **SF6 Insulated PD Free Transformer** utilizes sulfur hexafluoride gas as the insulating medium, which offers superior dielectric strength and a chemically stable environment. By housing the transformer, coupling capacitor, and voltage divider within a single gas-filled metal enclosure, the system effectively shields against external electromagnetic interference. This integration ensures that the background partial discharge level remains consistently below 5pC, allowing engineers to pinpoint even the most microscopic insulation flaws in power cables and GIS equipment.

### **2. Why Is the Partial Discharge Free High Voltage Test Transformer the Preferred Choice for Manufacturers?**

Electrical manufacturers of motors, high-voltage bushings, and instrument transformers require equipment that satisfies rigorous IEC and IEEE standards. The **Partial Discharge Free High Voltage Test Transformer** is designed for high-duty cycle performance, providing a pure sinusoidal waveform for power frequency withstand tests. Data-driven performance metrics show that using gas-insulated systems reduces the equipment footprint by up to 40% compared to oil-filled alternatives. This spatial efficiency, combined with the lack of oil-leakage risks, makes it the authoritative choice for clean-room laboratory environments. Furthermore, the inherent arc-quenching properties of SF6 provide a secondary layer of safety during catastrophic insulation failure of the test object, preventing fire hazards.

### **3. What Are the Performance Benchmarks of the MS-YDQW PD Free Test Transformer Series?**

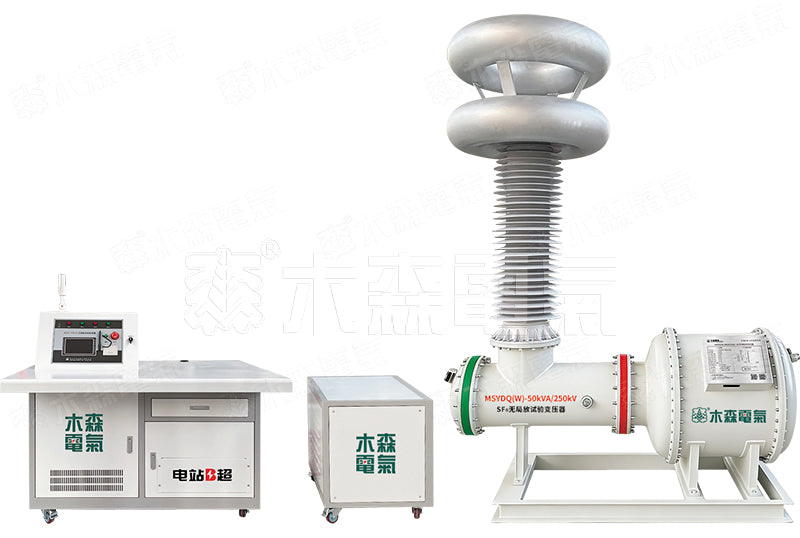

Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) has engineered the MS-YDQW series to meet the complex demands of global power utilities and electrical testing labs. This **PD Free Test Transformer** series is characterized by its modular architecture and intrinsic safety features. Unlike traditional discrete systems where the total PD might approach 10pC due to external cabling, our integrated design guarantees a total system discharge of <5pC. The system is fully hermetic, meaning its insulation performance remains constant regardless of altitude or ambient humidity, which is a critical factor for international EPC projects.

**Technical Specifications & Product Line:**
* **Models:** YDQW-10kVA/100kV, YDQW-20kVA/100kV, YDQW-30kVA/100kV, YDQW-50kVA/250kV, YDQW-250kVA/500kV
* **Insulation Type:** SF6 Gas (Non-combustible and fire-proof)
* **Core Integration:** Includes internal current-limiting resistor, coupling capacitor, and voltage divider.
* **Protection:** High-speed over-current/over-voltage protection with automatic zero-return logic.
* **Maintenance:** Maintenance-free design requiring only periodic gas density monitoring.

### **4. Frequently Asked Questions (FAQ) for Power Engineers**

**Q1: How does gas insulation compare to oil insulation in terms of weight and mobility?**
A1: SF6 gas systems are significantly lighter, often reducing total weight by 30-50%. This makes them far more suitable for site installation and mobile testing units compared to heavy oil-filled tanks.

**Q2: What is the benefit of the integrated design for partial discharge measurements?**
A2: Integration minimizes the length of high-voltage leads. This reduces the stray capacitance and potential corona discharge points, ensuring that the background noise floor is as low as possible for high-precision measurement.

**Q3: Does environmental humidity affect the testing results of this system?**
A3: No. Because the entire high-voltage circuit is sealed within a grounded metal tank filled with pressurized SF6, external humidity and dust have zero impact on the internal dielectric performance.

**Q4: Is the SF6 gas inside the transformer dangerous to the environment?**
A4: The MS-YDQW series is a fully sealed system designed to prevent leaks. As long as the gas is managed and recycled according to standard industry protocols (like those provided by Wuhan Musen Electric), it remains a safe and essential tool for HV testing.
