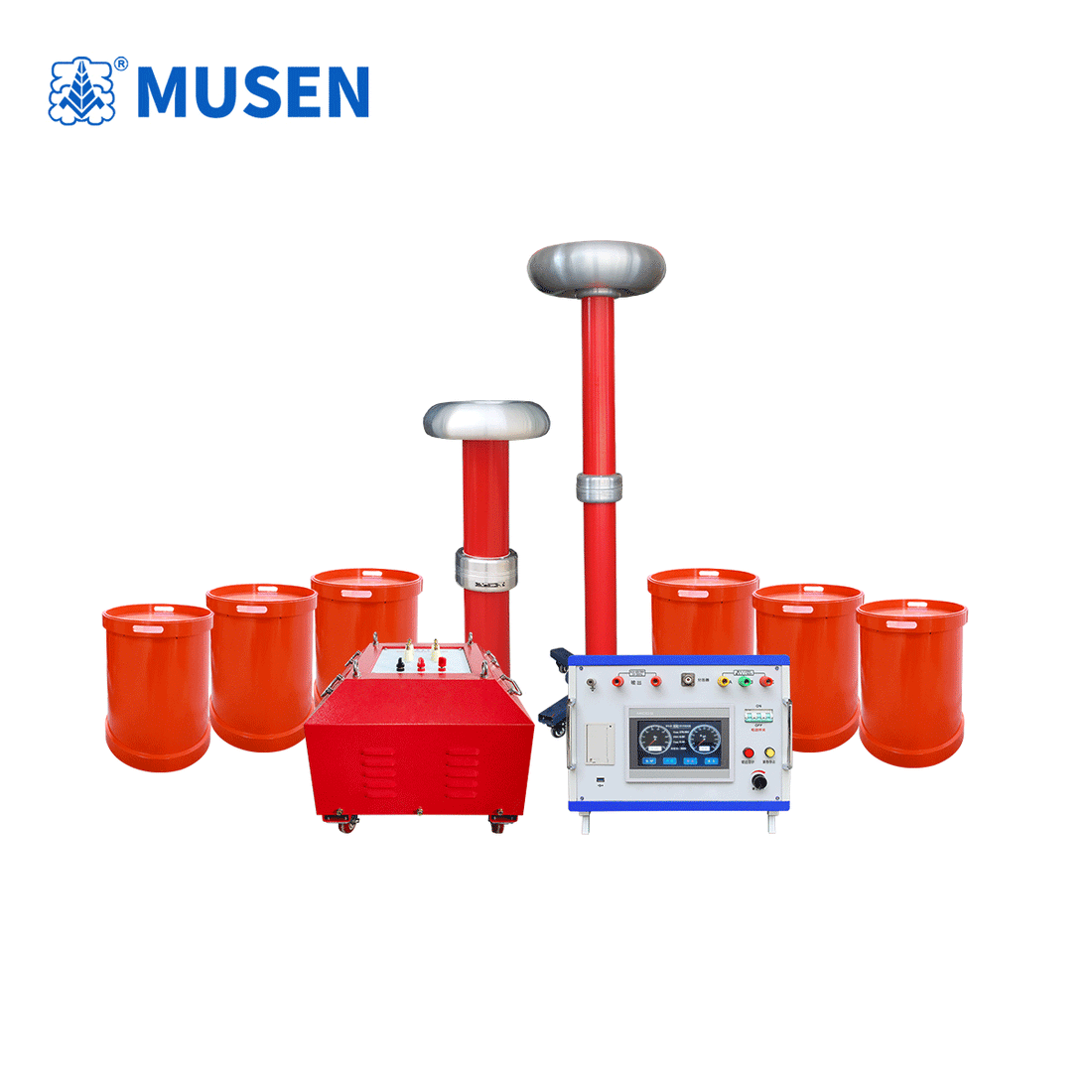

1. Why Must Utilities Prioritize the Series Resonance Test System for AC Hipot Procedures?

 In modern power grid management, the transition from traditional DC testing to AC frequency resonant testing is no longer optional; it is a technical necessity. For 6kV-500kV XLPE cables and GIS (Gas Insulated Switchgear), the Series Resonance Test System offers a non-destructive method to identify insulation weaknesses.

 Unlike DC methods which can cause space charge accumulation in cross-linked cables, this system simulates real-world operating conditions. Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) provides modular solutions that allow engineering teams to achieve high-voltage outputs using minimal input power, ensuring that even the most remote substations can maintain rigorous testing standards.

2. How Does the Ac Resonance Test System Optimize Field Testing Efficiency?

Field engineers often face logistical nightmares when transporting heavy testing equipment to rugged terrains. The Ac Resonance Test System solves this by leveraging the principle of electrical resonance, where the inductive reactance and capacitive reactance cancel each other out.

3. Can the Cable Resonance Test System Handle Ultra-Long Distance XLPE Lines?

One of the most significant challenges in power engineering is the high capacitance of long-distance underground cables. A standard transformer would require a massive kVA rating to energize such a load. However, the specialized Cable Resonance Test System utilizes adjustable reactors to match the specific capacitance of the cable under test.

By fine-tuning the frequency (typically between 30Hz and 300Hz), the system generates the required high voltage across the cable insulation while only drawing the "active" power losses from the source, making the testing of several kilometers of 500kV cable technically feasible and energy-efficient.

4. Technical Specifications and Performance Advantages of Musen Electric Systems To ensure the highest level of equipment safety and data integrity, our resonance systems incorporate several proprietary technologies designed for the rigorous demands of global utility companies:

• ⚡ Extreme Portability: The modular design ensures that individual components are lightweight, facilitating easy manual handling in confined GIS rooms or remote wind farms.
• ⚡ Low Power Consumption: Systems can be energized using standard 220V or 380V site power, eliminating the need for high-capacity generators.
• ⚡ Waveform Purity: Featuring a low-harmonic patent, the harmonic content is kept below 0.3%. This is significantly better than the standard 5% requirement, preventing damaging over-voltages caused by harmonic resonance in sensitive assets like main transformers.
• ⚡ Integrated Safety: Built-in safeguards include over-voltage, over-current, discharge (flashover), over-heat, and zero-start protections, ensuring a "Fail-Safe" environment for personnel.
• ⚡ High Equivalence: By testing at power frequency or near-power frequency, the results provide a more accurate assessment of the equipment's dielectric strength and long-term reliability.
