Optimizing Substation Safety: The Role of Advanced Gas Analysis

In the global power distribution sector, the operational integrity of Gas Insulated Switchgear (GIS) and transformers hinges on the purity of Sulfur Hexafluoride. As a premier manufacturer, Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) recognizes that moisture is the primary enemy of SF6 insulation. Excessive humidity triggers the formation of corrosive byproducts, leading to equipment failure. This article examines the technical implementation of high-precision moisture monitoring for international power projects.

1. Why is Precise Moisture Monitoring Essential for High-Voltage Assets?

The dielectric strength of SF6 gas is significantly compromised by water vapor. When electrical arcing occurs, moisture reacts with the gas to produce toxic substances like $SOF_2$ and $HF$. Using a high-performance Sf6 Dew Point Analyzer is no longer optional; it is a mandatory safety protocol for modern utilities. Accurate measurement ensures that the dew point remains below critical thresholds (typically -40°C or lower), preventing internal flashovers and extending the asset lifecycle by up to 15 years.

2. Technical Advantages of the Chilled Mirror Measurement Method

Unlike standard capacitive sensors that require frequent recalibration due to drift, the Sf6 Dew Point Analyzer utilizes the fundamental Chilled Mirror Equilibrium principle. This method provides an absolute measurement of moisture by cooling a metallic mirror until dew or frost forms.

• Zero Hysteresis: Direct physical measurement eliminates the lag found in chemical-based sensors.

• High Sensitivity: Capable of detecting trace moisture at levels as low as 1 PPMv.

• Long-term Stability: The physical nature of the sensor ensures consistent accuracy across years of field service.

3. Data-Driven Maintenance for Global Power Grids

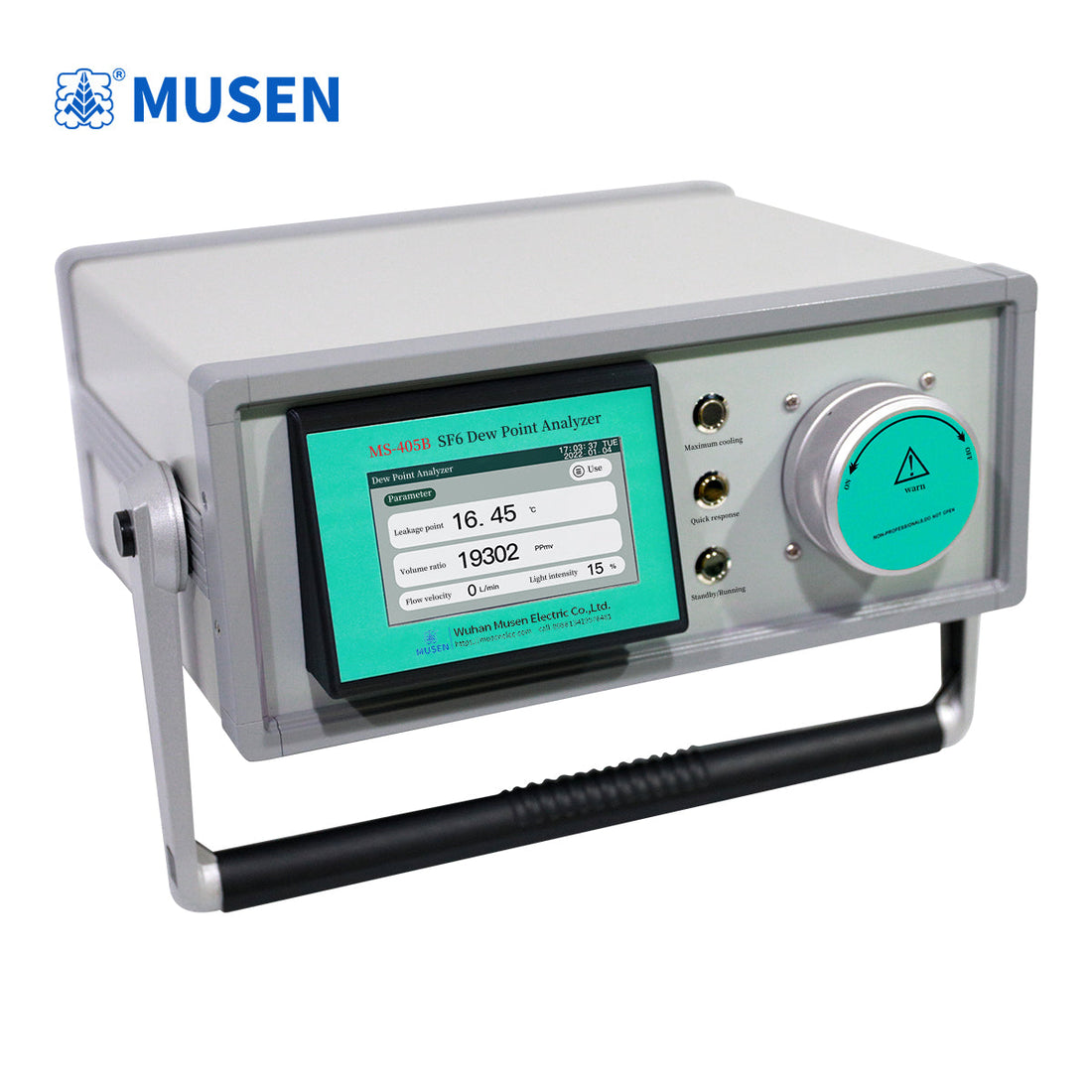

For overseas engineering firms, data transparency is vital. Modern testing equipment must go beyond simple readings to provide a comprehensive diagnostic profile. The Sf6 Dew Point Analyzer from Musen Electric integrates real-time data logging and multi-parameter visualization. By monitoring mirror light intensity and sample gas flow rates simultaneously, technicians can verify the validity of every test, ensuring that maintenance records meet the stringent "Golden Standard" required by international regulatory bodies.

4. Integrated Product Features for Professional Field Use

Designed for the rigors of international substation environments, our specialized analysis equipment incorporates several key technical innovations:

• Equilibrium Technology: Features a low-humidity rapid balance function, significantly reducing on-site testing time.

• Dual Display Metrics: Simultaneous display of dew point and moisture concentration (PPMv) with automatic conversion.

• Cooling Efficiency: Includes a built-in test for maximum cooling capacity to ensure performance in high-ambient temperature regions.

• High Repeatability: Engineered to provide consistent results under varying pressure conditions.

Securing the Future of Electrical Infrastructure

Precision in gas analysis is the cornerstone of grid resilience. By implementing advanced diagnostic tools from Wuhan Musen Electric Co., Ltd., utility operators can transition from reactive repairs to a sophisticated predictive maintenance model. Investing in high-accuracy testing today prevents the catastrophic costs of substation failure tomorrow.

Frequently Asked Questions (FAQ)

Q1: How does the analyzer handle different ambient pressures during field tests?

The system is designed with flow rate control and pressure compensation features to ensure that the dew point reading is normalized, providing accurate data regardless of whether you are testing at sea level or high-altitude substations.

Q2: What is the typical response time for a trace moisture measurement?

Thanks to the "Low-Humidity Fast Balance" function, the analyzer can reach a stable equilibrium in significantly less time than traditional hygrometers, usually within 3 to 5 minutes for standard SF6 equipment checks.

Q3: Can the data be exported for international reporting standards?

Yes, the device supports comprehensive data storage and export functions, allowing engineering teams to integrate readings into digital asset management systems and comply with global maintenance documentation requirements.

Q4: Is the sensor resistant to the corrosive byproducts of SF6?

The chilled mirror sensor is constructed from high-grade, corrosion-resistant materials, specifically chosen to withstand the trace amounts of acidic byproducts often found in aged SF6 gas.
