 In the global power sector, the reliability of electrical assets like power transformers and GIS switchgear is non-negotiable. The primary threat to these assets is insulation degradation, which is detected through Partial Discharge (PD) measurements. However, standard testing transformers often generate internal noise that contaminates test results. A high-performance PD Free Test Transformer solves this by maintaining an ultra-quiet electrical environment, ensuring that every pico-coulomb (pC) detected originates from the equipment under test, not the power source.

Unlike traditional oil-immersed systems that are prone to moisture and aging, modern testing utilizes the Partial Discharge Free High Voltage Test Transformer with SF6 gas insulation. This sulfur hexafluoride medium provides superior dielectric strength and exceptional arc-extinguishing properties. For overseas power engineers, this means a system that is unaffected by atmospheric humidity or altitude, providing consistent, repeatable data across different geographic locations.

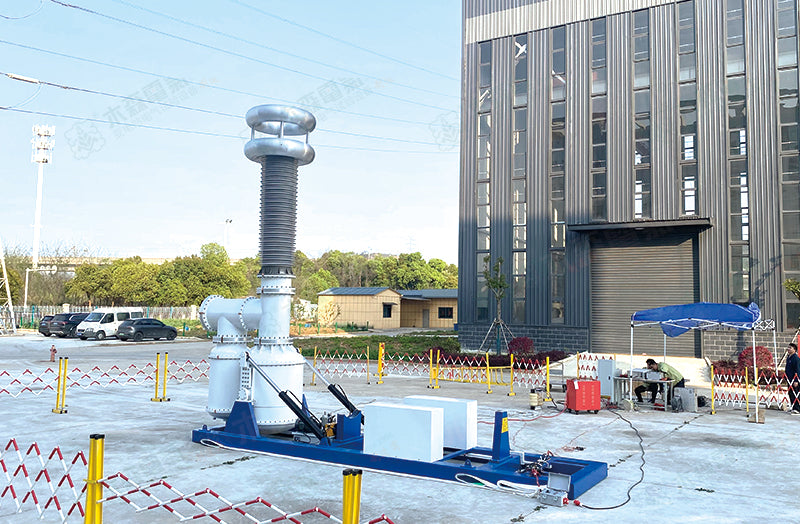

Traditional testing setups require separate coupling capacitors, voltage dividers, and resistors, all of which increase the risk of external corona discharge. The SF6 Insulated PD Free Transformer from Wuhan Musen Electric Co., Ltd. features a "Modular Integration" approach. By housing all critical components—the transformer, coupling capacitor, and current-limiting resistor—within a single metallic enclosure, the system reduces external interference and footprint. This structural integrity allows the total system PD level to be controlled under 5pC, compared to the 10pC or higher seen in disjointed traditional systems.

For power utilities and manufacturing labs, operational downtime is costly. Transitioning from oil-filled to gas-filled systems eliminates the need for oil sampling, moisture analysis, and chromatography. These gas-insulated units are intrinsically safe, fire-proof, and non-flammable. Maintenance is simplified to periodic monitoring of gas density and pressure gauges, making it a "plug-and-play" solution for high-voltage laboratories and production lines. 5. Frequently Asked Questions (FAQ)

Q1: What is the main difference between 10pC and 5pC testing environments? A 10pC background noise can mask early-stage insulation defects in sensitive equipment like high-voltage motors. A 5pC environment provided by an integrated transformer ensures much higher sensitivity for detecting insulation voids.

Q2: Is SF6 gas safe for indoor laboratory use? Yes. SF6 is a non-toxic, non-flammable gas. Our systems are hermetically sealed and include pressure monitoring to ensure zero leakage, meeting international safety standards for indoor HV labs.

Q3: Can these systems be used for both PD and AC withstand tests? Absolutely. These units are dual-purpose, capable of performing both Partial Discharge measurements and power-frequency withstand (Hipot) tests on cables, transformers, and insulators.

Q4: Why choose an integrated unit over a traditional separate-component setup? Integrated units save up to 50% of floor space and eliminate the "stray corona" risks associated with external high-voltage wiring, leading to more accurate data and faster setup times.
