1. Why is Partial Discharge Calibration Critical for Modern Power Grids?
In high-voltage engineering, the accuracy of monitoring systems directly impacts the lifespan of multi-million dollar assets. For utilities operating Gas Insulated Switchgear (GIS), a Partial Discharge Detector Calibration Device is the only way to verify that sensors can distinguish between ambient electronic noise and genuine insulation threats. At [www.musenelectric.com](https://www.musenelectric.com), we recognize that precision calibration reduces the risk of catastrophic failures and optimizes maintenance schedules for power grid operators and GIS manufacturers worldwide.
2. How Does the MS-GTU-PD808 Simulate Real-World Insulation Defects?

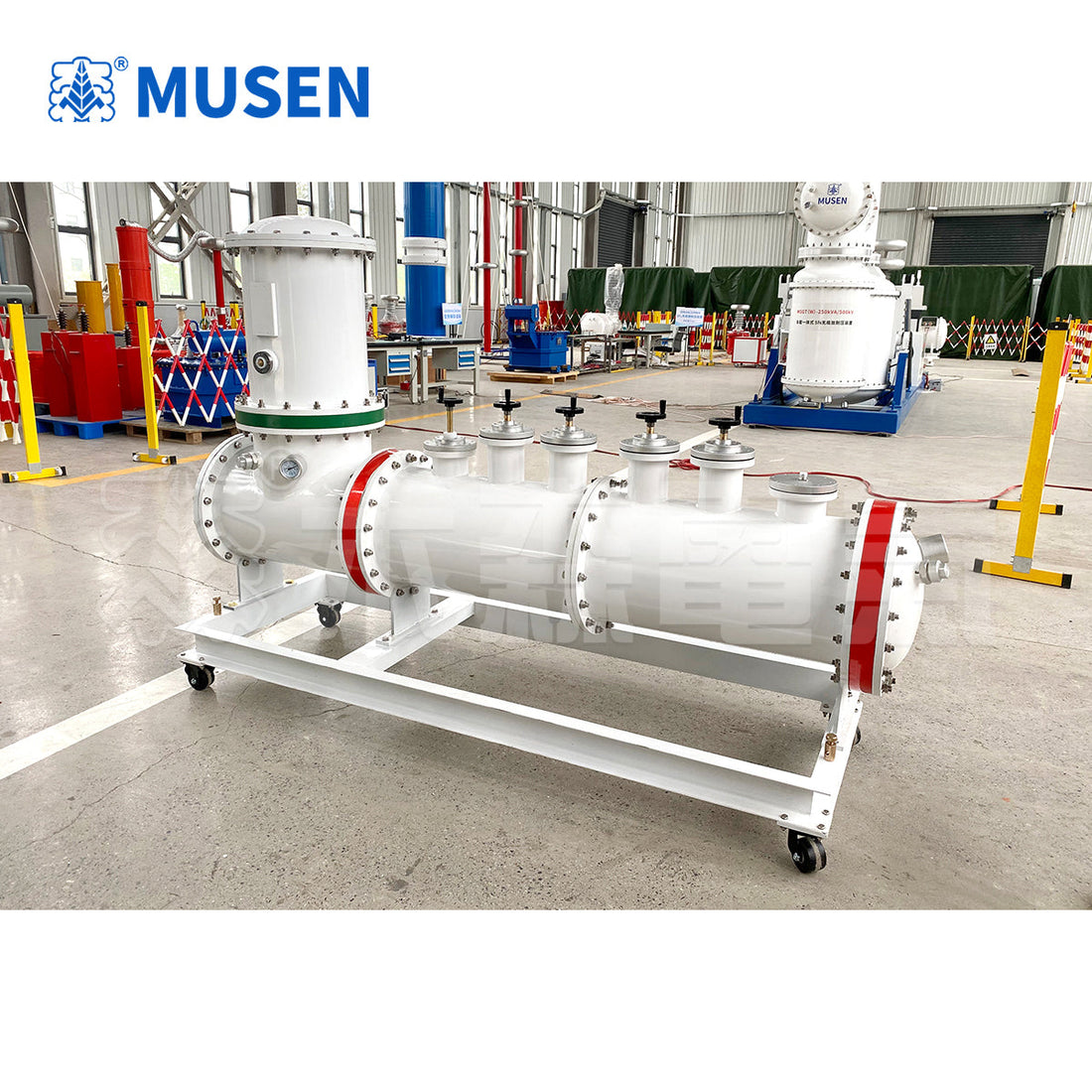

The MS-GTU-PD808 GIS Partial Discharge Simulation System serves as a comprehensive Partial Discharge Detector Calibration Device by replicating the most common electrical faults found in the field. Using a modular design, it allows technicians to create repeatable test environments for:
- Tip Discharge: Simulating sharp burrs on conductors.
- Floating Potential: Testing the response to ungrounded metal components.
- Particle Movement: Replicating the effects of free-moving metallic debris.
- Air Gap/Surface Creepage: Modeling insulation aging and contamination.
3. What Technical Advantages Ensure High-Accuracy Calibration?
Wuhan Musen Electric Co., Ltd. has engineered this system to meet the rigorous standards of international research institutes. The MS-GTU-PD808 integrates several industry-leading features into a single mobile platform:
Performance Data & Safety Specs:
- Ultra-Low Noise: Total background PD is guaranteed < 3pC for extreme sensitivity.
- Safety First: Fully encapsulated high-voltage sections protect operators in non-shielded rooms.
- Logistics Ready: Lightweight components and a ruggedized frame designed for long-distance shipping.
- Dual Measurement: Supports both Pulse Current and High-Frequency (UHF/AE) detection methods.
4. Can One Device Handle Both SF6 and Conventional Equipment Testing?
Versatility is a core requirement for modern electrical testing laboratories. This Partial Discharge Detector Calibration Device is not limited to GIS simulation. By adding modular high-voltage bushings, the MS-GTU-PD808 can perform conventional withstand voltage tests on various power equipment. It operates efficiently in both SF6 gas and standard air environments, providing a "one-stop" solution for PD sensor verification and basic insulation strength testing.
5. Frequently Asked Questions Regarding PD Calibration
Q: Why is a low pC rating important for the simulation system?
A system noise level of < 3pC ensures that the calibration signals generated are clean and accurate. If the background noise is too high, it becomes impossible to calibrate sensors for small, early-stage defects.
Q: Is the MS-GTU-PD808 suitable for mobile on-site testing?
Yes. The device is specifically designed with a compact footprint and lightweight modules, making it easier to transport to remote substations compared to traditional bulky testing transformers.
Q: Can it be used by GIS manufacturers for factory testing?
Absolutely. Many GIS manufacturers use this device to verify the installation of internal UHF sensors and ensure that their equipment meets the 3pC sensitivity standard before leaving the factory.
```
