Why Is the Frequency Resonance Test System Widely Used in Power Equipment Testing?

Reliable insulation performance is fundamental to the safety and longevity of high-voltage assets. Utilities, EPC contractors, and industrial power operators must perform accurate AC withstand testing before commissioning and during maintenance cycles. Choosing the right testing technology directly affects energy efficiency, on-site safety, and compliance with IEC and IEEE standards.

The Frequency Resonance Test System has become a preferred solution for medium- and high-voltage testing worldwide. This article explains its practical applications and technical advantages in modern power equipment testing.

Where Is It Applied in Power Equipment Testing?

The Frequency Resonance Test System is primarily used for testing capacitive high-voltage equipment, including:

• XLPE power cables (after installation or repair)

• Gas-Insulated Switchgear (GIS)

• Power transformers

• Circuit breakers and instrument transformers

In cable commissioning projects, the system enables accurate AC withstand testing over long distances without requiring excessive power input. For GIS substations, it ensures stable voltage output under large capacitive loads.

 How Does It Improve Energy Efficiency?

Traditional AC test transformers demand high input capacity, especially for long cable systems. In contrast, a Frequency Resonance Test System operates based on series resonance principles, generating high voltage with minimal input power.

Key efficiency advantages include:

• Reduced power supply requirements

• Smaller generator capacity for field testing

• Lower operational energy consumption

• Optimized voltage amplification through resonance

These benefits are particularly valuable in overseas projects where power resources may be limited or unstable.

Why Is It Safer for High-Voltage Testing?

Safety performance is a major concern during high-voltage withstand testing. The Frequency Resonance Test System provides inherent protection characteristics:

• Limited short-circuit current during breakdown

• Automatic frequency tuning to resonance point

• Over-voltage and over-current protection

• Real-time monitoring and data recording

By naturally limiting fault current, the system reduces thermal stress on the test object and enhances operator protection.

What Makes It Suitable for Large Capacitive Loads?

Power cables and GIS installations present significant capacitive loads. The adjustable frequency range of a Frequency Resonance Test System allows precise matching to different capacitance values, ensuring stable and continuous voltage output.

Its modular reactor design also enables flexible configuration for:

• 110kV to 400kV cable testing

• Large substation commissioning

• Renewable energy grid integration projects

This adaptability reduces equipment redundancy and improves cost efficiency across multiple voltage classes.

Why Partner with Wuhan Musen Electric Co., Ltd?

Wuhan Musen Electric Co., Ltd specializes in advanced high-voltage testing equipment for international markets. The company provides customized configurations based on voltage level, required test capacity, and project site conditions.

Official Website:
https://musenelectric.com/

With extensive export experience, Musen Electric supports utilities and engineering firms with technically reliable and field-proven testing solutions.

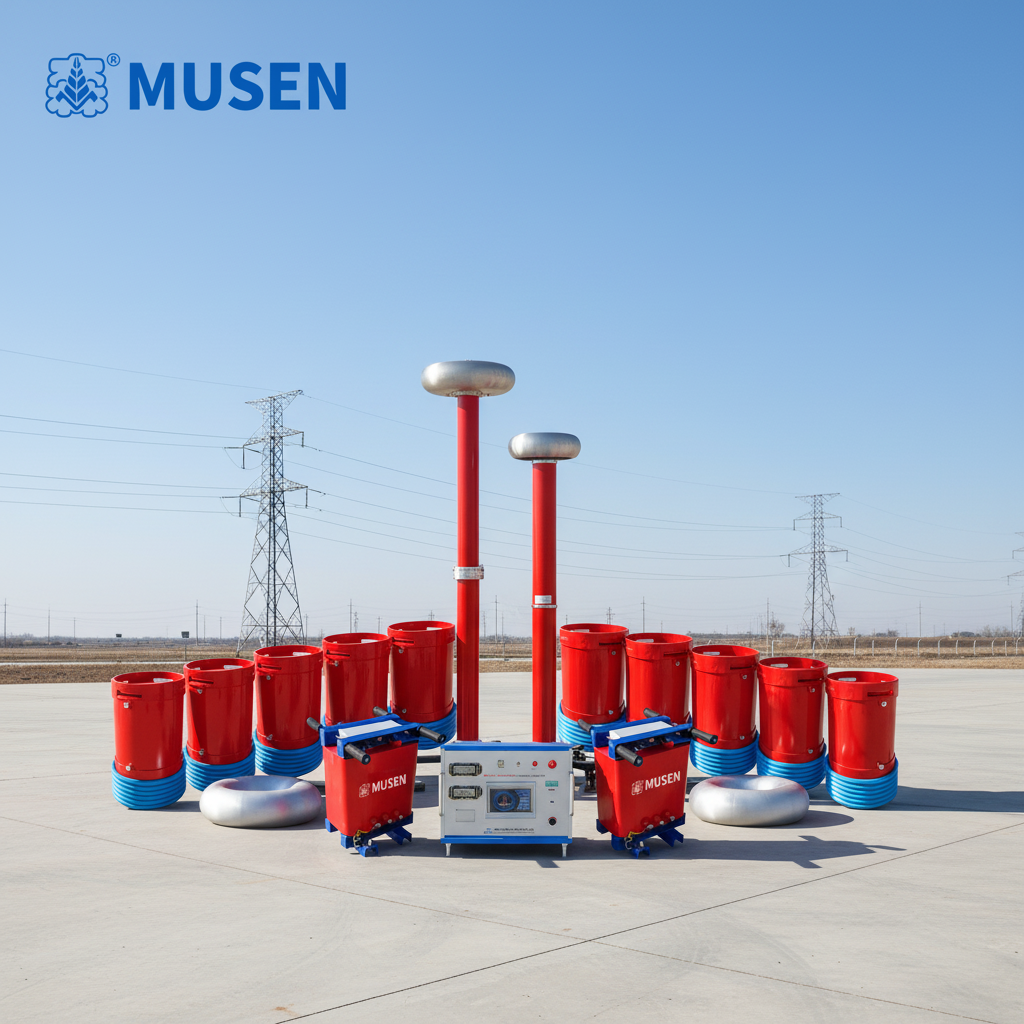

Product Overview: Frequency Resonance Test System

The Frequency Resonance Test System from Wuhan Musen Electric is engineered for efficient and safe AC withstand testing in medium- and high-voltage applications.

Core Advantages:

• Wide frequency adjustment range for different load conditions

• Modular reactor configuration for scalable capacity

• Compact and transport-friendly structure for overseas deployment

• Intelligent digital control system with precise voltage regulation

• High Q-factor design for efficient voltage amplification

• Comprehensive protection system compliant with IEC standards

Designed for cable commissioning, GIS validation, and transformer testing, the system combines energy efficiency, operational safety, and precise output control. It offers an optimized solution for international power engineering projects requiring reliable, scalable, and cost-effective high-voltage testing equipment.

Conclusion

Efficient, accurate, and safe high-voltage testing is essential for modern power infrastructure. The Frequency Resonance Test System delivers clear advantages in energy efficiency, protection performance, and adaptability to large capacitive loads.

For global utilities and EPC contractors seeking dependable high-voltage testing solutions, Wuhan Musen Electric provides professionally engineered systems designed to meet international standards and field requirements.

Visit https://musenelectric.com/ to explore detailed specifications and request customized technical support for your next power equipment testing project.
