Why is the AC Series Resonance Test System Essential for High-Voltage Grid Reliability?
Why is the AC Series Resonance Test System Essential for High-Voltage Grid Reliability?
AC Series Resonance Test System, GIS Partial Resonance Test System, Cable Resonance Test System, High Voltage Hipot Testing, Musen Electric
Discover why global power utilities rely on the AC Series Resonance Test System for 6kV-500kV cable and GIS testing. Learn how Musen Electric’s resonant technology ensures safety and precision.
Technical Efficiency Comparison
- ⚡ Power Requirement: Only 1/30th of traditional methods.
- ⚡ Weight Advantage: 70% to 90% lighter than conventional test sets.
- ⚡ Waveform Quality: Pure sine wave output with <0.3% THD.
Performance Data and System Capabilities

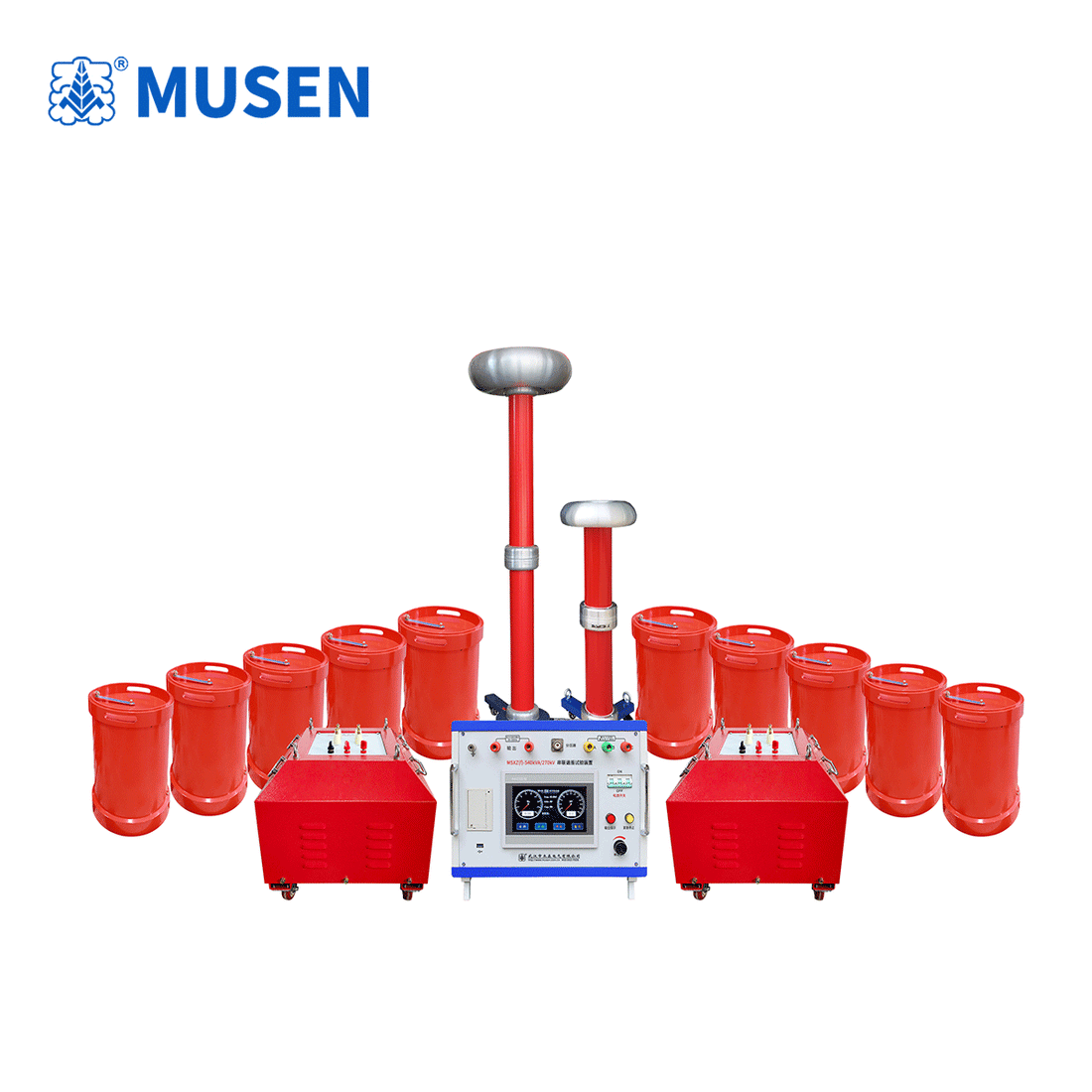

Wuhan Musen Electric's Ac Series Resonance Test System is built for the rigors of field engineering. The modular design allows engineers to configure the system for varied assets including motors, main transformers, and bushings. With a specialized low-harmonic patent, the system ensures that harmonic content remains below 0.3%, protecting generators and transformers from the damaging effects of high-voltage peaks often caused by harmonic distortion.
- Portability & Scale: The system is 1/10 to 1/30 the weight of traditional transformers, making it easily transportable to remote wind farms or high-rise substations.
- Power Flexibility: Operates seamlessly on standard 220V or 380V onsite power supplies.
- Advanced Safety: Built-in automatic protection against over-voltage, over-current, discharge (flashover), and over-heating, including a critical zero-start safety lock.
- Precision Data: By running the test object at rated voltage through a resonant circuit, we obtain authentic performance metrics essential for asset health monitoring.
- Modular Efficiency: Comprised of multiple reactors, the setup can be customized for large-capacity test objects while maintaining ease of handling.
Frequently Asked Questions (FAQ)
Why is frequency-tuned resonance better than power-frequency testing?
Frequency tuning (30-300Hz) allows the system to find resonance with much smaller, lighter reactors. This mobility is crucial for field work where heavy crane access for traditional transformers is unavailable.
Can Musen Electric’s system protect my equipment during a flashover?
Yes. Because the system relies on a specific resonant frequency, any insulation breakdown immediately breaks the resonance. This causes the voltage to drop to zero instantly, preventing the high-energy arc damage common in traditional AC tests.
What is the benefit of the <0.3% harmonic patent?
High harmonics can cause localized heating and insulation stress. Our patented technology ensures a near-perfect sine wave, which exceeds international standards and guarantees the safest possible test environment for your primary equipment.
How do I choose the right configuration for my 110kV cable?
Selection is based on the cable's length (capacitance) and required test voltage. Our technical team at Musen Electric provides customized reactor configurations to ensure you meet all IEEE/IEC standards with maximum efficiency.
For more professional high-voltage solutions, visit [www.musenelectric.com](https://www.musenelectric.com)
