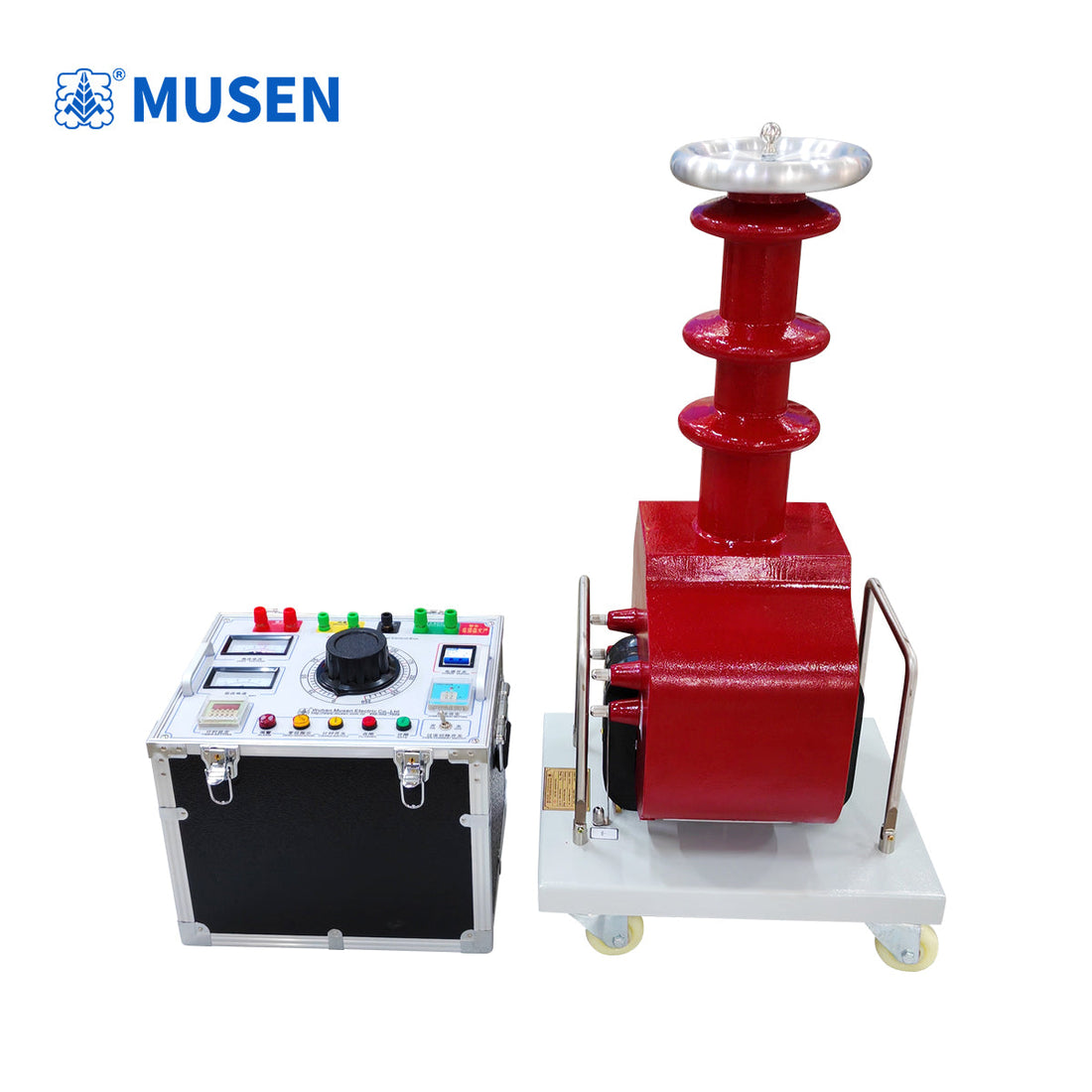

Why is the AC DC High Voltage Test Transformer Essential for Power Grid Reliability?

 High Voltage Test Transformer, AC DC Insulation Tester, Hipot Testing Equipment, Dielectric Strength Test, Wuhan Musen Electrical

 Discover why the AC DC High Voltage Test Transformer is critical for electrical insulation safety. Explore technical insights and professional testing solutions from Wuhan Musen Electrical.

1. What Defines a High-Performance AC DC High Voltage Test Transformer?

In global power engineering, the integrity of high-voltage infrastructure depends on precise diagnostic tools. A High Voltage Test Transformer is the primary apparatus used to verify dielectric strength and insulation reliability. Unlike standard power transformers, these units are designed to operate at their thermal limits for short durations, providing the extreme potential required to stress insulation systems. At Wuhan Musen Electrical Co., Ltd. (www.musenelectric.com), we focus on delivering equipment that yields quantifiable data for preventative maintenance, ensuring that switchgear and transformers can withstand transient overvoltages without catastrophic failure.

2. How Does an AC DC Insulation Tester Impact Asset Longevity?

The application of a specialized insulation tester allows for the detection of microscopic fissures, moisture ingress, and thermal degradation within electrical components. By utilizing controlled frequency and voltage levels, engineering teams can plot leakage current curves that serve as a "health signature" for the asset. This data-driven approach shifts maintenance from reactive to proactive, significantly reducing the Total Cost of Ownership (TCO) for utility providers. Whether performing routine field inspections or factory acceptance tests, the precision of the voltage output is paramount to avoiding insulation puncture during the testing process itself.

3. Which Testing Scenarios Require a Specialized Hipot Tester?

Professional power engineering projects demand versatility across diverse environments. A modern High Voltage Test Transformer must be adaptable to both laboratory and extreme field conditions. The choice of insulation medium—Oil, Gas (SF6), or Dry-type—directly influences the equipment's performance at high altitudes or in confined indoor substations. For instance, SF6 gas-filled units provide superior arc suppression and weight reduction for mobile testing, while dry-type epoxy resin models offer a maintenance-free solution for sensitive indoor environments where oil leakage is a strictly prohibited risk factor.

4. Technical Specifications and Integrated Safety Features

Wuhan Musen Electrical provides high-precision testing solutions engineered for the rigorous standards of international power projects:

• Multifunctional Integration: A single system supports AC/DC withstand voltage, power frequency testing, and leakage current measurement, streamlining the testing workflow for complex substations.

• Versatile Insulation Options: Available in Oil-immersed (robust/economical), Dry-type (clean/lightweight), and Gas-filled/SF6 (portable/high-altitude) configurations.

• Scalable Capacity & Voltage: Power ranges from 1.5kVA to 300kVA, with standard voltage outputs at 50kV, 100kV, and 150kV to meet various industrial load requirements.

• Modular Control Architecture: The decoupled design of the control console and the transformer unit allows for flexible transport and easy hardware upgrades.

• Advanced Safety Logic: Includes zero-position start interlocking, ultra-fast over-current and over-voltage protection, and synchronized acoustic-optic alarm systems for maximum operator security.

• Broad Utility Support: Engineered for the insulation strength verification of cables, GIS switchgear, power transformers, bushings, and insulating materials.

5. Common Questions Regarding High Voltage Dielectric Testing

Q1: How do I determine the required kVA capacity for my test object?

The capacity is calculated based on the test voltage (U) and the capacitive current (I) of the object (P = U * I). For large capacitive loads like long-distance cables, a higher kVA rating is necessary to maintain a stable waveform.

Q2: Is DC testing a viable substitute for AC withstand testing?

While DC testing is excellent for measuring leakage current and finding localized defects, AC testing is generally preferred for final validation as it more closely mimics the actual operating stresses of an AC power grid.

Q3: What are the advantages of SF6 gas-filled transformers for field work?

SF6 models are approximately 20% to 30% lighter than oil-immersed units of the same rating. They are also non-flammable and provide better insulation recovery, making them the gold standard for site-based commissioning.

Q4: Can this High Voltage Test Transformer be used for partial discharge (PD) testing?

Standard units are for withstand tests; however, Musen Electric offers specialized "PD-Free" versions with ultra-low background noise levels (typically <5pC) specifically designed for sensitive partial discharge analysis.
