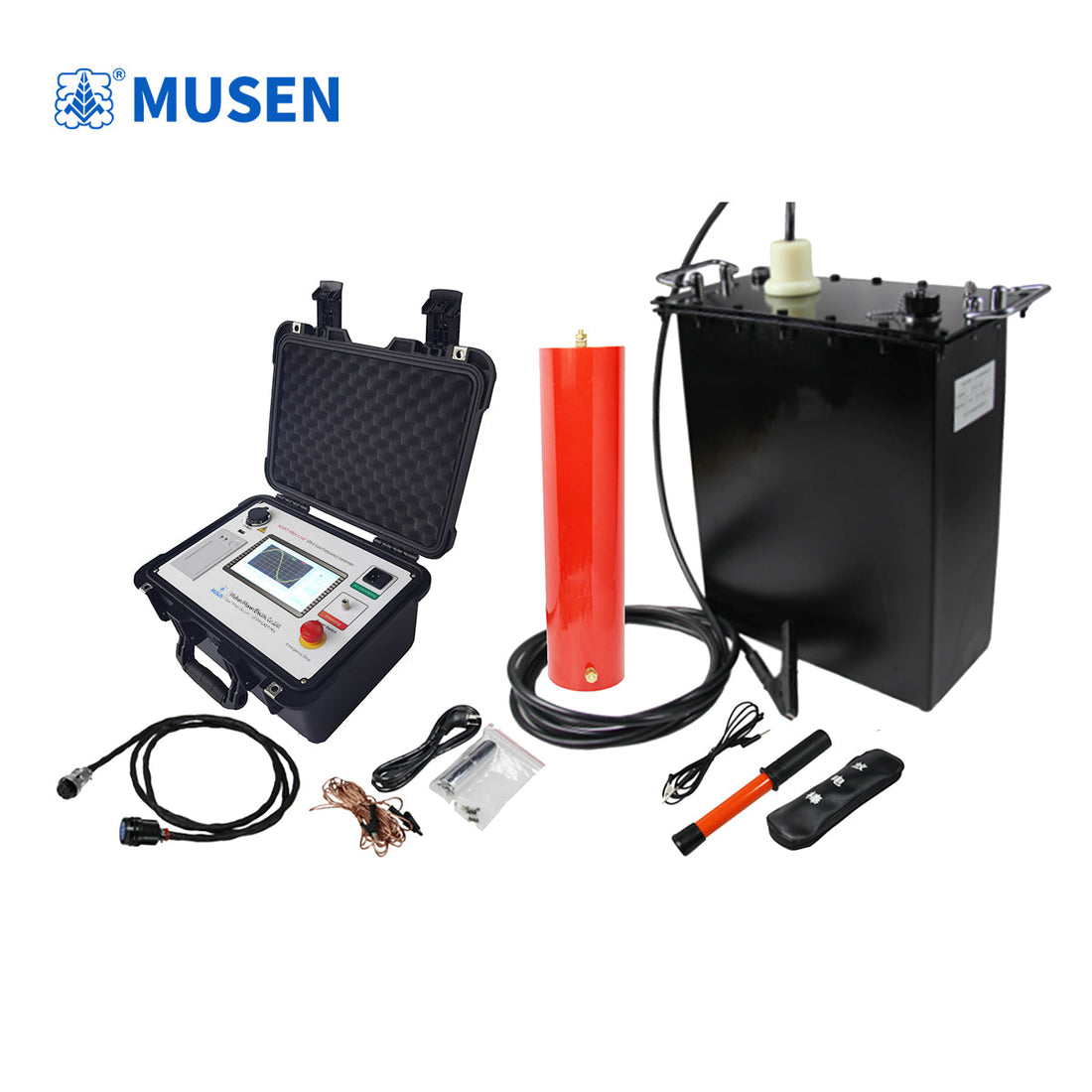

Why is the 0.1Hz VLF Hipot Tester the Safest Choice for High Capacitance Cable Testing?

1. Why is VLF Technology Essential for Modern Power Cable Diagnostics?

In the realm of global power engineering, the transition from traditional DC testing to Very Low Frequency (VLF) methods has become a technical mandate. For overseas utility providers managing aging infrastructure, the VLF Hipot Tester serves as a non-destructive diagnostic powerhouse.

Unlike DC stress which can aggravate "water trees" in XLPE insulation, the 0.1Hz sinusoidal waveform provides a realistic simulation of operational AC stress. This method is specifically engineered for high-capacitance loads—such as long-run submarine cables and large-scale industrial motors—where standard 50/60Hz equipment would be prohibitively bulky and power-intensive.

2. How Does 0.1Hz Testing Ensure Reliability in High-Capacitance Assets?

Efficiency in dielectric testing is governed by the formula $I = 2\pi fCV$. By reducing the frequency ($f$) to 0.1Hz, the current ($I$) required to energize a large capacitor ($C$) is reduced by a factor of 600 compared to power-line frequencies. This allows the VLF Hipot Testerto remain portable while delivering high-voltage output.

For engineers at Musen Electric, this means the ability to conduct a thorough VLF Insulation Tester sweep on multi-kilometer cable runs using a single, compact unit. This structural advantage reduces site mobilization costs and enhances the precision of dielectric strength assessments for generators and motors. 3. What Are the Technical Advantages of Musen Electric's VLF Solutions?

Wuhan Musen Electrical Co., Ltd. (www.musenelectric.com) integrates decades of power engineering expertise into every diagnostic set. Our equipment is designed to withstand the rigorous environments of overseas substations while maintaining laboratory-grade accuracy.Advanced Digital Control: Utilizing digital frequency conversion and microcomputer automation for seamless voltage regulation and measurement.

Rapid Response Protection: Dual-side over-current and over-voltage protection triggers in ≤10ms, ensuring the safety of both the operator and the expensive assets under test.Operational Safety: Photoelectric isolation between the controller and high-voltage generator guarantees maximum safety in high-EMI environments.Precision Output: The high/low voltage closed-loop negative feedback circuit ensures the output remains unaffected by the "capacitance effect," yielding a pure 0.1Hz sine wave.Data Integration: Equipped with capacitive touch screens and automatic thermal printing for immediate on-site reporting and digital storage.Variable Frequency Range: Supports 0.1Hz, 0.05Hz, and 0.02Hz frequencies to accommodate varying cable lengths and insulation types.

4. Frequently Asked Questions (FAQ)

Can a VLF Hipot Tester replace standard AC resonance testing?

For most distribution-level cables and rotating machinery, yes. It provides the benefits of AC stress testing without the massive power requirements of resonance systems, making it the industry standard for field maintenance.

What is the benefit of the 0.02Hz frequency setting?

When testing exceptionally long cable runs that exceed the capacitance limit of 0.1Hz, dropping to 0.05Hz or 0.02Hz allows the VLF Hipot Tester to energize the load safely without losing waveform integrity.

Is the equipment suitable for harsh climate conditions?

Yes. Our units are engineered for portability and durability, with integrated protection circuits that operate reliably in diverse global environments, from humid tropical substations to dry industrial zones.

How does Musen Electric support international clients?

Through our portal at www.musenelectric.com, we provide comprehensive technical documentation, remote calibration support, and equipment configurations that comply with localized power grid standards.
