Why is Tan Delta Testing Essential for High Voltage Asset Management?

Dielectric Loss Test Kit, Tan Delta Tester, Insulation Diagnostic Equipment, HV Bushing Testing, Musen Electric

 Discover how a professional Dielectric Loss Test Kit prevents catastrophic power failures. Learn the technical standards for insulation diagnosis and how Musen Electric’s advanced Tan Delta Testers ensure grid reliability.

1. How Does a Dielectric Loss Test Kit Identify Hidden Insulation Defects?

In the field of high-voltage engineering, visual inspections are insufficient for determining the internal health of power assets. A professional Dielectric Loss Test Kit serves as a "medical scanner" for electrical insulation. By measuring the dissipation factor (tanδ), engineers can quantify the energy dissipated as heat within the dielectric material. An increase in this value is a definitive data point indicating moisture ingress, chemical aging, or oil carbonization. For global utility providers, this measurement is the primary line of defense against unplanned outages in transformers, reactors, and high-voltage bushings.

2. Why is Anti-Interference Technology Critical in Modern Substations?

Conducting precise measurements in energized EHV (Extra-High Voltage) environments is notoriously difficult due to electromagnetic noise. To achieve laboratory-grade accuracy on-site, advanced test sets utilize frequency shift technology. By operating at frequencies such as 45Hz or 55Hz, the system effectively isolates the test signal from the 50/60Hz grid interference. This ensures that the data reflected by the Dielectric Loss Test Kit represents the true physical state of the insulation, rather than environmental noise, allowing for the detection of minute changes in the dielectric constant.

3. How Does CVT Self-Excitation Testing Streamline Field Maintenance?

Capacitor Voltage Transformers (CVTs) present unique challenges for traditional testing methods due to their integrated design. Modern diagnostic solutions now incorporate CVT self-excitation functions. This allows technical teams to measure the capacitance and tanδ of both C1 and C2 sections simultaneously with a single lead connection. Furthermore, the ability to perform 10kV reverse-connection measurements while the CVT busbar remains grounded significantly reduces downtime and labor costs, as there is no requirement to disconnect high-voltage leads.

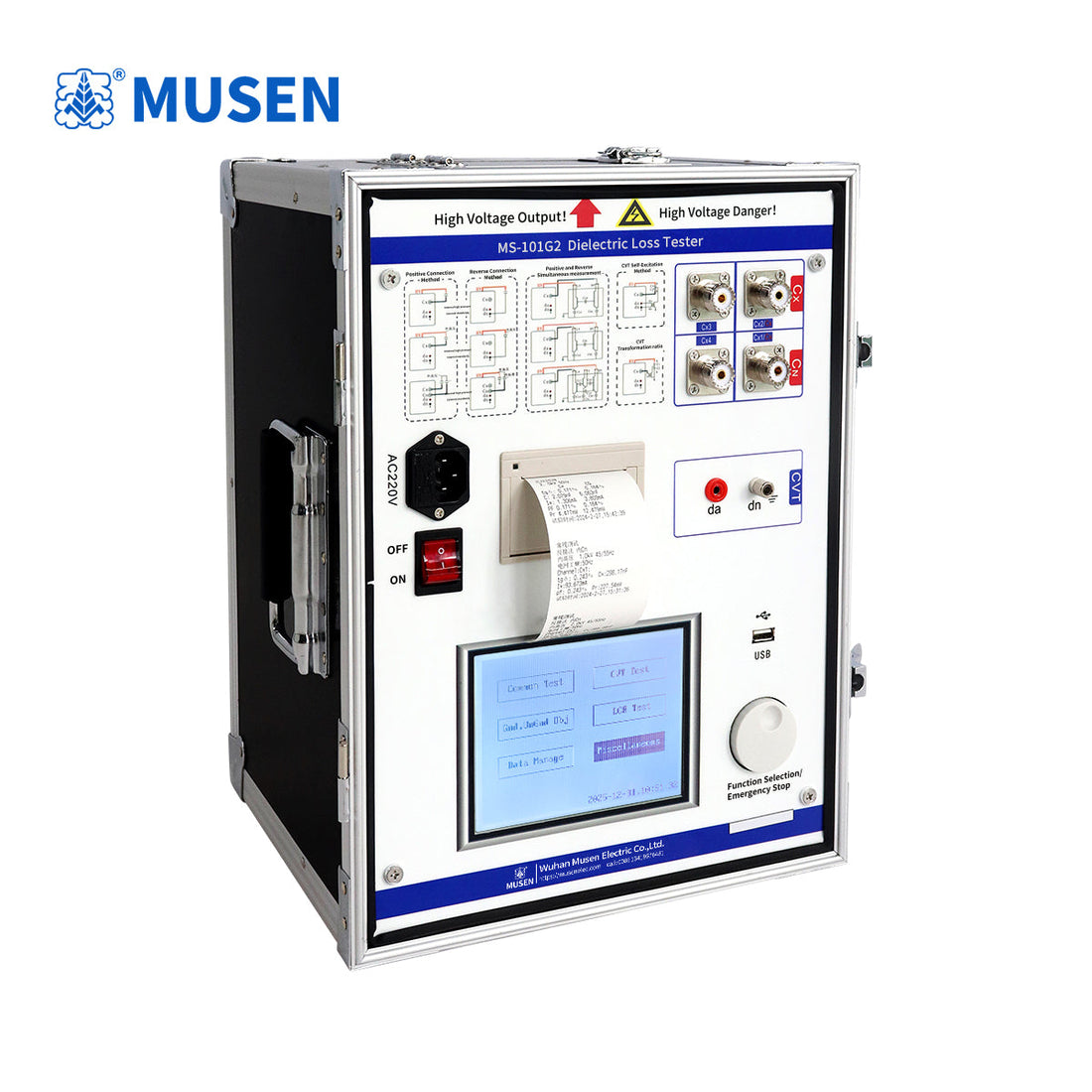

4. What are the Technical Specifications of Musen Electric Systems?

As an industry leader, Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) provides high-precision instrumentation designed for rigorous international standards. Our systems integrate multiple diagnostic layers into a single portable platform:

• Integrated CVT Analysis: Simultaneous measurement of capacitance and Tgδ for C1/C2 via self-excitation.

• Advanced Grounding Support: Reverse-connection low-voltage and high-voltage shielding for grounded busbar scenarios.

• Ratio Measurement: Specialized capability for 35kV to 500kV CVT voltage ratio assessment (Optional).

• Multi-Channel Efficiency: Four-channel synchronous measurement to reduce total testing time by 75%.

• Comprehensive Insulation Suite: Includes Polarization Index (PI), Dielectric Absorption Ratio (DAR), and high-range insulation resistance (Optional).

• LCR Functionality: Automatic measurement of Inductance (L), Capacitance (C), and Resistance (R) for auxiliary components (Optional).

5. Can a Single Dielectric Loss Test Kit Replace Multiple Diagnostic Tools?

The trend in overseas power engineering is moving toward "Integrated Asset Diagnostics." A high-end Dielectric Loss Test Kit is no longer limited to tan delta alone. By incorporating LCR measurement and insulation resistance modules, a single technician can perform a full-spectrum evaluation of a transformer's dielectric system. This data-centric approach provides a more authoritative "health score," allowing maintenance managers to prioritize capital expenditure based on actual equipment degradation rather than fixed time intervals.

6. Frequently Asked Questions (FAQ)

Q1: How do environmental factors like humidity affect the tan delta results? High humidity can lead to surface leakage, which artificially inflates the dielectric loss reading. It is recommended to clean the bushing surfaces and use a dedicated "guard" terminal to bypass surface currents, ensuring the test kit measures only the internal insulation quality.

Q2: What is the significance of capacitance changes during a dielectric test? While tan delta measures the quality of the insulation, capacitance measures physical integrity. A change in capacitance exceeding 2-3% often indicates mechanical movement, such as winding deformation in a transformer or the failure of individual capacitor elements in a CVT.

Q3: Is frequency conversion testing safe for all high-voltage equipment? Yes. Frequency conversion technology (shifting away from 50/60Hz) is a non-destructive testing method. It uses the same voltage levels as power-frequency tests but provides superior noise rejection, making it the preferred standard for IEEE and IEC-compliant field testing.

Q4: Can this equipment be used for testing generator stator windings? Absolutely. The multi-channel and high-capacity measurement capabilities make it ideal for large capacitive loads like generator windings and long-run high-voltage cables.
