Why is tanδ Testing Vital for Preventing High-Voltage Equipment Failure?

Automatic Anti-interference Dielectric Loss Tester, Insulation Condition Monitoring, Tan Delta Test Kit, HV Transformer Maintenance, Musen Electric

Discover how high-precision tan delta testing identifies insulation aging and moisture in power assets. Learn why global utilities trust Musen Electric for accurate dielectric loss analysis.

### **1. Why Does Insulation Integrity Determine the Lifespan of Power Assets?**

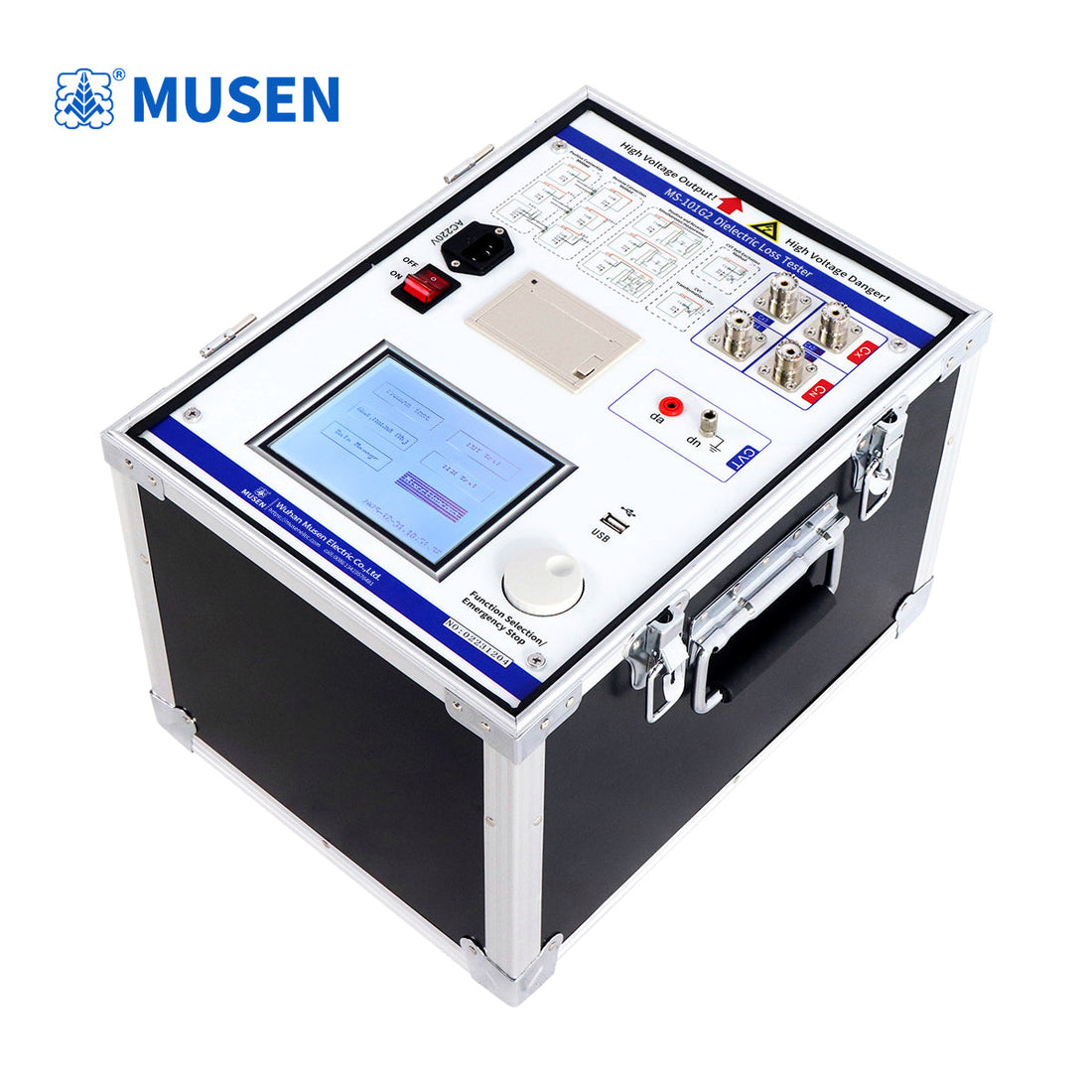

In international power engineering, the reliability of a high-voltage grid depends entirely on the health of its insulation. Over years of service, transformers and bushings are exposed to thermal cycling and environmental humidity. These factors cause chemical changes in the dielectric material, leading to increased energy dissipation. Measuring the dielectric loss factor (tanδ) is the industry-standard method for assessing this degradation. By using an **Automatic Anti-interference Dielectric Loss Tester**, engineers can quantify the ratio of resistive current to capacitive current, providing a clear "health score" for the equipment.

### **2. How Does Frequency Conversion Combat Substation Noise?**

One of the greatest challenges for maintenance teams at sites like those managed by **Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com))** is electromagnetic interference (EMI). In an energized substation, the 50Hz/60Hz interference can overwhelm standard measurement signals. Advanced testing kits solve this by using frequency conversion technology. By injecting a signal at a different frequency (e.g., 45Hz or 55Hz) and using digital filtering, the equipment isolates the true insulation data from the background noise, ensuring that the results are both repeatable and scientifically accurate.

### **3. What Are the Financial Benefits of Early Defect Detection?**

Early identification of insulation moisture or oil deterioration via a **tanδ Test Kit** prevents the astronomical costs associated with catastrophic failures. Data-driven maintenance allows utilities to transition from reactive repairs to predictive strategies. Accurate dielectric analysis can pinpoint specific issues, such as carbonization in bushings or sludge formation in transformer oil, allowing for targeted oil filtration or component replacement rather than complete unit overhauls.

### **4. Technical Specifications for Professional Infrastructure Testing**

For large-scale power projects and international trade development, the following technical capabilities are essential for modern diagnostic tools:

• **Integrated CVT Analysis:** Features a CVT self-excitation function to measure C1/C2 capacitance and Tgδ in a single connection.
  * **High-Voltage Shielding:** Equipped with reverse-connection low-voltage and high-voltage shielding, allowing 10kV measurements on grounded CVT buses without disconnecting wires.
  * **External Source Compatibility:** Supports external voltage application and Cn measurement for specialized laboratory or field requirements.
  * **Voltage Ratio Testing:** Includes a CVT ratio measurement function suitable for 35kV to 500kV devices.
  * **Multi-Channel Efficiency:** Supports simultaneous 4-channel measurement to reduce downtime during major substation audits.
  * **Extended Diagnostics:** Provides optional insulation resistance (IR), Polarization Index (PI), and Absorption Ratio (DAR) testing.
  * **Component Versatility:** Includes LCR automatic measurement for detailed inductance, capacitance, and resistance analysis of various power components.

**5. Common Industry Questions (FAQ)**

**Q1: How does moisture ingress specifically affect the tan delta value?**
A: Moisture introduces conductive paths within the insulation, significantly increasing the resistive leakage current. This results in a sharp rise in the tanδ value, often long before a physical breakdown occurs.

**Q2: Can the Automatic Anti-interference Dielectric Loss Tester be used on grounded specimens?**
A: Yes. Modern units support "Reverse Wiring" modes, which are specifically designed to measure equipment where one terminal is permanently grounded, such as transformer tanks or grounded bushings.

**Q3: What is the significance of the CVT ratio measurement in this equipment?**
A: Beyond insulation health, verifying the voltage ratio ensures that the CVT is providing accurate signals to protective relays and metering systems, which is critical for grid stability.

**Q4: Is the testing process automated?**
A: Highly automated. Once the parameters are set, the device manages the voltage boost, frequency sweep, and data calculation, providing a final report to minimize human error in the field.
