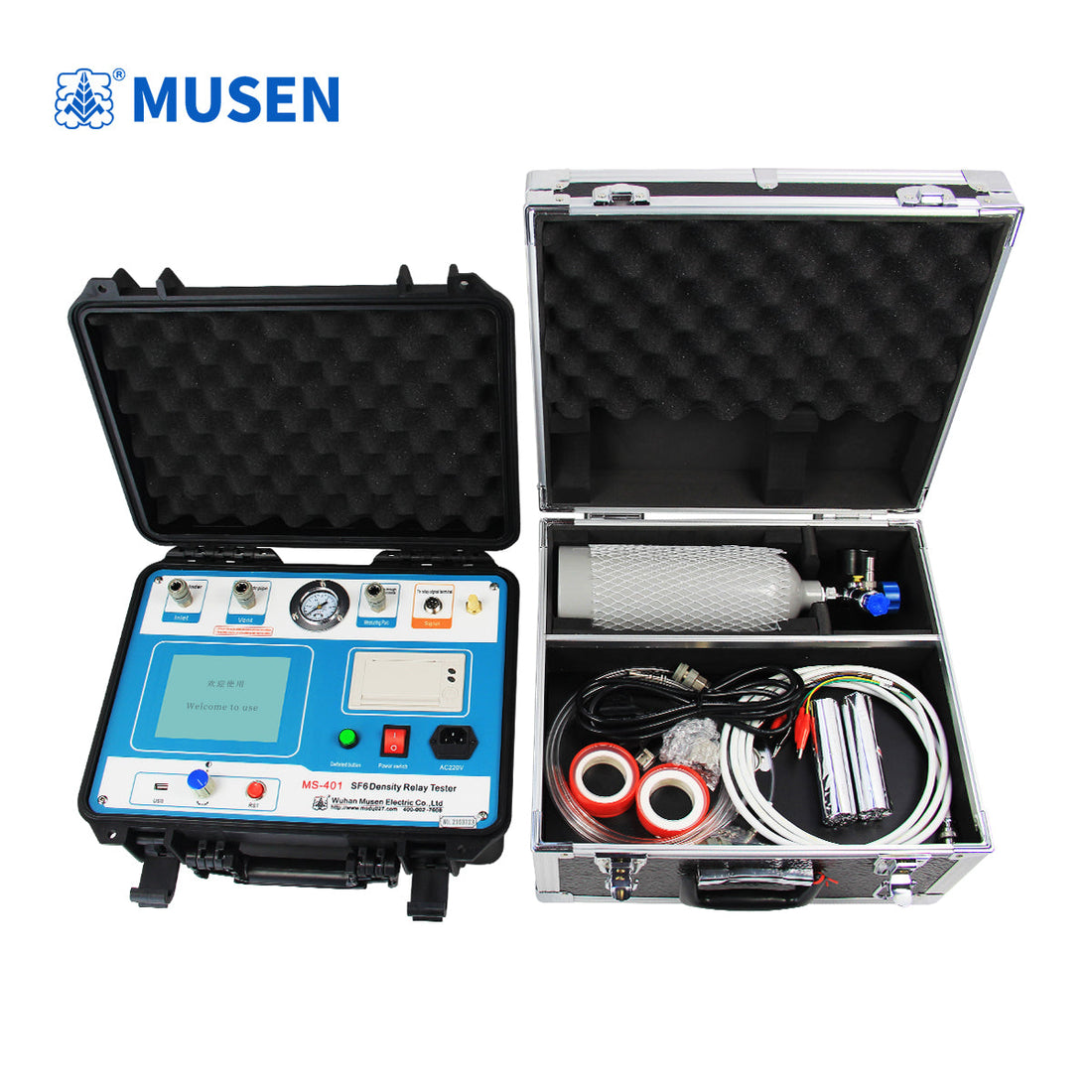

SF6 Gas Density Relay Calibrator, SF6 Relay Testing, Musen Electric, Substation Maintenance, Gas Density Monitor

1. How Does SF6 Density Affect Substation Operational Safety?

In high-voltage electrical infrastructure, Sulfur Hexafluoride (SF6) gas serves as a critical insulation and arc-extinguishing medium. However, its effectiveness is entirely dependent on maintaining specific density levels. Unlike standard pressure gauges, a SF6 Gas Density Relay Calibrator is required to verify that the relay correctly compensates for temperature variables. Accuracy in these readings is the primary line of defense against flashovers and equipment damage in Gas Insulated Switchgear (GIS).

2. Why Focus on Alarm and Interlock Reset Values?

Precision during maintenance is not just about the trigger point; it is about the recovery. A professional SF6 Gas Density Relay Calibrator must accurately capture the alarm value, interlock value, and their respective reset values. If the reset value—the point at which the system acknowledges a return to safe pressure—is miscalibrated, the protection logic may fail to clear, leading to "nuisance" alarms or preventing the circuit breaker from operating during a critical restoration phase.

3. Can Modern Calibration Minimize Substation Downtime?

Efficiency in field operations is a priority for global power utilities. Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) develops testing solutions that prioritize speed without sacrificing metrological traceability. Advanced kits allow for both single-interlock and double-interlock measurement processes, adapting to various complex protection schemes found in international power grids. By utilizing a SF6 Gas Density Relay Calibrator, technicians can perform comprehensive diagnostic checks in a fraction of the time required by legacy manual methods.

4. How to Achieve High-Precision Results in Extreme Field Conditions?

 Field environments are rarely ideal, often involving extreme temperatures that can skew mechanical gauge readings. To ensure data integrity, professional instruments must provide dual-functionality: ambient temperature pressure gauge calibration and standard 20°C pressure gauge calibration. This structured data approach ensures that every measurement is normalized to industry standards, providing a clear, authoritative record of the equipment’s health for asset management databases.

5. Essential Technical Specifications for Engineering Teams For procurement officers and lead engineers at power utilities, the following functional parameters represent the industry benchmark for SF6 maintenance equipment: 6. Frequently Asked Questions (FAQ)

Q: Can the calibrator test SF6 relays without removing them from the switchgear?

A: Yes. The unit is designed with multiple specialized transition joints, allowing for in-situ testing on most major switchgear brands, which significantly reduces the risk of gas leakage and air infiltration.

Q: Does the device support automated data recording?

A: Modern units from Musen Electric feature internal memory and micro-printers, ensuring that all calibration data is captured and documented for EEAT-compliant maintenance records.

Q: What is the significance of the "Reset Value" in relay testing?

A: The reset value determines when the relay contacts return to their original state after gas pressure is restored. It is vital for ensuring the protection system resets correctly after a maintenance or refill operation.

Q: Is the instrument suitable for use in high-altitude or extreme cold regions? A: The device includes high-precision temperature sensors that automatically compensate for environmental variables, ensuring accuracy from -20°C up to +60°C.
