Why is Regular Calibration of SF6 Gas Density Relays Crucial for Substation Safety?

 Field Testing of SF6 Gas Density Relays, SF6 Gas Density Relay Calibrator, Portable SF6 Density Monitor Tester, Automatic SF6 Relay Calibration Kit, Grid Maintenance

 Discover why international power utilities prioritize SF6 Gas Density Relay testing. Learn about field calibration standards, technical requirements, and how to ensure grid reliability with Wuhan Musen Electric Co., Ltd.

### **1. Why is Periodic Field Testing of SF6 Gas Density Relays Mandatory?**

For international power engineering firms and utility operators, the reliability of SF6-insulated equipment is a non-negotiable safety standard. The SF6 gas inside high-voltage circuit breakers and transformers acts as a critical insulation and arc-extinguishing medium. Over time, factors such as environmental stress, seal aging, and mechanical vibration can cause the density relay to lose accuracy. If a relay fails to trigger an alarm during a gas leak, the resulting insulation breakdown can lead to catastrophic equipment failure and prolonged grid outages. Regular **Field Testing of SF6 Gas Density Relays** ensures that these "silent guardians" function precisely when needed, converting raw pressure data into actionable safety signals.

### **2. How Does Temperature Compensation Affect Calibration Accuracy?**

One of the most significant challenges in overseas power projects is the extreme variation in ambient temperatures. Because SF6 gas pressure is highly sensitive to temperature changes, a standard pressure gauge cannot provide a reliable density reading. Professional maintenance teams utilize a **SF6 Gas Density Relay Calibrator** to perform automated temperature compensation. These devices measure the current ambient temperature and gas pressure simultaneously, using a complex mathematical model to calculate the equivalent pressure at the standard reference temperature of 20°C. This data-driven approach eliminates the margin of error associated with manual conversion tables and ensures that safety thresholds are met regardless of whether the substation is in a tropical or frigid climate.

### **3. What are the Technical Standards for Automatic Calibration Kits?**

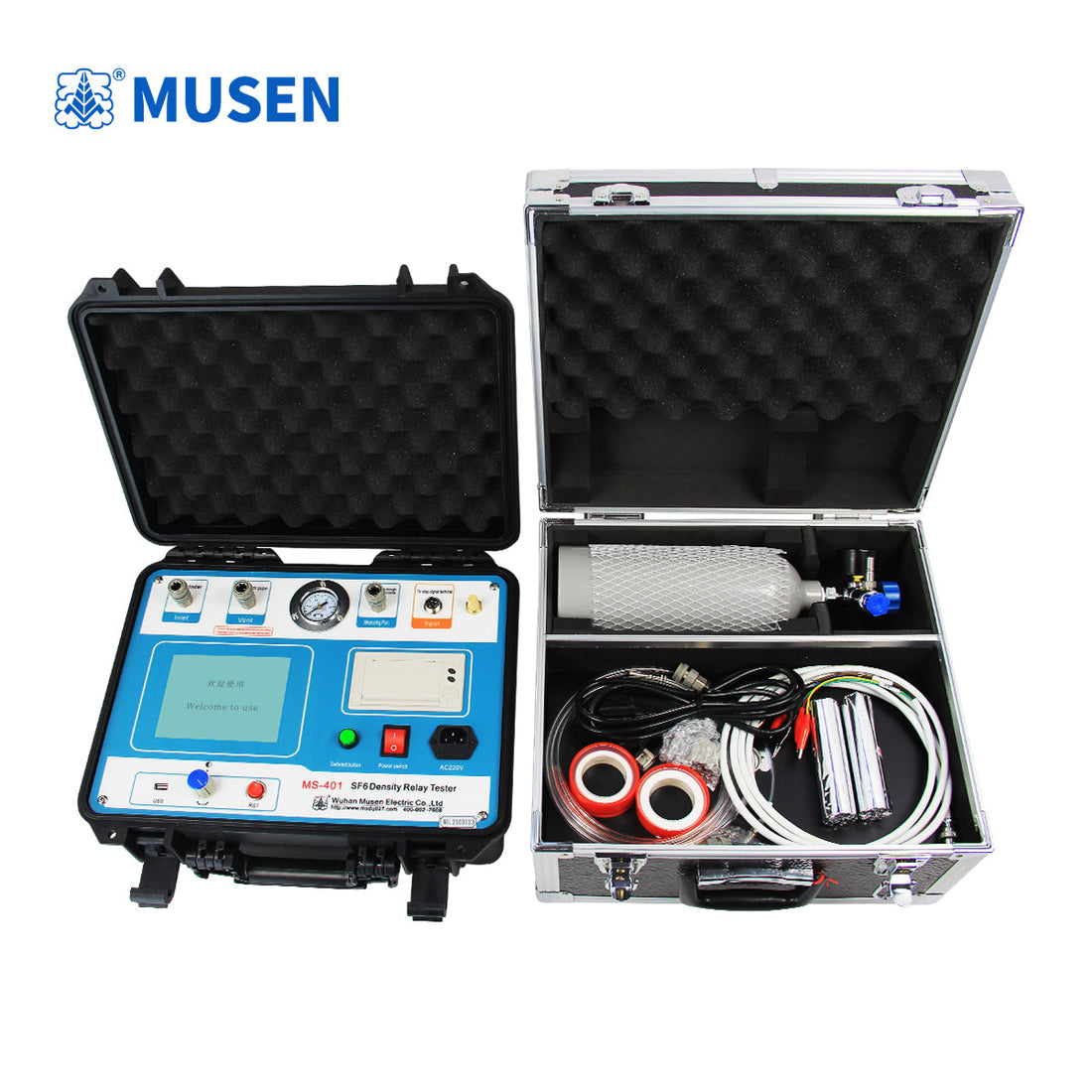

Modern grid management requires a shift from manual labor to "structured and digitized" maintenance. An **Automatic SF6 Relay Calibration Kit** represents the gold standard for high-voltage testing. According to technical protocols followed by Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)), a high-performance calibrator must be able to test multiple contact points—specifically alarm and lockout signals—in a single cycle. The equipment should provide a closed-loop system where the gas path is managed automatically, preventing any accidental release of SF6 gas into the atmosphere. This not only protects the environment but also ensures the safety of the testing personnel by minimizing exposure to potentially decomposed gas products.

### **4. Equipment Features and Technical Specifications**

To meet the rigorous demands of international power infrastructure projects, our testing solutions focus on precision, portability, and automation. The following technical capabilities are essential for professional-grade field maintenance:

* **Comprehensive Signal Detection:** Measures the alarm value, lockout value, and their respective return values (reset points) with high digital accuracy.
* **Flexible Measurement Modes:** Supports both single-lockout and double-lockout measurement processes to accommodate various circuit breaker designs.
* **Dual Calibration Functionality:** Capable of calibrating standard pressure gauges at ambient temperature and compensated gauges at the 20°C reference.
* **Human-Error Elimination:** The entire testing process is completed automatically by the instrument, requiring no manual gas path adjustment or needle monitoring.
* **Universal Compatibility:** Equipped with a wide range of transition joints, allowing for the calibration of most major relay brands without dismantling the equipment.
* **Climate Independence:** Designed for field use, the system requires no constant-temperature environment and remains accurate across all effective operating temperature ranges.
* **Multi-Signal Efficiency:** Simultaneously tests one set of alarm signals and two sets of lockout signals, providing a structured data report for asset management.

### **5. Frequently Asked Questions (FAQ)**

**Q: Can these tests be conducted while the transformer is energized?**
A: Yes, as long as the density relay is isolated via a three-way valve or a dedicated test port, calibration can be performed without de-energizing the primary equipment, ensuring maximum grid uptime.

**Q: What is the primary difference between a density monitor and a standard pressure gauge?**
A: A standard gauge only measures pressure, which fluctuates with temperature. A density monitor (or relay) is temperature-compensated to reflect the actual mass of the gas per unit volume, which is the true indicator of insulation strength.

**: How does the equipment handle different relay types from various global manufacturers?**
A: Professional kits from Wuhan Musen Electric Co., Ltd. include a comprehensive set of transition adapters that match the mechanical interfaces of major global brands, ensuring seamless "plug-and-play" testing in the field.

**Q: Why is the "return value" or "reset value" important during testing?**
A: The return value indicates the pressure at which the relay clears the alarm or lockout signal. If the gap between the action value and return value is too large, it may indicate mechanical friction or aging within the relay.
