Why is Precision SF6 Gas Moisture Analysis Critical for High-Voltage Switchgear?

 SF6 Trace Moisture Analyzer, SF6 Gas Testing, High Voltage Circuit Breaker Maintenance, Dew Point Measurement, SF6 Gas Quality

  Is your SF6 gas moisture level within safe limits? Learn how precise moisture analysis prevents corrosion and equipment failure in high-voltage circuit breakers. Technical insights from Musen Electric.

1. Why Does Moisture Content Threaten High-Voltage Grid Stability?

In high-voltage electrical engineering, Sulfur Hexafluoride (SF6) is the premier medium for insulation and arc quenching. However, the presence of water vapor is a silent threat. When an electrical arc occurs during circuit interruption, SF6 decomposes into various fluorides. In a dry environment, these typically recombine, but in the presence of H2O, they form highly corrosive hydrofluoric acid (HF) and sulfur dioxide (SO2). These byproducts cause irreversible damage to internal components and insulators, leading to potential dielectric breakdown and catastrophic equipment failure.

2. What Are the Global Standards for SF6 Gas Moisture Limits?

For overseas power engineering projects, adhering to IEC and IEEE standards is non-negotiable. Most international standards require moisture content in new equipment to be less than 150 ppmv. For in-service equipment, the safe operating limits typically range between 200 and 500 ppmv, depending strictly on the voltage class and specific utility protocols. Maintaining these levels ensures the longevity of Gas-Insulated Switchgear (GIS) and circuit breakers.

3. How to Achieve Accurate Measurements in Field Conditions?

Precision in the field requires specialized hardware that can withstand the unique chemistry of SF6. A high-performance SF6 Trace Moisture Analyzer allows technicians to obtain rapid, stable readings of dew point and volume fraction (ppmv).

• Sensor Selection: Capacitive thin-film polymer sensors are preferred for their resistance to chemical contaminants and rapid response times (90% response in under 5 minutes).

• Measurement Range: Reliable instruments must cover a dew point range of -80 °C to +20 °C with a minimum accuracy of ±2 °C.

• Material Integrity: To avoid "false positive" readings caused by ambient moisture, the sampling path must use stainless steel or PTFE (Teflon) tubing, as standard rubber hoses absorb and desorb water.



4. What Technical Features Define an Industrial-Grade SF6 Analyzer?

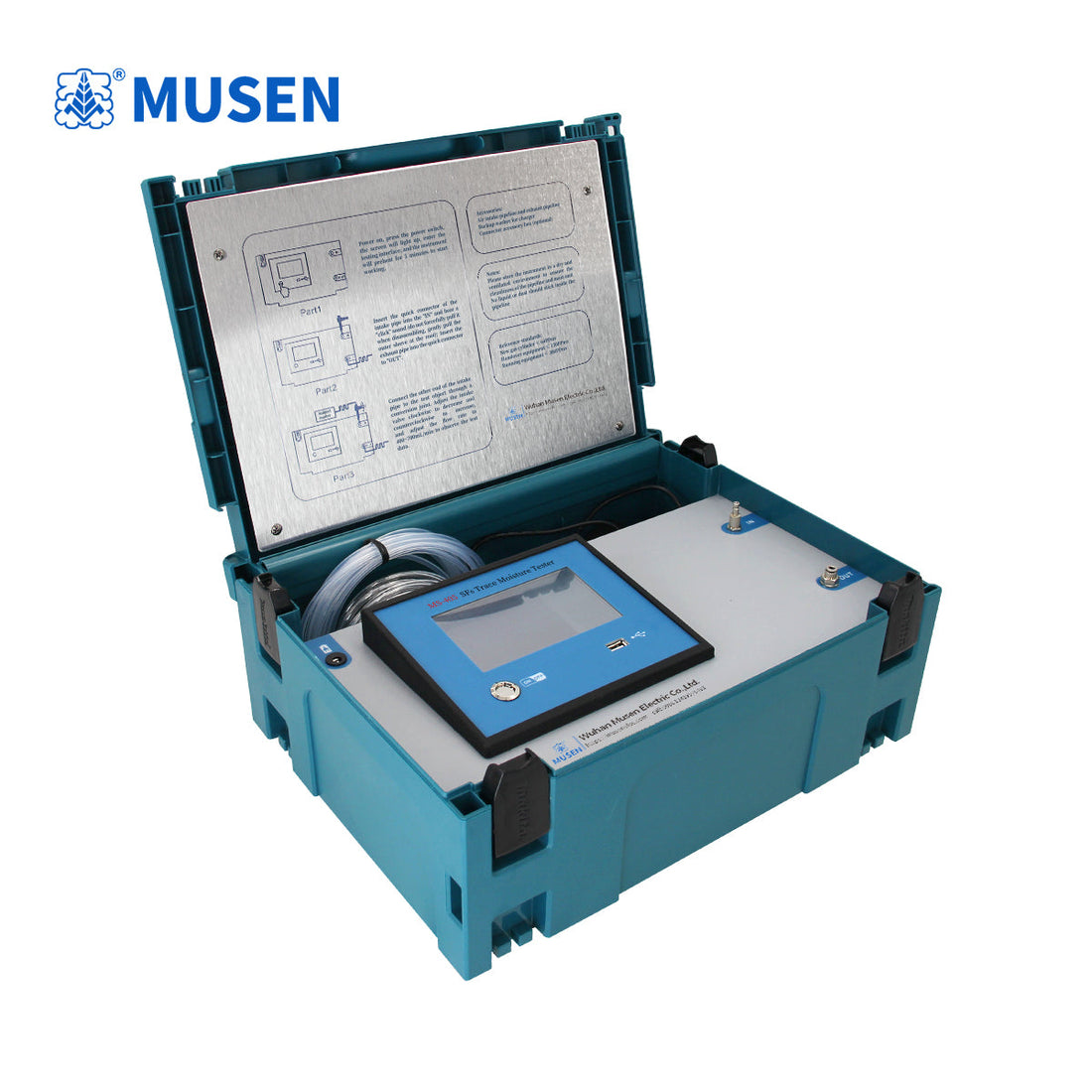

Professional equipment designed by specialized manufacturers like Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) integrates advanced software and hardware to ensure data integrity. The SF6 Trace Moisture Analyzer provided for international power grid maintenance includes:

• Measurement Method: Resistance-capacitance principle utilizing high-stability sensors (such as the Vaisala DMT series).

• Precision Design: Full-channel polymer material path to eliminate moisture "wall-hanging" and ensure rapid testing speeds.

• Flow Control: Integrated oil-free stainless steel adjustment valves to maintain constant pressure and flow without contaminating the gas sample.

• Advanced Algorithms: Software-driven self-calibration and pressure conversion to meet strict documentation standards.

5. Frequently Asked Questions (FAQ)

• Why is dew point measured instead of relative humidity? Dew point is independent of pressure fluctuations, providing a more reliable metric for assessing pressurized gas systems like GIS.

• How often should SF6 gas be tested for moisture? Utility protocols generally suggest testing every 3 to 5 years, or immediately following significant switching operations or suspected leaks.

• Can moisture be removed without replacing the SF6 gas? Yes, specialized gas processing units (recyclers) can circulate the gas through molecular sieve desiccant beds to reduce moisture to acceptable levels.
