Why is Precise SF6 Gas Leak Detection Critical for High Voltage Breaker Safety?

 SF6 Gas Leak Detector, Infrared SF6 Gas Analyzer, High Voltage Circuit Breaker Maintenance, SF6 Leakage Troubleshooting, Power Plant Safety Equipment
Meta Description: Discover how professional SF6 Gas Leak Detection ensures the reliability of high-voltage systems. Learn the methods for locating, quantifying, and repairing leaks to prevent insulation failure and environmental impact.

 1. How Does SF6 Gas Leakage Impact High Voltage Grid Stability?

In modern electrical infrastructure, Sulfur Hexafluoride (SF6) serves as the primary insulation medium for gas-insulated switchgear (GIS) and high-voltage circuit breakers. However, the integrity of these systems is often compromised by aging seals or mechanical stress. Even a microscopic leak can lead to a significant drop in dielectric strength, potentially causing catastrophic flashovers. Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) emphasizes that proactive monitoring using a high-precision **SF6 Gas Leak Detector** is the only way to maintain the 99.9% reliability required by international utility standards.

 2. Can Infrared Technology Accurately Pinpoint Hidden Leakage Sources?

Traditional pressure gauges only indicate that a leak exists; they cannot tell you where it is. To solve this, engineering teams now utilize an **Infrared SF6 Gas Analyzer**. This technology leverages the specific light-absorption characteristics of SF6 molecules to visualize gas plumes in real-time. By scanning flanges, bushings, and welded joints from a distance, technicians can identify "hot spots" of leakage without de-energizing the equipment. This data-driven approach reduces troubleshooting time by over 70% compared to manual bubble-testing methods.

 3. What Are the Best Practices for Quantifying Leak Rates On-Site?

Once a leak is located, the next critical step is determining the leakage rate to prioritize repair schedules. A **Quantitative SF6 Gas Leakage Tester** is employed to measure the parts-per-million (ppm) concentration. For overseas power projects, following a structured "Locate-Measure-Repair" workflow is essential. If the leak exceeds 1% of the total gas volume per year, immediate mechanical intervention is required. Using high-tier sensors ensures that environmental variables like wind speed and humidity do not skew the concentration data, allowing for an authoritative assessment of the breaker’s health.

 4. Professional Equipment Capabilities for Power Utility Maintenance

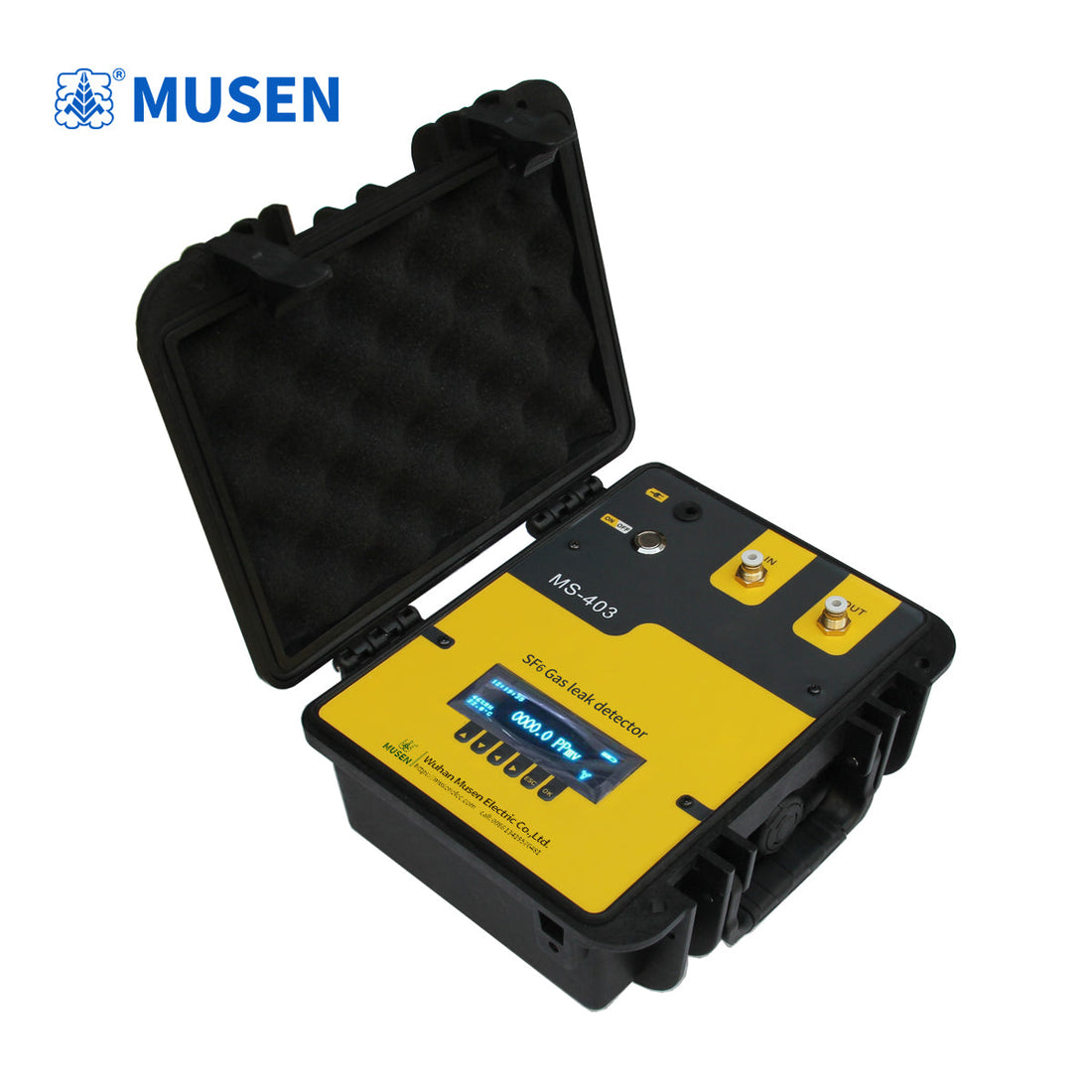

To meet the rigorous demands of global power engineers, the testing equipment must offer more than just basic detection. Wuhan Musen Electric provides professional-grade solutions with the following technical specifications:

*   **Dual Detection Mode:** Capable of both qualitative "sniffing" and quantitative analysis of SF6 concentrations.
*   **High-Precision Localization:** Rapidly identifies exact failure points in complex GIS architectures.
*   **Multi-Data Integration:** The integrated display shows SF6 concentration, ambient temperature/humidity, battery life, and pump status simultaneously.
*   **NDIR Sensor Core:** Utilizes premium Non-Dispersive Infrared sensors (German-imported) for long-term stability.
*   **Rapid Response Time:** Reaches stable data output within 10 seconds with high repeatability.
*   **Dynamic Compensation:** Features built-in pressure and temperature compensation for accurate readings in diverse climates ranging from -20°C to +50°C.

 5. Frequently Asked Questions Regarding SF6 Leakage Management

**Q1: What is the primary cause of SF6 leaks in high-voltage breakers?**
Most leaks occur at the interface points, specifically aging O-rings, corroded flange surfaces, or vibration-induced loosening of gas filling valves.

**Q2: How sensitive should a professional leak detector be?**
For utility-grade maintenance, the device should have a minimum detection limit of 1 ppm or 1 x 10^-6 mbar.l/s to catch leaks before they trigger low-pressure alarms.

**Q3: Can NDIR sensors distinguish SF6 from other ambient gases?**
Yes, Non-Dispersive Infrared sensors are highly selective to the SF6 molecule’s absorption wavelength, ensuring there are no false positives from moisture, hydrocarbons, or cleaning agents.

**Q4: Is it necessary to replace the gas after a leak is repaired?**
If the leak was significant, the gas should be tested for moisture and decomposition products (like SO2) before topping up to ensure the insulation quality meets IEC standards.
