1. Why Must Utilities Prioritize Advanced Relay Testing Equipment?

In modern power grids, the transition from electromagnetic relays to microprocessor-based systems has redefined maintenance protocols. For international electrical contractors and utility operators, Relay Testing Equipment is no longer just a verification tool but a strategic asset for preventing catastrophic grid failures. High-speed microcomputer protection systems require precise signal synchronization to validate complex logic settings. Utilizing a professional Relay Tester allows engineers to confirm that protective elements—such as distance, differential, and overcurrent—operate within the strict millisecond windows required by international standards like IEC 60255.

2. How Does Fault Simulation Improve Protection Relay Test Set Accuracy?

The reliability of a Protection Relay Test Set is measured by its ability to replicate the unpredictable nature of field faults. Power systems encounter three primary fault types that must be simulated during commissioning:

• Transient Faults: Often caused by environmental factors; testing ensures auto-reclosers function without permanent lockout.

• Permanent Faults: Requires the protection system to isolate the feeder and prevent equipment damage.

• Evolving Faults: Complex scenarios where a single-phase fault develops into a multi-phase event.

  By integrating high-fidelity waveform playback, modern equipment allows for "Group Tests" which evaluate the entire protection chain rather than isolated components.

3. What Technical Specifications Define Professional Grade Testing Units?

For engineering firms sourcing from Wuhan Musen Electric (www.musenelectric.com), technical data is the foundation of trust. Professional systems are characterized by:

• Output Precision: Current and voltage error margins below 0.2% for high-burden relays.

• Phase Synchronization: Real-time adjustment of phase angles (0 to 360°) to simulate vector shifts in transformers.

• Amplifier Technology: Preference for modular linear power amplifiers over switching types to eliminate harmonic noise that can trigger false positives in sensitive microcomputer logic.

4. MS-1200C Series: Engineered for Global Power Projects

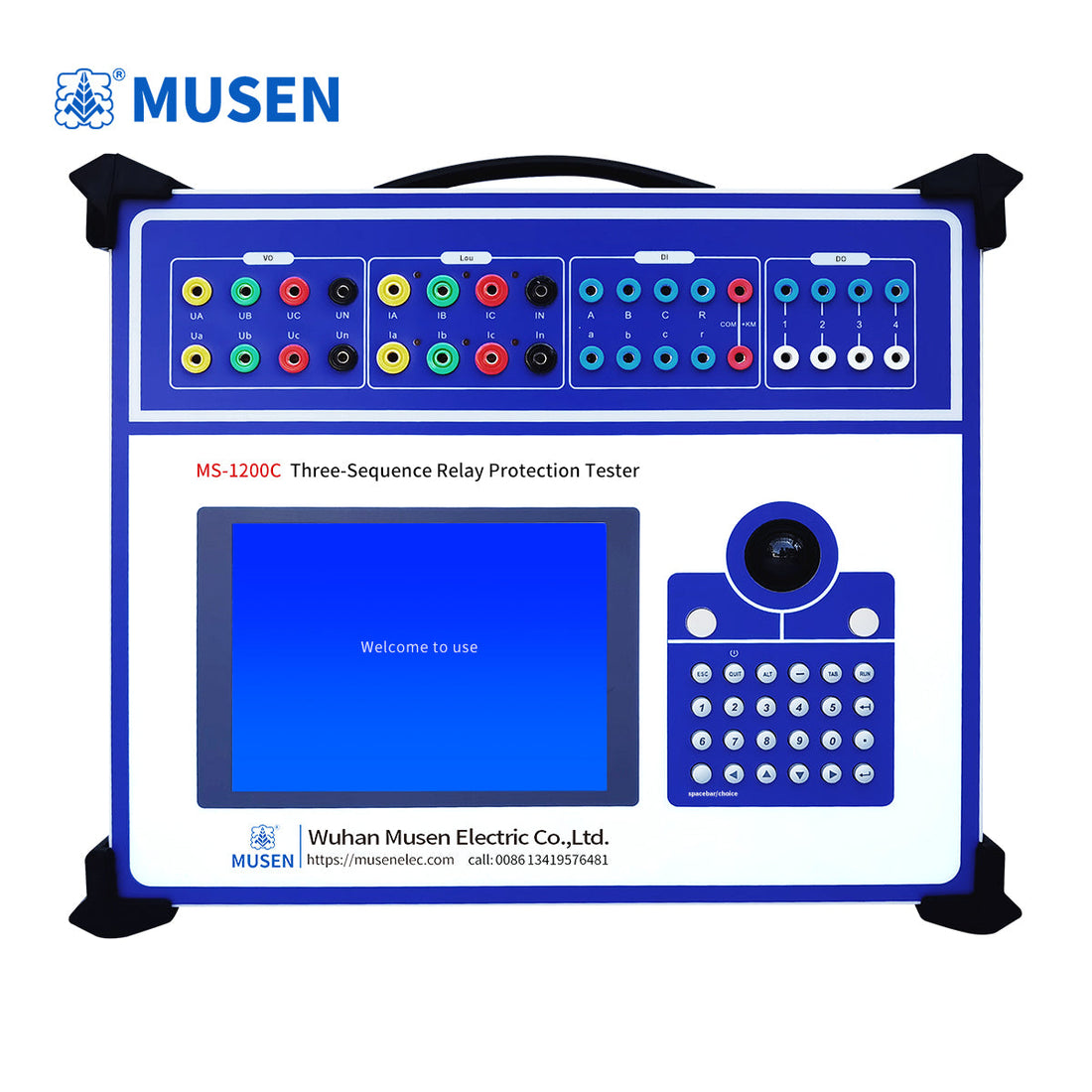

Wuhan Musen Electric provides the MS-1200C, a versatile platform designed for comprehensive relay verification:

• 6-Phase Flexibility: Delivers 6-phase voltage and 6-phase current output, allowing for simultaneous testing of differential protection on three-winding transformers.

• Multi-Mode Output: Compatible with 4-phase voltage/3-phase current and 12-phase output modes to support legacy and next-generation relay architectures.

• Dual-Control Architecture: Features a standalone embedded system for rugged field use and an external PC interface for complex software-driven analysis.

• Integrated DC Power: Built-in adjustable 110V/220V DC source to power the relay under test, simplifying on-site wiring.

• Signal Integrity: Utilizes high-reliability linear power modules to ensure pure sine wave injection for microcomputer protection units.

5. Frequently Asked Questions (FAQ)

Q: Can your Relay Testing Equipment simulate COMTRADE recorded faults?

A: Yes, our systems support the import of standard IEEE COMTRADE files, allowing engineers to play back real-world disturbance records for precise forensic analysis.

Q: Does the MS-1200C support 3-Phase Relay Tester legacy modes?

A: Absolutely. While it is a high-density 6-phase unit, it is fully backward compatible with all standard 3-phase testing protocols used in traditional substations.

Q: Is the software interface available in English for international projects?

A: Wuhan Musen Electric provides a comprehensive English localized software suite designed for the global engineering community, ensuring seamless operation in any region.
