### Why is High-Voltage Cable Testing Equipment Essential for Modern Power Grids?

The reliability of electrical infrastructure relies on the continuous health of insulation materials. Power engineering professionals and utility operators face the challenge of identifying degradation before it leads to severe equipment failure.

### 1. **What Causes Dielectric Degradation in Power Cables?**

Power cables are subjected to continuous electrical, thermal, and mechanical stresses during operation. Environmental factors such as high humidity, extreme temperatures, and chemical exposure cause polymer or paper insulation to degrade. Over time, micro-cracks and moisture ingress can reduce the dielectric strength, increasing the risk of short circuits or ground faults. Monitoring this deterioration is critical for preventing unscheduled outages and expensive repairs. To maintain grid integrity, an **insulation tester for cables** is deployed for regular diagnostic assessments.

### 2. **How Do Testing Principles Identify Insulation Faults?**

The fundamental principle of insulation testing involves applying a direct current (DC) voltage to a cable conductor and measuring the leakage current. According to Ohm's Law, the resistance value is derived from the ratio of the applied voltage to the resulting current. High-quality insulation exhibits high resistance, whereas degraded insulation results in higher leakage currents. A high-voltage DC signal allows the instrument to charge the capacitive load of long cables, ensuring a stable, accurate measurement of the insulation resistance.

3. **What Are the Core Diagnostic Metrics for Cable Testing?**

Evaluating the health of a cable requires more than a single spot-reading of resistance. Engineers utilize parameters like the Dielectric Absorption Ratio (DAR) and the Polarization Index (PI). The DAR compares readings taken at 30 seconds and one minute, while the PI compares readings taken at one minute and ten minutes. Modern testing instruments, such as an **insulation tester for cables**, automate these calculations. A low PI or DAR value signals potential moisture contamination or material degradation that requires immediate attention.

### 4. **How to Select the Right Testing Equipment?**

Selecting the appropriate testing instrument depends on the voltage rating and the length of the cable under test. For standard distribution lines, a versatile **insulation tester for cables** with a 5kV or 10kV output is typically necessary to overcome high capacitive charging currents. Technicians should also look for high anti-interference capabilities, enabling accurate measurements in active substations where electromagnetic noise is high. Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) supplies highly accurate and robust testing instruments designed to meet these stringent operational requirements.

### 5. **What Safety and Operational Procedures Prevent Hazards?**

Safety is paramount during high-voltage operations. Before starting, the cable must be completely isolated from the grid, discharged of any residual energy, and grounded. Technicians must wear appropriate personal protective equipment (PPE). After the test, instruments equipped with an automatic discharge function ensure that the capacitive energy is safely released without requiring manual discharge, protecting operators and preventing equipment damage.

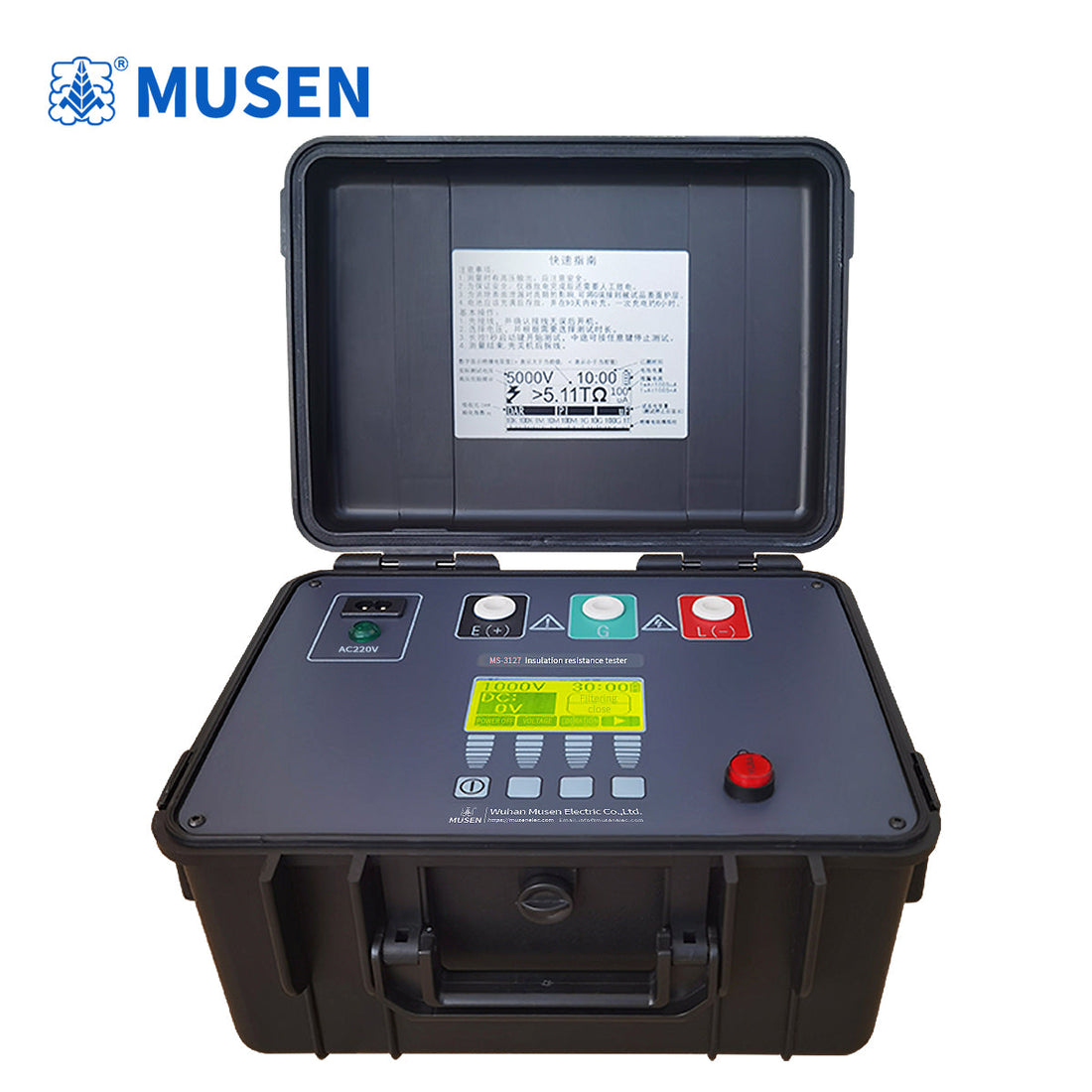

### 6. **Technical Specifications of the Recommended Equipment**

To fulfill the requirements of international power engineering and export standards, the following technical specifications are recommended for advanced insulation testing:
- Output ranges: 500V, 1000V, 2500V, 5000V, and 10000V, testing resistance up to 10TΩ.
- Insulation resistance range: 10TΩ at 10kV with a short-circuit current of up to 10mA.
- Automatic display: Polarization Index (PI) and Dielectric Absorption Ratio (DAR), including leakage current and capacitance measurement.
- Anti-interference performance: Maintains precision even with 2mA interference current.
- Rapid automatic discharge: Safe discharge for capacitive samples, eliminating manual discharge.
- Dual power supply: Li-ion battery backup providing up to 4 hours of continuous operation at 10000V.
- Continuous operation: Battery charges while in use, with automatic switching between AC and DC power during outages.

### 7. **Frequently Asked Questions (FAQ)**

- Why is the Polarization Index (PI) important for cable maintenance?
The Polarization Index indicates whether moisture or contamination is present in the insulation. A low PI suggests degradation or humidity absorption, which can lead to catastrophic breakdowns.

- How does electromagnetic interference affect high-voltage testing?
Electromagnetic fields from adjacent active lines can induce noise, creating fluctuating readings. Advanced testing equipment employs filtering and shielding to eliminate this noise.

- When should I use a 5000V test voltage?
A test voltage of 5000V or higher is recommended for medium and high-voltage cables and large capacitive apparatus to properly stress the dielectric material and obtain accurate resistance values.

- How does automatic discharging improve safety?
Long cables store significant capacitive energy. Automatic discharge removes this dangerous voltage, protecting the operator from electrical shock and preventing damage to the device.

### 8. **Conclusion**

Regular testing and maintenance of high-voltage cables are vital to the stability of the power grid. By deploying modern testing instruments, utility companies and engineering firms can preemptively address dielectric degradation and ensure long-term operational safety.
