1. What Defines Reliable On-Load Tap Changer Performance?
The On-Load Tap Changer is the only moving part within a power transformer, making it the most susceptible to mechanical wear and electrical erosion. For global power utilities, maintaining this component is not merely about routine checks; it is about high-fidelity data capture. A failure during the switching cycle—often lasting less than 200 milliseconds—can trigger internal arcing and catastrophic gas evolution. Modern engineering standards require a dedicated OLTC Tester to visualize the switching sequence with microsecond precision, ensuring that transition resistors and moving contacts operate within strict design tolerances.
2. Precision Waveform Analysis via High-Frequency Sampling
Identifying latent defects such as contact bouncing or spring fatigue requires more than basic resistance readings. An advanced OLTC Tester utilizes high-frequency sampling (10KHz) to record the transition waveform. This allows engineers to detect "micro-breaks" in the circuit that slower equipment would miss. By analyzing the continuity of the current during the tap change, maintenance teams at Musen Electric recommend looking for smooth, uninterrupted curves which signify healthy mechanical synchronization across all three phases.
3. Quantitative Metrics for Transformer Health
In international power engineering, data-driven decisions are paramount. The diagnostic process focuses on three core metrics: Transition Time, Transition Resistance, and Phase Synchronization. If the resistance values deviate from the nameplate specifications, it usually indicates carbonization of the oil or oxidation of the copper-tungsten tips. Utilizing a professional OLTC Tester ensures these values are captured under load-simulated conditions, providing a true reflection of the transformer's operational integrity.

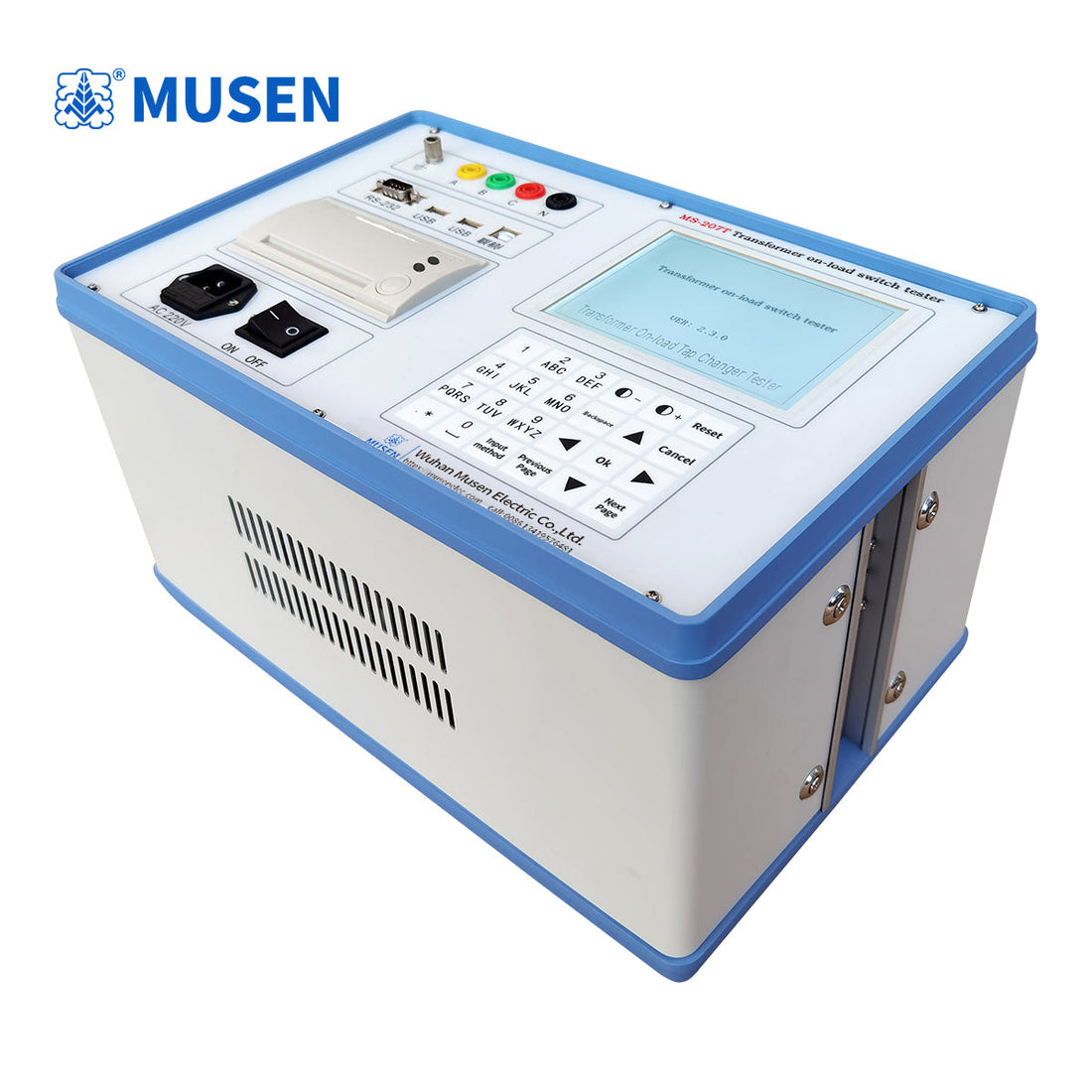

4. Musen Electric: Technical Specifications and Product Parameters
Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) provides industrial-grade diagnostic solutions designed for the rigors of substation environments. Our equipment is engineered to deliver laboratory-grade accuracy in high-interference fields.
| Technical Feature | Performance Data |
|---|---|
| Output Current | ≥1A, 3-Channel Simultaneous Output |
| Data Sampling | 6-Channel Independent Acquisition |
| Sampling Frequency | 10KHz/s High-Resolution Capture |
| Resistance Range | 0.5Ω ～ 20Ω (Transition Resistance) |
| Time Measurement | ≤250ms (Transition Duration) |
5. Frequently Asked Questions (FAQ)
Q1: Why is 10KHz sampling necessary for OLTC testing?
High-speed sampling is required to capture the extremely fast transients and "chatter" of mechanical contacts. Lower sampling rates may smooth out critical errors, leading to a false "pass" result.
Q2: What does a transition time exceeding 250ms indicate?
Typically, this indicates mechanical sluggishness caused by aged lubricants, weakened drive springs, or mechanical obstructions in the diverter switch.
Q3: Can the tester measure all three phases at once?
Yes, professional units utilize 3-channel current output to ensure synchronization analysis across all phases, which is vital for preventing circulating currents during the tap change.
Q4: How does transition resistance affect transformer oil?
If resistance is too high, it generates excessive heat during the tap change, causing the transformer oil to crack and produce combustible gases like acetylene.
