1. Why Does SF6 Purity Directly Impact Grid Reliability?

In high-voltage electrical engineering, the dielectric strength of Sulfur Hexafluoride (SF6) is the foundation of arc quenching. When the concentration of SF6 drops due to air infiltration or moisture, the insulation properties of Gas Insulated Switchgear (GIS) are compromised. Utilizing a professional Sf6 Purity Tester is not merely a maintenance task; it is a critical safety protocol to prevent catastrophic flashovers. Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) provides advanced diagnostic tools that ensure your gas purity remains above the 97% threshold required by international IEC standards.

2. How Does NDIR Technology Enhance Measurement Accuracy?

The technical shift toward Non-Dispersive Infrared (NDIR) sensors has redefined gas analysis. Unlike electrochemical sensors that degrade over time, an SF6 Gas Purity Analyzer equipped with NDIR technology offers long-term stability and high resistance to "sensor poisoning" from arc decomposition products. This optical measurement method ensures that readings remain consistent even in the harsh electromagnetic environments of active substations. For utility operators, this translates to lower recalibration costs and higher confidence in field data.

3. What Are the Technical Requirements for Field Gas Testing?

Field engineers face unique challenges, including fluctuating ambient temperatures and the need for rapid deployment. A high-quality SF6 Concentration Meter must account for these variables through integrated pressure and temperature compensation software. By digitizing the measurement process, maintenance teams can achieve laboratory-grade results in minutes, allowing for immediate decision-making regarding gas reclamation or top-ups.

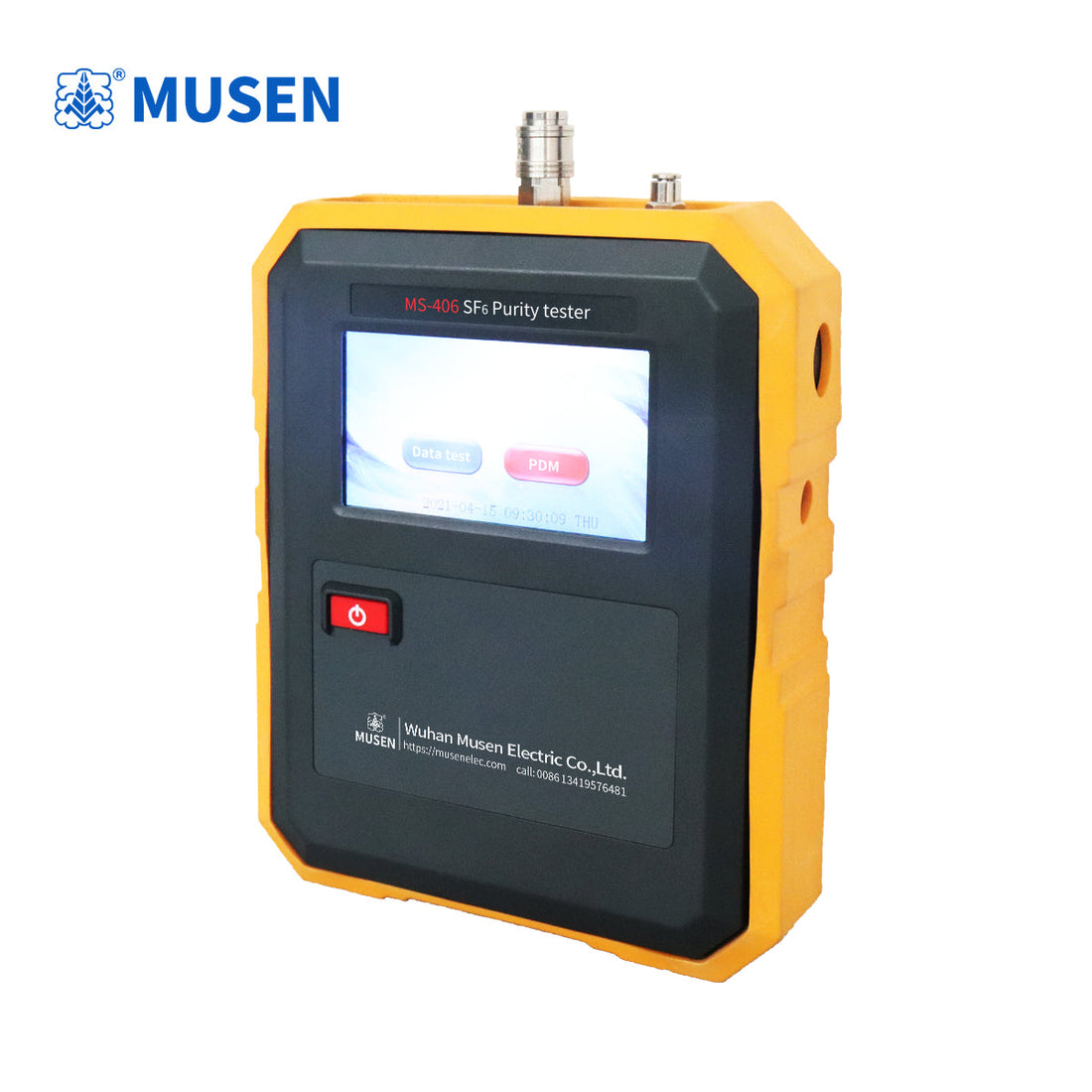

4. Key Performance Specifications of Musen Electric Analyzers

To meet the rigorous demands of global power projects, our instrumentation incorporates several proprietary technical advantages:

• Self-Calibration Technology: The sensor probe features an automated zero-point calibration routine. This function effectively eliminates systematic errors caused by sensor drift, ensuring the absolute accuracy of every test cycle without requiring external reference gases.

• Rapid Analysis & Gas Conservation: Efficiency is vital in the field. Our system enters the measurement state immediately upon power-on, completing a full purity determination in approximately 2 minutes, significantly reducing the volume of gas discharged during testing.

• High-Integrity Self-Locking Joints: We utilize premium imported self-locking gas connectors. These components ensure a hermetic seal during the sampling process, preventing any accidental leakage of SF6 into the atmosphere or atmospheric contamination of the sample.

5. Frequently Asked Questions (FAQ)

Q1: What is the recommended purity level for energized GIS equipment?

According to CIGRE and IEC guidelines, SF6 gas purity should ideally be maintained above 97%. If the purity drops below this level, the risk of insulation failure during high-stress switching operations increases significantly.

Q2: Can this equipment be used for both GIS and Power Transformers?

Yes. Any electrical asset utilizing SF6 as an insulating or arc-extinguishing medium can be monitored using a high-precision Sf6 Purity Tester.

Q3: How does the self-calibration feature benefit the end-user?

It removes the "human error" factor and the need for frequent factory service. The device adjusts its baseline automatically, which is essential for maintaining E-E-A-T (Experience, Expertise, Authoritativeness, and Trustworthiness) standards in your technical reporting.

Q4: Is the analyzer compatible with different gas pressure levels?

The device is designed to handle standard GIS tank pressures. The internal regulation system ensures the sensor receives a steady flow of gas regardless of the equipment’s internal pressure.
