For international power plant operators and electrical commissioning firms, the stability of the grid relies on the precision of protection schemes. A high-performance Protective Relay Test System is not merely a tool but a critical safeguard for simulating real-world electrical disturbances.
1. How Does a Relay Test Set Handle Complex Grid Faults?
Modern electrical engineering demands more than basic functional checks. Field engineers at global utility companies require a Relay Test Set that replicates transient, permanent, and conversion faults. Transient faults, often caused by lightning or swaying lines, require the system to verify the relay's ability to trigger an auto-reclosure. Conversely, permanent fault simulation ensures the protection logic successfully locks out the circuit to prevent catastrophic equipment failure.
2. What Are the Technical Benchmarks for Secondary Current Injection?
Accuracy in a Secondary Current Injection Test Kit is measured by its ability to maintain stable waveforms under high burden. Professional-grade equipment must offer:
- Phase Synchronization: Precise timing for differential and distance protection tests.
- Harmonic Superposition: Essential for testing transformer inrush current blocking features.
- Logic Recognition: Intelligent identification of potential and dry contacts for seamless breaker simulation.
3. Why Choose Wuhan Musen Electric for Microcomputer Protection Verification?
As a leading authority in power testing, Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) provides hardware that bridges the gap between laboratory precision and rugged field performance. Our Relay Tester solutions are engineered to meet international standards, ensuring that microcomputer protection devices are calibrated for maximum reliability in high-voltage substations.

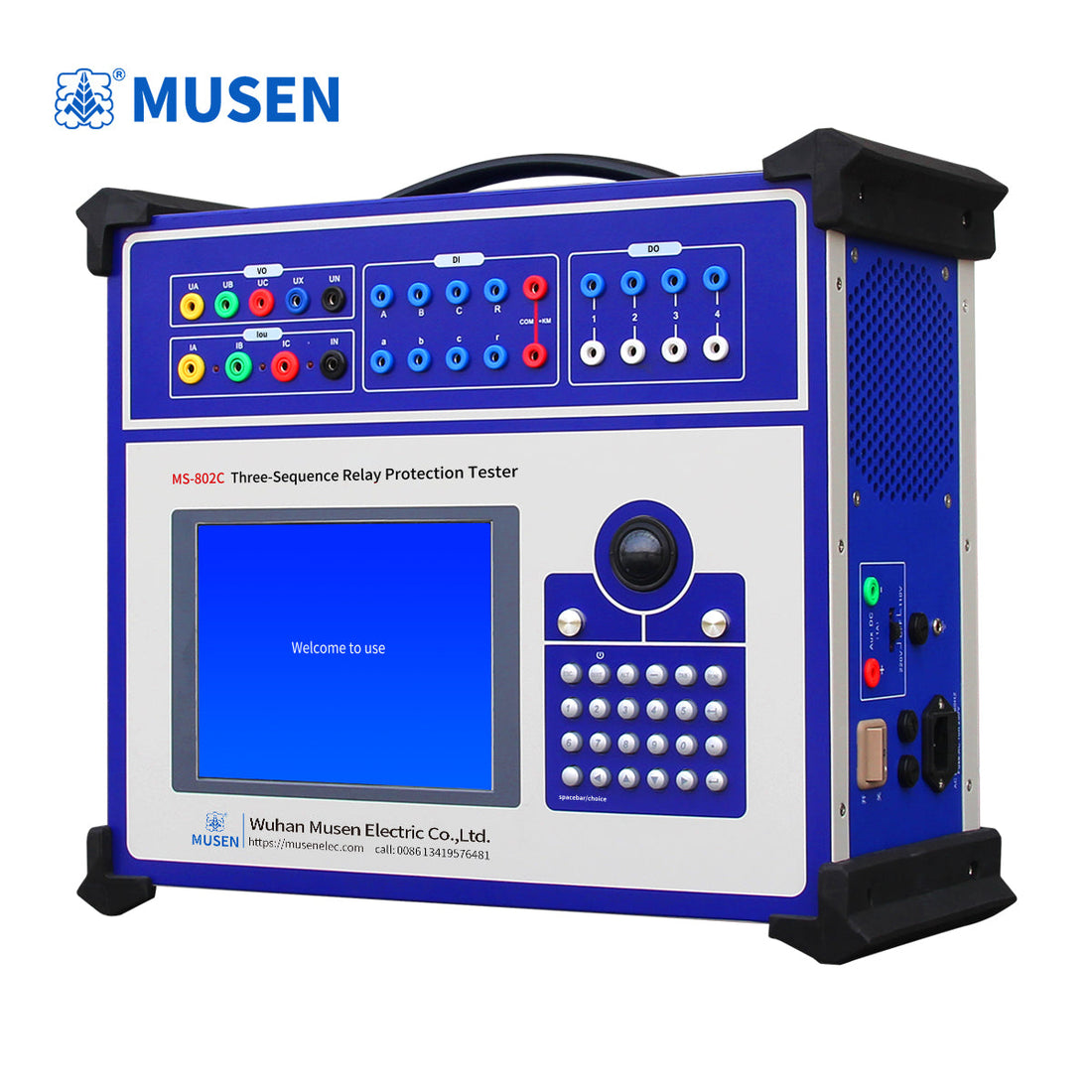

MS-802C Relay Test Set: Technical Specifications
The MS-802C is a flagship model utilized in large-scale automated verification tasks:
| Feature | Performance Data |
|---|---|
| Output Configuration | Standard 4-Phase Voltage & 3-Phase Current |
| Maximum Output | 120V per phase / 120A (Three phases in parallel) |
| Binary Interface | 8 Inputs (Auto-identify 0-250V) / 4 Outputs |
| Specialized Testing | 3-Phase Differential, ATS, & Sync Reclosure |
The MS-802C supports complex whole-group tests, simulating instantaneous and conversion faults for comprehensive system validation.
4. Frequently Asked Questions (FAQ)
Q1: How do you perform a "Group Test" for line protection?
A Group Test involves simulating the complete sequence of a fault. The test set provides the fault current, waits for the relay trip signal, simulates the breaker opening, and then simulates the reclosing pulse to see if the relay stabilizes or trips again based on the fault type.
Q2: What is the benefit of the 4-Phase voltage output?
The fourth voltage phase (Ux) is typically used as a residual voltage or a synchronization voltage, which is vital for testing directional relays and reclosers that require a reference voltage from the other side of the breaker.
Q3: Can the system be used for ATS (Automatic Transfer Switch) testing?
Yes. Due to its rich binary I/O and programmable logic, the MS-802C can simulate the loss of main power and verify the timing and logic of the standby power switching sequence.
Q4: Is the software compatible with international relay brands?
Wuhan Musen Electric designs its systems to be brand-agnostic. Our software supports standard protection curves used by major global manufacturers, ensuring seamless integration into any substation environment.
