1. Why is Battery Capacity the Only Reliable Metric for Backup Power?

In high-voltage substation environments, "float voltage" is a deceptive indicator of health. A battery string can show perfect voltage while possessing nearly zero cranking amps or runtime capacity. To mitigate the risk of catastrophic failure during a grid outage, engineers must utilize a Battery Charge-Discharge Tester to perform a controlled, deep discharge. This process quantifies the actual energy reserves, converting abstract ratings into verifiable data. For international power projects, this transition from "voltage monitoring" to "capacity validation" is the cornerstone of NERC/PRC compliance.

2. How Does Constant Current Discharge Protection Work in Industrial Settings?

Reliable testing requires a Battery Capacity Tester that can maintain a stable current regardless of the declining voltage curve. Utilizing high-precision alloy resistors, modern systems avoid the "red-heat" thermal runaway common in older load banks. By stabilizing the discharge rate, the equipment ensures that the resulting data matches the manufacturer’s discharge tables (e.g., 10-hour or 3-hour rates). This level of precision allows asset managers to predict exactly how many minutes of autonomy remain in their DC systems under peak load conditions.

3. Can Wireless Individual Cell Monitoring Prevent String Collapse?

A battery string is only as strong as its weakest cell. During a discharge test, a single cell dropping below the "end-of-discharge" voltage (typically 1.75V or 1.80V) can jeopardize the entire string. Advanced Battery Load Bank systems now integrate RF wireless modules to track each individual cell's voltage in real-time. This automated data collection eliminates the manual labor of hand-probing cells during a test, significantly increasing safety for personnel and providing a digitized "map" of the battery bank's internal health.

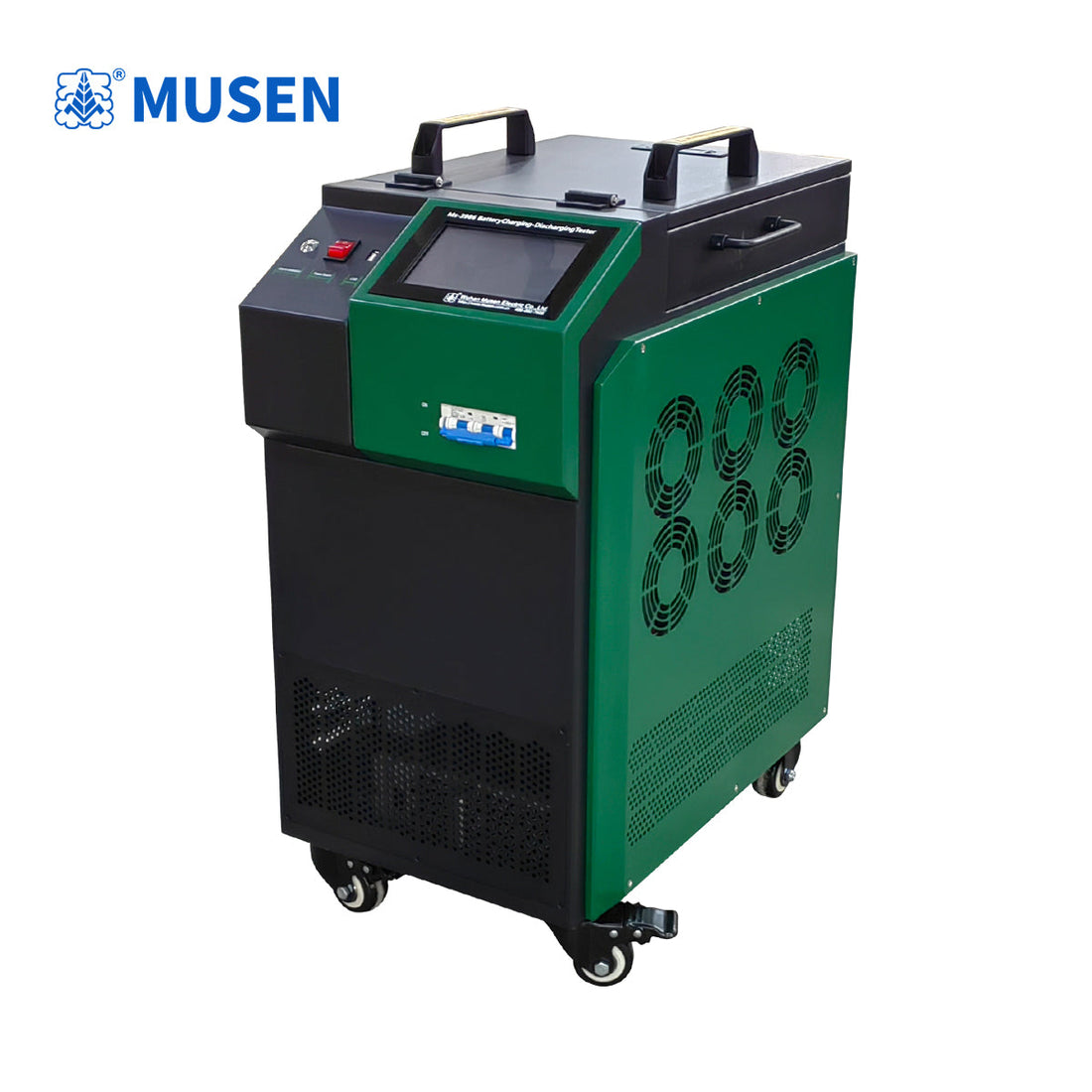

4. What are the Core Technical Advantages of the MS-3986 System?

Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) has engineered the MS-3986 series to meet the rigorous demands of global utility providers. This professional-grade equipment integrates high-voltage versatility with intelligent safety protocols.

• DC220V Full Compatibility: A single unit designed specifically for the DC220V voltage levels common in power transmission and distribution.

• Intelligent Safety Matrix: Automatic protection against over-temperature, over-voltage, and reverse polarity, with mechanical air circuit breakers for physical isolation.

• High-Capacity Scalability: Supports parallel operation of multiple units, allowing for the activation and testing of large-scale industrial battery arrays through a master-slave control interface.

• Precision Data Acquisition: Features wireless collection boxes capable of monitoring up to 300 individual cells simultaneously with dual-mode data visualization (sliding tables and histograms).

5. Frequently Asked Questions (FAQ)

Q: How does the MS-3986 prevent thermal hazards during high-current discharge?

A: It utilizes high-precision, non-red-heat resistors and intelligent over-temperature sensors that automatically terminate the test if thermal thresholds are exceeded.

Q: Can the system monitor individual cells during the charging phase?

A: Yes, the wireless acquisition modules track cell voltage during charging, discharging, and static states to provide a full lifecycle view of the battery.

Q: What happens if a single cell reaches its cutoff voltage before the whole string?

A: The system can be programmed to trigger an alarm or automatically pause the discharge to protect the weak cell from permanent polarity reversal.

Q: Is the data compatible with third-party analysis software?

A: The MS-3986 exports comprehensive data via USB, allowing for detailed report generation and long-term trend analysis in standard CSV or Excel formats.
