Why is an AC DC Hipot Tester Critical for Power Infrastructure Reliability?

AC DC Withstand Voltage Tester, High Voltage Testing Equipment, Insulation Strength Test, Power Cable Testing, Dielectric Strength, Wuhan Musen Electric Meta

Discover why global power utilities rely on professional AC DC Withstand Voltage Testers. Learn about dielectric strength standards, equipment specifications, and safety protocols for high-voltage infrastructure.

1. Why is Dielectric Strength Testing Essential for Global Power Grids?

In the realm of international power engineering, the integrity of insulation is the primary line of defense against catastrophic system failure. A professional AC DC Withstand Voltage Tester is utilized to perform stress tests on electrical components, ensuring they can handle transient overvoltages. For engineering firms and utility providers, this testing is not merely a safety check; it is a critical data-gathering process that quantifies the dielectric strength of materials like cross-linked polyethylene (XLPE), ceramic insulators, and transformer oils. By subjecting equipment to controlled high-voltage stress, technicians at Wuhan Musen Electric help clients identify localized discharge points before they evolve into permanent faults.

2. How Do AC and DC Testing Methods Differ in Field Applications?

Selecting the correct waveform is a technical necessity determined by the capacitive reactance of the test object. An AC DC Withstand Voltage Tester provides the versatility required for diverse international standards (such as IEC 60060). AC testing is the gold standard for switchgear and transformers because it mimics the bipolar stress of operational conditions. Conversely, DC testing is indispensable for high-capacitance assets like long-distance transmission cables. The DC method allows for the measurement of micro-ampere leakage currents, providing a high-resolution "health map" of the insulation without the interference of reactive current.

3. What Are the Key Technical Specifications for High-Voltage Procurement?

For procurement officers and lead engineers, equipment selection must be driven by data and environmental adaptability. Professional-grade AC DC Withstand Voltage Tester systems are evaluated based on their kVA rating and voltage output stability.

• Insulation Mediums: Options include Oil-immersed (robust for permanent labs), Gas-filled/SF6 (lightweight for high-altitude or remote sites), and Dry-type (maintenance-free for indoor use).

• Voltage Range: Standard configurations typically cover 50kV, 100kV, and 150kV tiers.

• Capacity: Scalable from 1.5kVA to 300kVA to accommodate both small components and massive power transformers.

• Safety Integration: Essential features include zero-start interlocks, rapid overvoltage shutdown, and audible alarm systems to protect personnel in high-risk zones.

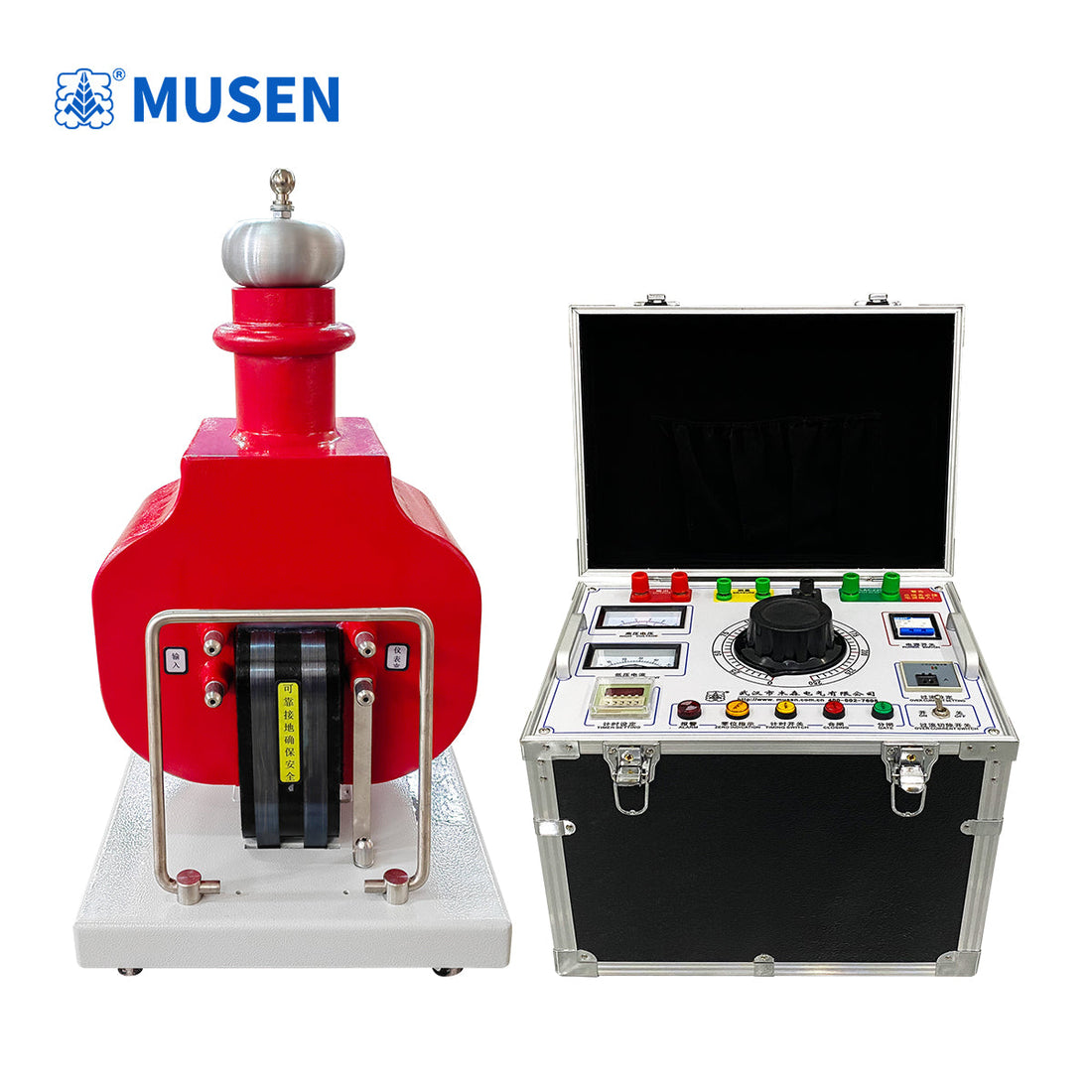

4. Integrated Solution: Wuhan Musen Electric Professional Testing Series

To meet the rigorous demands of modern electrical infrastructure, our equipment is engineered for precision and durability:

• Multi-Functional Performance: Supports power frequency AC withstand, DC withstand, and leakage current testing in a single integrated system.

• Versatile Deployment: Available in oil-immersed, dry, and gas-filled types to suit indoor, high-altitude, and mobile field environments.

• Modular Design: Control units and test transformers are interchangeable, allowing for easy onsite transport and future capacity upgrades.

• Wide Application Scope: Designed for comprehensive insulation strength testing on switchgear, power cables, transformers, insulators, and raw dielectric materials.

• Safety Excellence: Equipped with overcurrent, overvoltage, and zero-position protection mechanisms for stable, long-term operation.

5. Frequently Asked Questions (FAQ) for Power Engineers

Q1: How does ambient humidity affect the accuracy of high-voltage testing? High humidity can increase surface leakage current and lower the breakdown voltage of air gaps. It is recommended to perform tests in environments below 80% humidity or use specialized drying agents and surface cleaning to ensure the AC DC Withstand Voltage Tester provides accurate internal insulation data.

Q2: Can this equipment be used for testing GIS (Gas Insulated Switchgear)? Yes. For GIS testing, the gas-filled (SF6) or high-voltage transformer models are preferred due to their compatibility with the high-voltage requirements and the need for low partial discharge environments.

Q3: What is the significance of the 'Leakage Current' reading during a DC test? The leakage current indicates the volume resistance of the insulation. A stable, low micro-ampere reading suggests healthy insulation, while a rising or fluctuating current often signals moisture ingress or physical deterioration.

Q4: Is the equipment compatible with international power standards? Wuhan Musen Electric designs its systems to meet or exceed IEC (International Electrotechnical Commission) and IEEE standards, ensuring compliance for international engineering projects and tenders.

For more technical documentation and procurement details, please visit our official site at www.musenelectric.com.
