### **1. Understanding the Role of an AC DC Dielectric Strength Tester**

An **AC DC Dielectric Strength Tester** is a specialized diagnostic instrument engineered to measure the maximum voltage an insulating material can withstand before electrical breakdown occurs. In high-voltage environments, such as substations and industrial manufacturing, insulating materials are subjected to continuous electrical stress. Evaluating this property helps prevent catastrophic failures, ensuring the reliability and safety of the entire power grid.

### **2. The Science of Dielectric Breakdown Analysis**

Dielectric breakdown occurs when the electric field applied across an insulating medium exceeds its maximum capacity, causing it to become conductive. During this process, the insulation's molecular structure can suffer permanent physical or chemical damage. Engineers use these testing instruments to apply high voltages, monitor leakage current, and determine the exact breakdown threshold of materials such as polymers, transformer oil, and solid composites.

### **3. Comparison of AC and DC Testing Applications**

High-voltage insulation tests vary depending on the operational environment and the capacitance of the equipment:

* **AC Testing:** Emulates the real-world operational stress of electrical grids, testing the insulation in both polarities and measuring dielectric losses.
* **DC Testing:** Typically used for high-capacitance loads, such as lengthy underground cables. This method minimizes charging current interference and provides a stable assessment of insulation resistance and leakage current.

### **4. Technical Specifications and Equipment Capabilities**

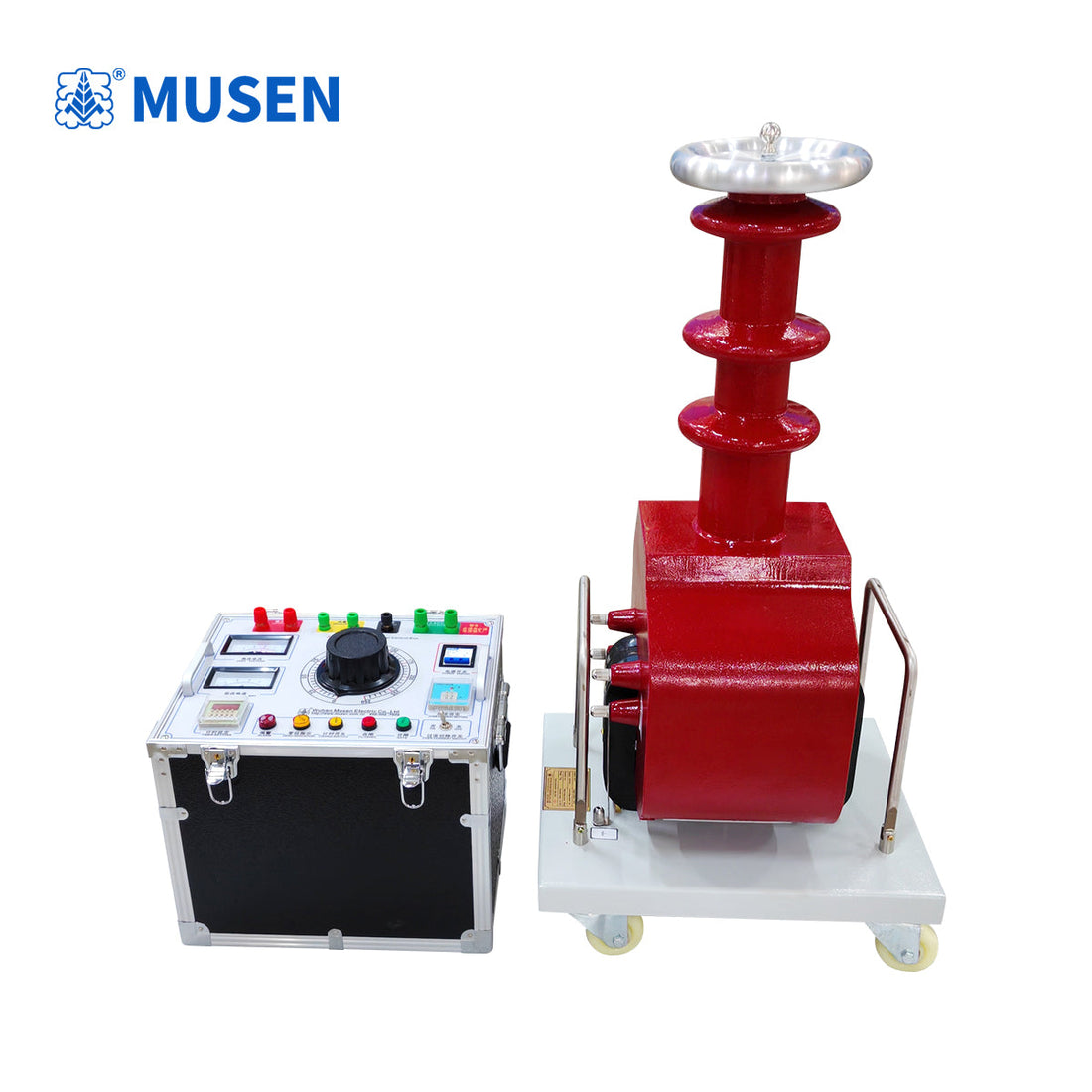

Wuhan Musen Electric Co., Ltd. provides robust high-voltage testing solutions. The equipment features include:

* Capable of performing power frequency withstand, DC withstand, and leakage current tests to meet diverse high-voltage requirements.
* Available in oil-immersed, dry-type, and gas-filled configurations, making them suitable for indoor, outdoor, high-altitude, and mobile testing.
* Flexible pairing between the control box and the test transformer, which simplifies transportation, upgrading, and expansion.
* Wide capacity ranges from 1.5kVA to 300kVA, with adjustable output voltages of 50kV, 100kV, or 150kV to accommodate both conventional and heavy-duty equipment testing.
* Built-in safety features including overcurrent and overvoltage protection, zero-position startup, and audible and visual alarm systems.
* Designed for comprehensive insulation strength testing on switchgear, power cables, transformers, instrument transformers, insulators, and raw insulating materials.

### **5. Ensuring Equipment Longevity with Wuhan Musen Electric Co., Ltd.**

Maintaining industrial electrical equipment requires high-quality diagnostic tools. Wuhan Musen Electric Co., Ltd. delivers a reliable **AC DC Dielectric Strength Tester** engineered to meet rigorous industrial standards. By partnering with experienced manufacturers, utilities can perform precise evaluations and extend the operational lifespan of their substation assets.

### **6. Best Practices for Accurate Testing**

To ensure maximum accuracy, the **AC DC Dielectric Strength Tester** must be operated under controlled environmental conditions. High humidity can create flashover paths on the surface of test objects, while excessive temperatures can lower the breakdown threshold of solid insulation. Technicians should follow standard calibration protocols and maintain appropriate safety clearances when generating test voltages.

### Frequently Asked Questions (FAQ)

**Q1: What is the main difference between a hipot test and a dielectric breakdown test?**
A: A hipot test is typically a pass/fail test used to verify the integrity of insulation under a specific voltage for a defined duration. A dielectric test determines the actual breakdown voltage threshold of the material.

**Q2: Can a DC tester be used to test equipment designed for AC operation?**
A: Yes, DC testing is frequently used on AC-rated equipment, especially in field diagnostics. The test voltage is generally calculated as 1.414 times the AC RMS voltage to ensure equivalence.

**Q3: How often should high-voltage test transformers be calibrated?**
A: To comply with industry standards, high-voltage test equipment should be calibrated annually by a certified laboratory to maintain measurement accuracy.

**Q4: Which industries rely on these testing devices?**
A: Industries that rely on these devices include power utilities, electrical manufacturing, railway systems, and material science research laboratories.

**Q5: What safety protocols should be followed during high-voltage testing?**
A: Operators must maintain safety distances, ensure ground connections are secure, use zero-position startup functions, and properly discharge test objects after completing a DC test.

***
