Why Is a Resonant Test System Better Than Traditional Withstand Voltage Testing?

In modern power transmission and distribution networks, high-voltage insulation testing is a critical step before electrical equipment is put into operation. Utilities, EPC contractors, and testing laboratories must verify the insulation strength of equipment such as high-voltage cables, GIS switchgear, and transformers to ensure long-term reliability and operational safety.

Traditional power-frequency test transformers have been widely used for AC withstand voltage testing. However, they often require large power capacity, heavy equipment, and complex field setups. As power infrastructure expands and voltage levels continue to increase, many engineering teams are turning to a more efficient solution: the Resonant Test System.

This article explains why this technology has become the preferred testing method in many high-voltage applications and how it improves efficiency, safety, and field operation for modern power projects.

 1. How Does Resonance Technology Improve High-Voltage Testing Efficiency?

High-voltage insulation testing requires stable voltage output and accurate control of test conditions. A Resonant Test System achieves this through the principle of electrical resonance. In the testing circuit, a reactor is connected in series with the capacitive load of the equipment under test. When the operating frequency approaches the resonant point, the inductive and capacitive reactance cancel each other out.

At this moment, energy oscillates between the inductance of the reactor and the capacitance of the test object. The circulating energy allows the circuit voltage to increase significantly while the external power supply provides only a small portion of the required energy. This mechanism greatly improves testing efficiency compared with traditional power-frequency equipment.

Because of this principle, engineers can generate very high test voltages without requiring extremely large transformers or generators. The system becomes particularly efficient when testing equipment with large capacitance values, such as long high-voltage cables or GIS installations. For large-scale power projects, this efficiency simplifies field operations and reduces the time required to complete commissioning tests.

  2. Why Does This Testing Method Require Much Lower Power Capacity?

One of the most significant challenges in high-voltage field testing is the availability of sufficient power supply. Traditional test transformers generate the required voltage directly from the input source, which means the power supply must deliver a large amount of energy to maintain the test voltage.

A Resonant Test System reduces this requirement by allowing most of the electrical energy to circulate within the test circuit itself. When resonance occurs, the inductive reactor and the capacitive load continuously exchange energy, while the external power supply only compensates for the small losses caused by resistance and magnetic dissipation.

In practical engineering applications, this operating principle can reduce the required input capacity to a fraction of conventional systems. This lower power demand makes it possible to perform high-voltage testing even in remote substations or construction sites where grid capacity is limited. Engineers can conduct reliable insulation tests without installing large temporary power sources, which significantly lowers operational complexity and project cost.

  3. What Safety Advantages Make It Ideal for Field Testing?

High-voltage testing always carries certain risks, especially when insulation breakdown or flashover occurs during testing. A Resonant Test System provides important safety advantages due to the nature of its operating principle.

When insulation failure occurs, the resonant condition of the circuit is immediately disrupted. As a result, the test voltage drops rapidly and the current flowing through the circuit decreases significantly. This natural reduction in fault energy helps protect both the test equipment and the device under test.

Modern testing systems also integrate multiple protection functions to ensure stable operation. Typical safety features include over-voltage protection, over-current protection, zero-position startup protection, and system detuning protection when flashover occurs. These protections help engineers quickly detect abnormal conditions and shut down the system safely.

For power utilities and commissioning teams working in high-voltage environments, these safety mechanisms provide an additional layer of operational reliability and risk reduction.

  4. Which Power Equipment Applications Benefit Most from This Technology?

As transmission networks grow larger and voltage levels increase, insulation verification becomes more demanding. A Resonant Test System is particularly suitable for equipment with significant capacitive characteristics.

Typical testing applications include AC withstand voltage testing of high-voltage power cables, gas-insulated switchgear (GIS), substation electrical equipment, and power transformers. Because these devices often have large capacitance values, they benefit from the resonance principle that enables efficient voltage generation.

Another advantage is the flexibility of modular system configurations. By adjusting reactor combinations and operating frequency ranges, engineers can adapt the testing system to different voltage levels and equipment capacities. This flexibility makes the technology suitable for both factory testing and on-site commissioning work.

As a result, the system is widely used by power utilities, electrical equipment manufacturers, EPC contractors, and third-party testing organizations across the global power industry.

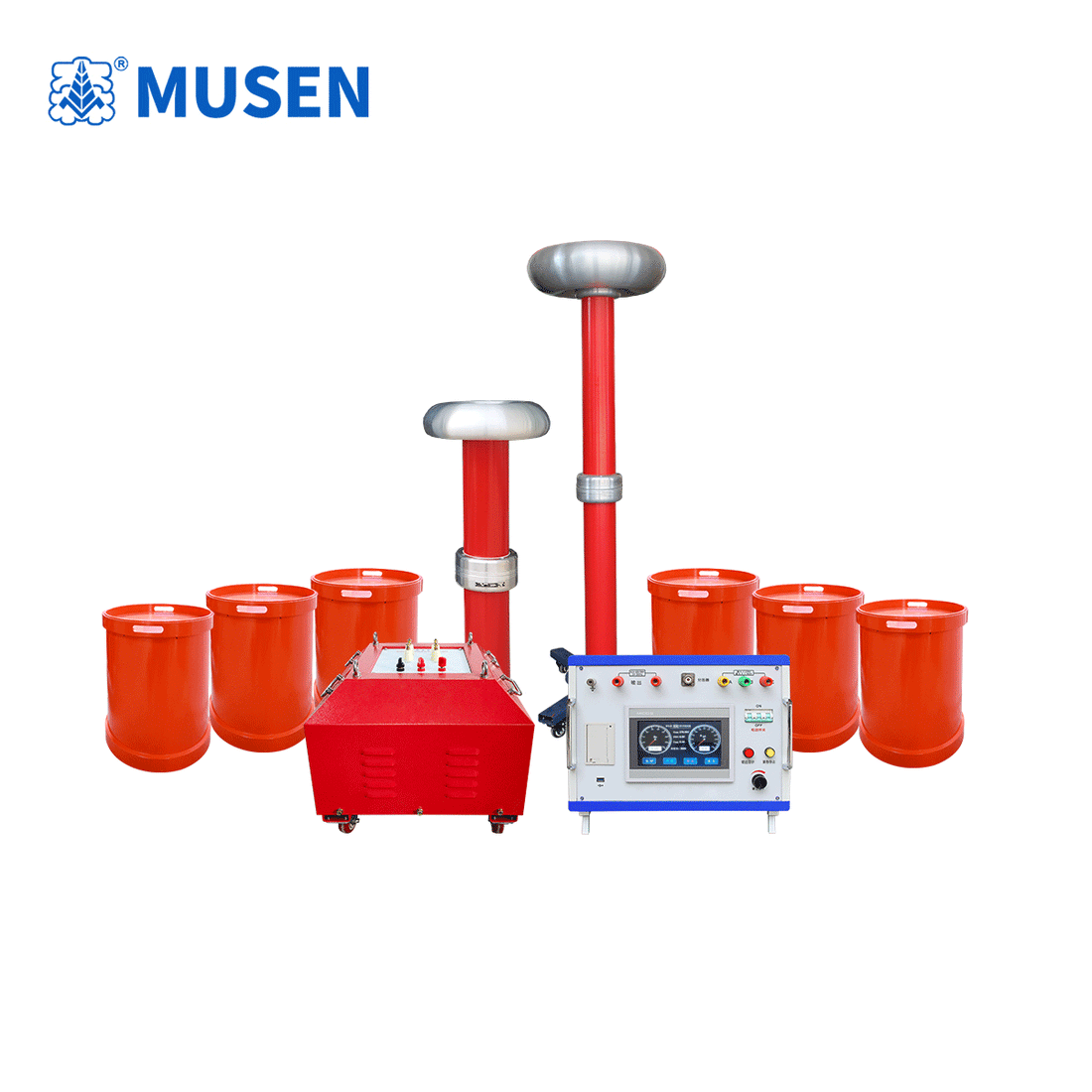

Recommended Equipment for High-Voltage Testing Projects

For utilities and engineering companies seeking reliable high-voltage testing solutions,  Wuhan Musen Electric Co., Ltd.) provides advanced equipment designed for modern power system commissioning and insulation verification.

The company specializes in the development and manufacturing of high-voltage testing equipment for power utilities, electrical manufacturers, and engineering contractors. Its systems are widely used in substations, cable installations, and electrical equipment testing facilities.

Typical applications include:

• Substation electrical equipment testing

• High-voltage cable AC withstand voltage testing

• GIS switchgear commissioning

• Transformer insulation verification

Engineered for field reliability and efficient operation, these solutions support safe and accurate high-voltage testing across a wide range of power infrastructure projects.

Reliable insulation testing is essential for the safe operation of modern power systems. As voltage levels increase and electrical infrastructure becomes more complex, traditional testing methods often struggle to meet the demands of efficiency, safety, and field practicality.

Resonance-based testing technology offers a more efficient approach by significantly reducing power requirements while maintaining the ability to generate high test voltages. Its inherent safety characteristics and flexible configuration make it an ideal solution for testing high-capacity electrical equipment.

For power utilities and engineering teams working on modern transmission and substation projects, selecting the right testing equipment is a key factor in ensuring reliable commissioning and long-term system performance. Solutions provided by Wuhan Musen Electric Co., Ltd.support these requirements with advanced technology designed for professional high-voltage testing applications worldwide.
