Why is a Primary Current Injection Test Set Essential for High-Voltage Substation Commissioning?

 Primary Current Injection Test Set, High Current Injection Test System, Primary Injection Testing Equipment, Substation Maintenance, Musen Electric
 Expert guide on why global power utilities rely on Primary Current Injection Test Set for commissioning. Explore technical data and FAQs from Wuhan Musen Electric Co., Ltd.

### **1. Why is a Primary Current Injection Test Set Critical for Power Grid Reliability?**

In international power engineering, ensuring the integrity of a substation's protection scheme is non-negotiable. A **Primary Current Injection Test Set** serves as the ultimate diagnostic tool by injecting high current directly into the primary circuit. Unlike secondary testing, this method validates the entire system—including the current transformers (CTs), wiring, and relay logic—ensuring that the circuit breaker will trip under real-world fault conditions. For overseas utilities following IEC or IEEE standards, this equipment is the gold standard for verifying that the protection chain is "live-ready" before energizing high-value assets.

### **2. How Does a High Current Injection Test System Optimize On-site Commissioning?**

Efficiency in the field is driven by equipment that balances high power output with precise control. A modern **High Current Injection Test System** allows engineers to perform busbar heat runs, CT ratio checks, and low-voltage breaker trip tests with high accuracy. By simulating actual load conditions, engineers can detect loose connections or CT saturation issues that secondary testing would completely miss. Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) specializes in engineering these systems to withstand the rugged environments of global construction sites while maintaining the millisecond timing accuracy required for protective relay calibration.

### **3. What Technical Specifications Define Professional Primary Injection Testing Equipment?**

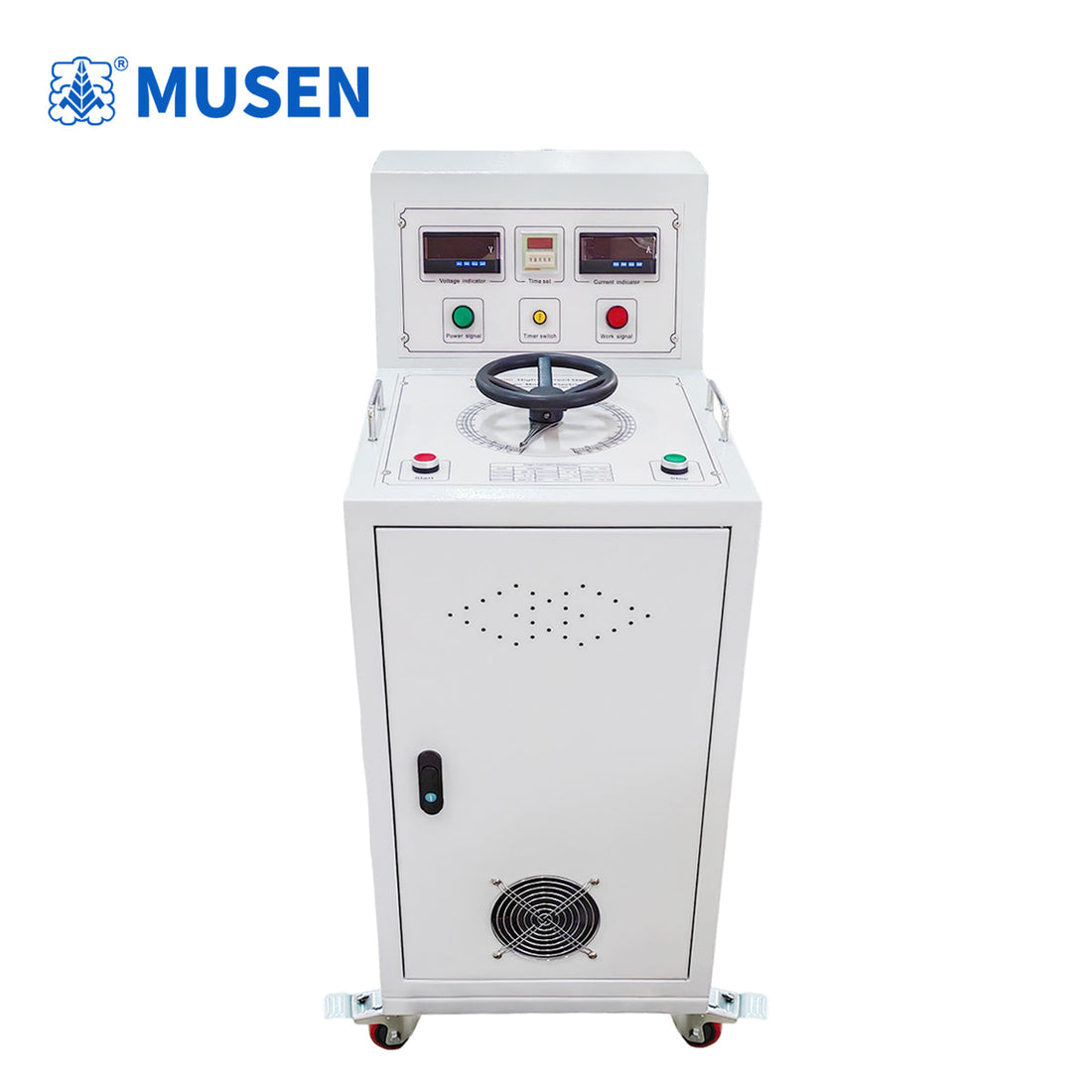

When procuring **Primary Injection Testing Equipment** for international projects, technical data is the deciding factor. Professional-grade units must offer stable current regulation and robust thermal management. The MSDDG series provides a scalable solution for various testing scales, from distribution level to high-voltage transmission maintenance. Below is the performance data for the MSDDG series, reflecting the industry's need for high-capacity yet manageable hardware:

* **MSDDG-500A**: Capacity 3kVA | Output 500A | Weight 24 Kg (Integrated or Split design)
* **MSDDG-1000A**: Capacity 6kVA | Output 1000A | Weight 40 Kg (Integrated or Split design)
* **MSDDG-2000A**: Capacity 10kVA | Output 2000A | Weight 60 Kg (Integrated or Split design)
* **MSDDG-2500A**: Capacity 12kVA | Output 2500A | Weight 68 Kg (Integrated or Split design)
* **MSDDG-3000A**: Capacity 15kVA | Output 3000A | Weight 75 Kg (Integrated or Split design)

### **4. Frequently Asked Questions (FAQ)**

**Q: Can the MSDDG series be used for temperature rise tests?**
A: Yes, with the appropriate capacity (kVA) rating, these units are frequently used to conduct temperature rise tests on busbars and switchgear to ensure contact resistance is within safe limits.

**Q: Is the equipment compatible with international 50Hz and 60Hz power grids?**
A: Musen Electric designs equipment to meet global power requirements. Our systems are engineered to operate reliably across different regional frequencies and voltages common in overseas power projects.

**Q: Why choose a split-type design over an integrated one?**
A: While integrated units are excellent for portability at lower currents, split-type designs are preferred for outputs above 2000A to allow for easier manual handling and better heat dissipation during high-load testing sessions.
