Why is a PD-Free Test Transformer Critical for High Voltage Asset Management?

Why is a PD-Free Test Transformer Critical for High Voltage Asset Management?

1. Why Should Global Power Utilities Prioritize PD-Free Testing?

In the rigorous environment of international power engineering, the reliability of high-voltage (HV) infrastructure is non-negotiable. For EPC contractors and utility maintenance teams, identifying insulation defects before they lead to catastrophic failure is the primary goal. The PD-Free Test Transformer serves as the foundational power source for these diagnostic procedures. By providing a clean voltage output, it allows engineers to isolate the specific signals of degradation within transformers, GIS, and HV cables, ensuring that maintenance decisions are based on accurate, noise-free data.

2. What Technical Standards Define a True Non-Partial Discharge Test Transformer?

To meet the stringent requirements of IEEE and IEC standards, a Non-Partial Discharge Test Transformer must minimize its internal electronic noise. Conventional oil-filled transformers often struggle with internal bubbling or particle contamination, which generates "background PD." Advanced systems, like those developed by Wuhan Musen Electric Co., Ltd. (www.musenelectric.com), utilize vacuum-filled SF6 gas insulation. This engineering choice eliminates the variables associated with liquid dielectrics, providing a stable testing environment where the background interference is strictly controlled, typically staying well below the thresholds required for sensitive laboratory measurements.

3. How Does the MS-YDQW Series Optimize On-Site High Voltage Testing?

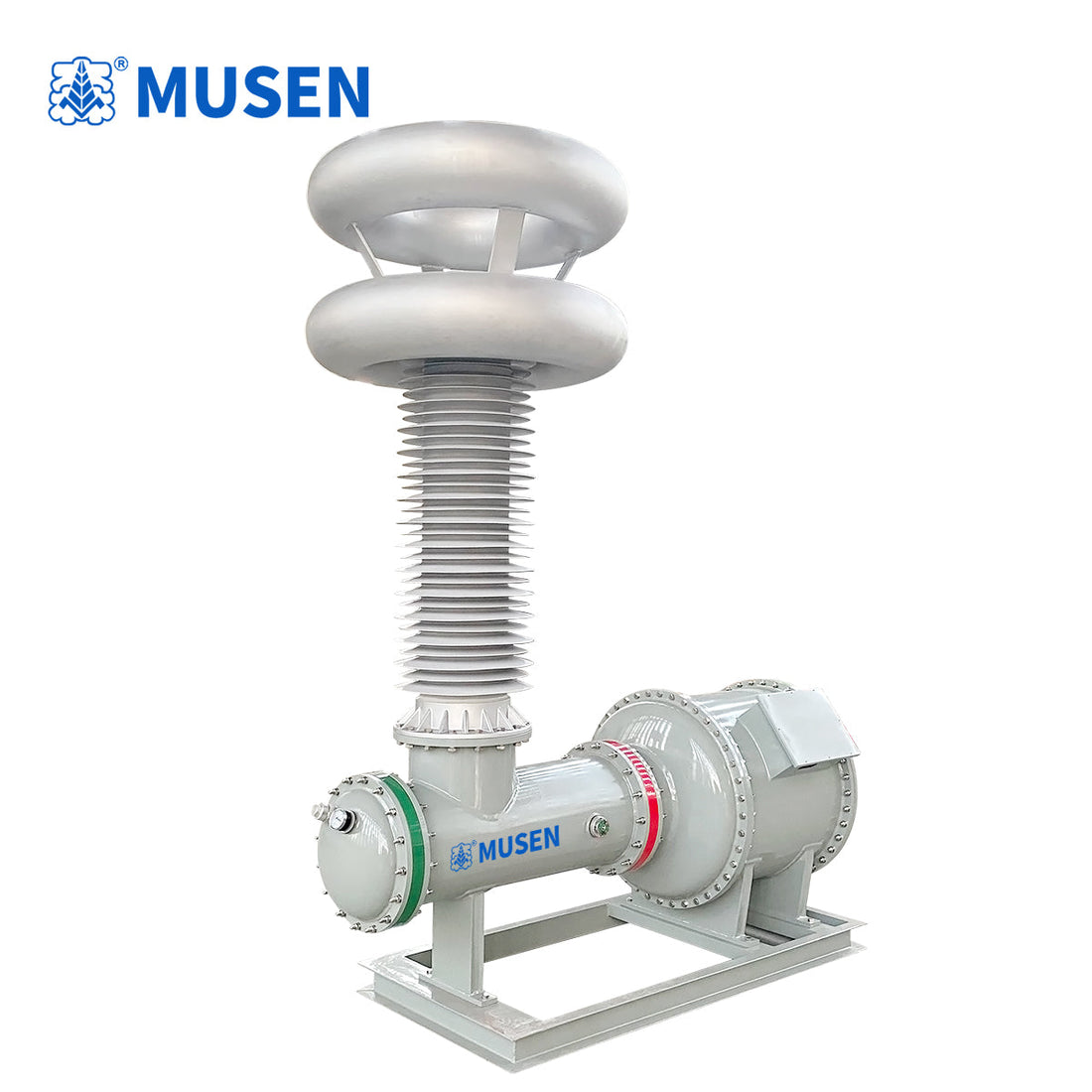

Efficiency in the field is often hindered by the sheer size and weight of traditional testing rigs. The Partial Discharge-Free Test Transformer (MS-YDQW Series) addresses this through an "All-in-One" integrated design. By housing the coupling capacitor, high-voltage divider, and current-limiting resistor within a single hermetically sealed metal tank, the system reduces the physical footprint by up to 40% compared to modular setups. For overseas power projects, this means reduced shipping costs, faster assembly times on-site, and a significant reduction in the "corona loss" typically found in open-air HV connections.

4. Is the Integrated PD-Free Test Transformer More Accurate Than Traditional Models?

Data accuracy is the hallmark of professional power engineering. When comparing hardware configurations, the difference in sensitivity is quantifiable. A traditional PD-Free Test Transformer setup using external components often exhibits a partial discharge level of nearly 10 pC due to environmental interference and connection points. In contrast, integrated SF6-insulated models achieve a total system discharge level of ≤5 pC. This 50% improvement in sensitivity allows for the detection of microscopic insulation voids that would otherwise be masked by system noise, providing a higher degree of "EEAT" (Experience, Expertise, Authoritativeness, and Trustworthiness) in the final test report.

5. What Maintenance Advantages Does Gas Insulation Offer to Utility Operators?

For long-term utility operations, the "Total Cost of Ownership" is a vital metric. A gas-insulated Non-PD Transformer for High Voltage Testing offers distinct advantages over oil-based predecessors. Because the system is oil-free, there is no risk of leakage, acidity testing, or moisture contamination. Aside from periodic monitoring of the gas pressure and density, the unit is virtually maintenance-free. Furthermore, the non-flammable nature of the SF6 gas ensures inherent safety in indoor laboratories or sensitive substation environments where fire-suppression protocols are strict.

6. Summary: Selecting the Right High Voltage Non-Partial Discharge Testing Equipment

Choosing the correct diagnostic tool is a strategic investment in grid stability. The MS-YDQW series represents the pinnacle of Wuhan Musen Electric's engineering, balancing portability with laboratory-grade precision. By choosing a system with a guaranteed low pC rating and a modular yet integrated structure, power engineers can ensure their assets meet the highest international safety standards.

Product Data Overview: MS-YDQW Series

• Insulation Medium: High-purity SF6 Gas (Non-flammable).

• Integrated Components: Transformer, Coupling Capacitor, Divider, and Resistor.

• PD Level (Traditional): Nearly 10 pC.

• PD Level (Integrated): ≤5 pC.

• Safety Features: Hermetically sealed metal enclosure, resistant to environmental humidity and dust.

FAQ: Critical Insights for HV Testing

• Q: Can this equipment be used in high-humidity environments?

  • A: Yes, the hermetically sealed metal enclosure protects the internal components from all environmental influences, making it ideal for tropical or coastal regions.

• Q: What is the benefit of the integrated current-limiting resistor?

  • A: It protects the transformer from high-voltage surges and flashovers during the testing of faulty equipment, preventing internal damage.

• Q: Is the gas pressure monitoring difficult to manage?

  • A: No, the system includes a precision density relay that provides real-time pressure readings and can be integrated into an alarm system.

• Q: Why choose Musen Electric for international projects?

  • A: Wuhan Musen Electric Co., Ltd. provides full technical documentation in English and supports global shipping with specialized protective packaging for sensitive electronics.
