Why Is a PD-Free Power Frequency Withstand Voltage Test System Essential in Power Engineering?

 The Role of Reliable High-Voltage Testing

In modern power engineering projects, insulation reliability directly affects grid safety and asset lifespan. From commissioning to routine maintenance, high-voltage testing is a mandatory process. Among all test methods, the PD-free power frequency withstand voltage test system has become a key solution for identifying insulation weaknesses without introducing additional discharge risks.

This article explains why such equipment is critical and how it is practically used in international power projects.

Why PD-Free Testing Is Critical for Power Engineering

Partial discharge can accelerate insulation aging and lead to unexpected failures. Conventional test equipment may introduce background discharge, affecting test credibility.

A PD-free power frequency withstand voltage test system allows engineers to verify insulation strength under rated voltage while maintaining an ultra-low discharge environment, which is essential for transformers, GIS, switchgear, and cables in utility-scale projects.

Practical Use in On-Site and Factory Testing

In overseas power engineering, testing conditions vary widely—from controlled factory environments to challenging on-site installations. Equipment must deliver stable output regardless of location.

By providing consistent voltage and clean waveforms, a PD-free power frequency withstand voltage test system supports both factory acceptance tests (FAT) and site acceptance tests (SAT), ensuring compliance with IEC and other international standards.

Operational Safety and Long-Term Engineering Value

High-voltage testing involves inherent risks. Advanced protection mechanisms and robust insulation design significantly reduce operational hazards.

From an engineering management perspective, a PD-free power frequency withstand voltage test system improves testing accuracy, minimizes false diagnostics, and enhances overall project efficiency throughout the equipment lifecycle.

 Supporting Global Power Infrastructure Reliability

As global power networks expand and technical standards rise, accurate insulation testing is no longer optional. Selecting appropriate PD-free testing equipment is a strategic decision that safeguards both infrastructure and investment.

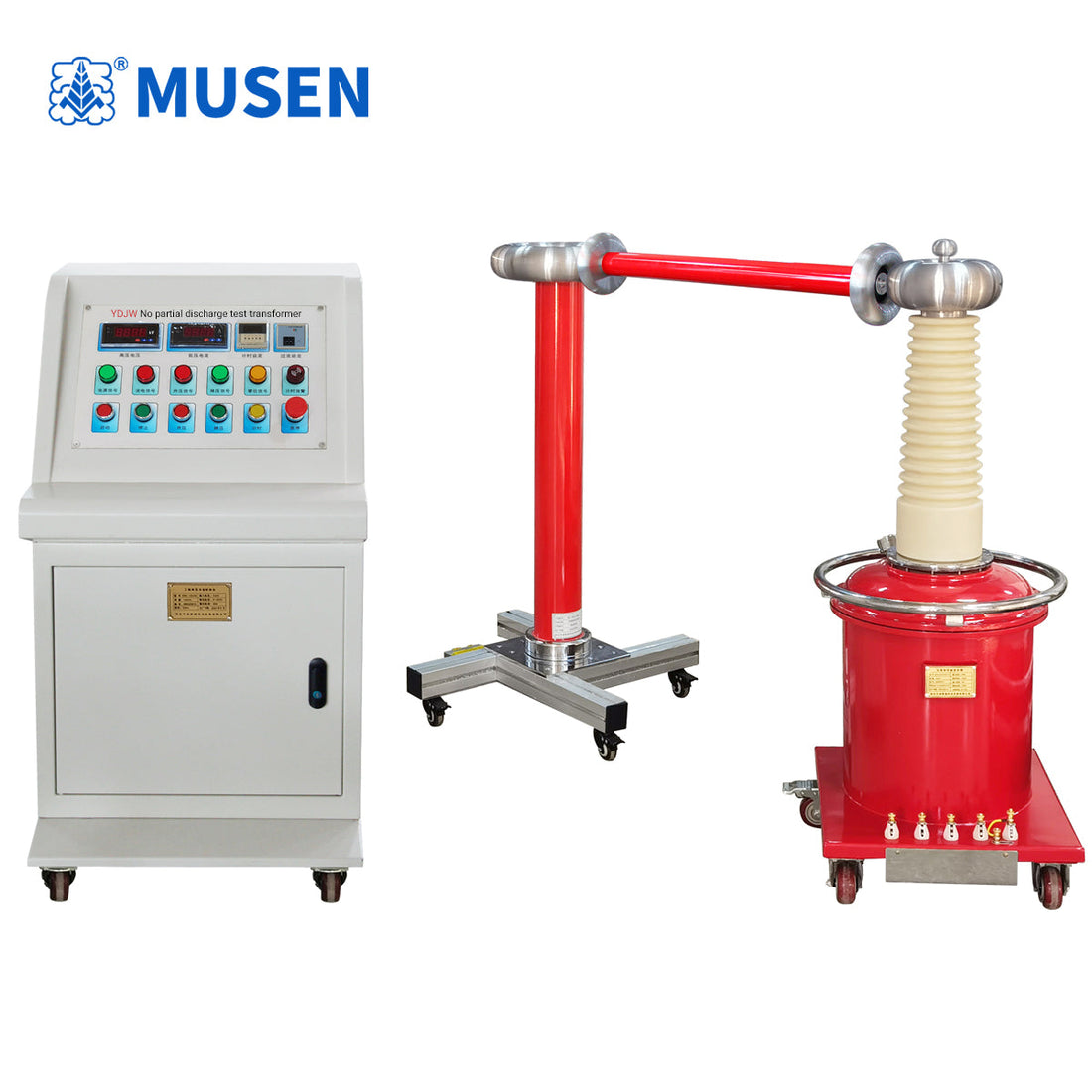

Product Overview: MS-YDJW Oil-Immersed PD-Free Test Transformer

Wuhan Musen Electric Co., Ltd. provides a professional PD-free power frequency withstand voltage test system designed for demanding power engineering applications worldwide.

Equipment Details:

• Model: MS-YDJW Oil-Immersed PD-Free Test Transformer

• Epoxy cylinder structure for enhanced mechanical and electrical stability

• Low-impedance voltage output, exceeding national standards

• High insulation class with partial discharge level ≤ 5 pC

• Reliable overcurrent and overvoltage protection

This solution delivers stable performance, high safety margins, and dependable testing results for international utilities and engineering contractors.
