Why Is a Partial Discharge Tester Critical for Fault Diagnosis in Power Equipment?

Reliable insulation performance is essential for the safe operation of high-voltage electrical equipment. However, insulation degradation often begins with microscopic electrical activity that cannot be detected through conventional testing methods. These early-stage defects may gradually develop into serious failures that lead to power outages or costly equipment damage.

A Partial Discharge Tester plays a vital role in identifying these hidden insulation problems. By detecting localized electrical discharge within insulation systems, engineers can evaluate equipment condition, locate potential faults, and implement preventive maintenance strategies before major failures occur.

This article explains why partial discharge detection is essential in modern power equipment diagnostics and how utilities and industrial users can benefit from this technology.

Early Identification of Hidden Insulation Defects

Partial discharge occurs when electrical stress causes localized breakdown within insulation materials. These discharges may appear in voids, cracks, or contaminated surfaces inside electrical equipment.

A Partial Discharge Tester allows engineers to detect these weak points at an early stage. Instead of waiting for visible faults or catastrophic insulation failure, maintenance teams can identify abnormal discharge signals during routine inspections.

Early detection helps utilities avoid unexpected shutdowns and ensures long-term reliability of electrical assets.

Non-Intrusive Testing for Live Electrical Equipment

One of the major advantages of modern partial discharge detection technology is the ability to perform inspections without shutting down equipment. This is particularly important for utilities operating critical infrastructure.

Advanced systems integrate ultrasonic and transient earth voltage sensors that enable non-invasive testing under normal operating conditions. Engineers can perform rapid inspections on energized systems without interrupting power supply.

This makes the Partial Discharge Tester a practical diagnostic tool for routine maintenance programs in substations and industrial facilities.

Wide Coverage for Different High-Voltage Assets

Electrical networks consist of a wide range of equipment types, each with different insulation structures. Effective diagnostic tools must therefore support testing across multiple asset categories.

Modern testing systems can detect partial discharge in equipment such as:

• Switchgear

• Power transformers

• High-voltage cables

• Gas-insulated switchgear (GIS)

• Overhead transmission lines

By configuring different sensors, engineers can use one instrument to inspect nearly all high-voltage equipment. This versatility significantly improves maintenance efficiency.

Advanced Discharge Pattern Analysis

Accurate diagnosis requires more than detecting discharge signals. Engineers must also analyze discharge characteristics to determine the type and severity of insulation defects.

A Partial Discharge Tester typically provides multiple analysis tools, including:

• Time-domain waveform display

• PRPD (Phase Resolved Partial Discharge) patterns

• PRPS (Phase Resolved Pulse Sequence) analysis

These graphical discharge patterns allow engineers to distinguish between different discharge sources, such as internal void discharge, surface discharge, or corona effects.

Efficient Data Management and User-Friendly Operation

Modern testing equipment is designed to support efficient field operations. Human-centered interfaces simplify the testing process and improve data management for large inspection programs.

User-friendly software allows engineers to store, organize, and analyze test data for different equipment types. This capability is especially valuable for utilities managing multiple substations and monitoring long-term insulation performance.

With efficient data handling and simplified operation, the Partial Discharge Tester becomes an essential instrument in predictive maintenance programs.

Product Overview: Partial Discharge Tester from Wuhan Musen Electric

The Partial Discharge Tester developed by Wuhan Musen Electric Co., Ltd. provides a comprehensive solution for diagnosing insulation defects in high-voltage power equipment. More product information is available at the official website:
https://musenelectric.com/

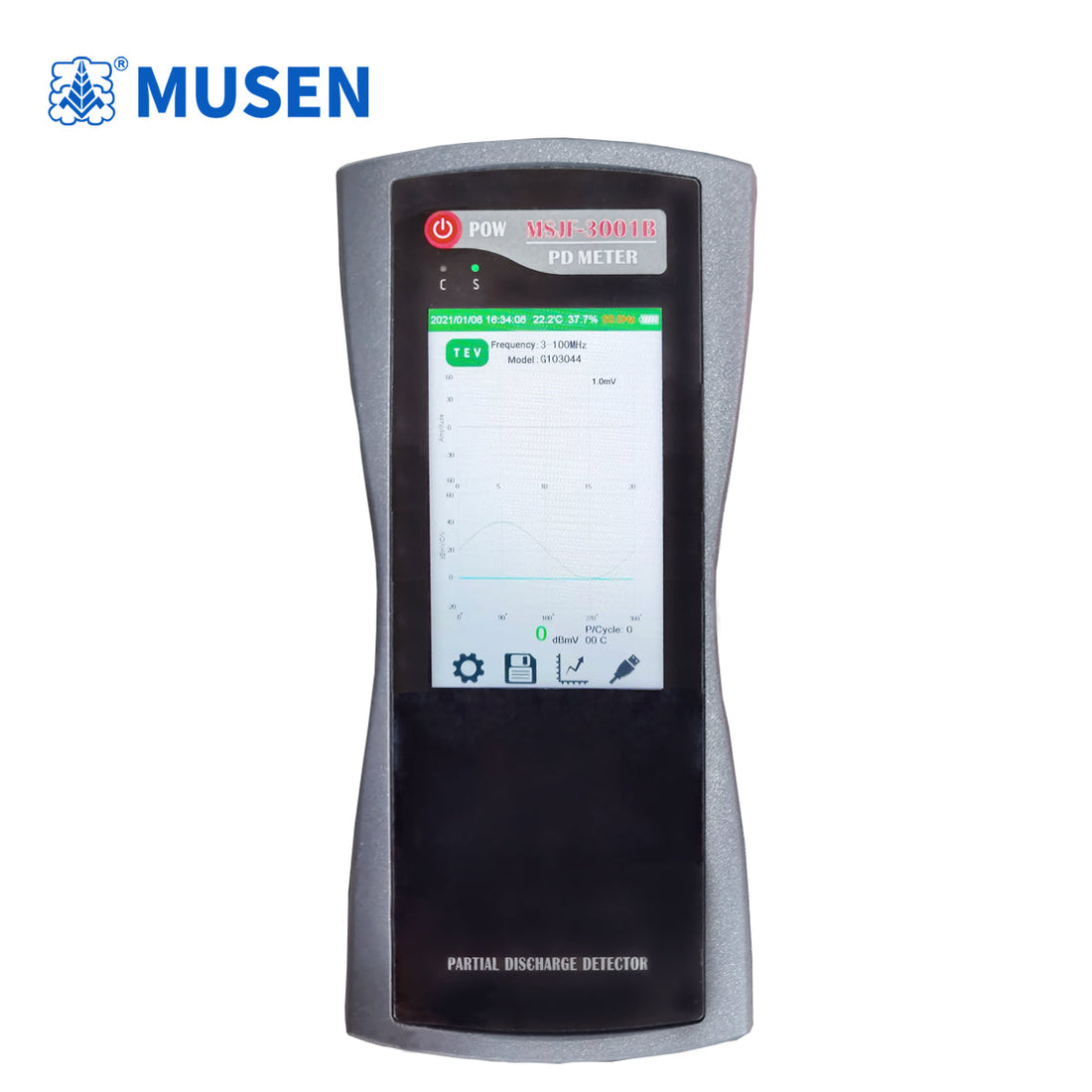

This advanced diagnostic instrument is designed to detect partial discharge in operating equipment such as switchgear, transformers, cables, GIS systems, and overhead lines. The device integrates an ultrasonic sensor and a transient earth voltage (TEV) sensor directly within the main unit, enabling non-intrusive testing without power shutdown.

Key features include:

• Built-in ultrasonic and TEV sensors for efficient on-site inspection

• Non-invasive detection that allows testing while equipment remains energized

• Compatibility with additional external sensors for transformers, GIS, cables, and overhead lines

• Multiple discharge analysis tools including time-domain waveform, PRPD, and PRPS patterns

• Human-friendly interface for easy operation and structured data management

• Multi-purpose design enabling detection across a wide range of high-voltage assets

These capabilities allow engineers to perform accurate diagnostics and improve the reliability of electrical infrastructure in substations and industrial power systems.

Partial discharge monitoring has become an essential method for diagnosing insulation defects in modern electrical networks. By detecting early-stage discharge activity, engineers can prevent severe equipment failures, improve maintenance planning, and enhance overall grid reliability.

For power utilities and industrial operators seeking advanced diagnostic tools, implementing a high-performance Partial Discharge Tester provides a reliable solution for condition monitoring and preventive maintenance of critical high-voltage equipment.
