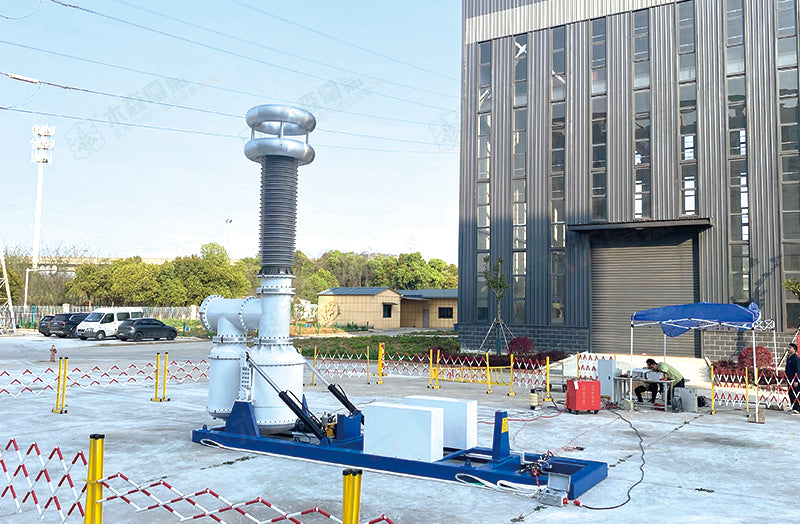

1. What Defines a High-Performance Partial Discharge Free High Voltage Test Transformer?
In global power engineering, the reliability of electrical assets like power transformers, GIS, and HV cables depends on the precision of insulation diagnostics. A **Partial Discharge Free High Voltage Test Transformer** is not merely a power source; it is a specialized instrument designed to provide a "silent" electrical environment. At Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)), we focus on suppressing background interference to ensure that engineers can identify microscopic insulation voids that would otherwise be masked by equipment noise. Our gas-insulated systems provide a stable power frequency that is critical for meeting international IEC and IEEE standards.
2. Strategic Engineering Benefits of Gas-Insulated PD Free Systems
Modern electrical manufacturing plants and utility maintenance teams are increasingly moving away from traditional oil-immersed units. The transition to the **Partial Discharge Free High Voltage Test Transformer** is driven by technical data and operational safety. Unlike oil-filled units that require complex dissolved gas analysis (DGA) and moisture monitoring, SF6 gas-insulated systems are hermetically sealed. This design ensures that the internal dielectric strength remains constant regardless of local humidity or atmospheric pressure, which is vital for consistency in multi-site testing projects.
3. Comparative Analysis: Integrated vs. Traditional Test Architectures
The efficiency of a high-voltage laboratory is measured by its sensitivity and footprint. Traditional setups involve separate components connected via corona-prone leads, often resulting in noise levels exceeding 10pC. Musen Electric’s integrated **Partial Discharge Free High Voltage Test Transformer** consolidates the transformer, coupling capacitor, and voltage divider into a single grounded metal enclosure. This architecture reduces the background discharge level to below 5pC, offering a 50% improvement in measurement sensitivity compared to open-air configurations.
4. Operational Safety and Maintenance-Free Execution
For overseas power project contractors, equipment safety is paramount. Gas-insulated technology offers inherent arc-quenching capabilities and is completely non-flammable, making it suitable for indoor laboratories and urban substations. While oil-immersed equipment requires heavy maintenance cycles—including sampling, filtering, and oil replacement—our gas systems require only periodic monitoring of gas density. This "set-and-forget" reliability reduces long-term O&M (Operation and Maintenance) costs by approximately 40% over the product lifecycle.
5. Technical Specifications for Musen Electric YDQW Series
Musen Electric provides a range of standardized and customized solutions for global procurement:
- ◈ YDQW 30kVA / 100kV: Ideal for laboratory research and insulation material testing.
- ◈ YDQW 50kVA / 250kV: The standard choice for cable and motor manufacturing quality control.
- ◈ YDQW 250kVA / 550kV: Designed for ultra-high voltage transformer and GIS testing.
Key Performance Data:
• Integrated Noise Level: ≤ 5pC at rated voltage.
• Insulation Media: High-purity SF6 gas (Maintenance-free).
• Structure: All-in-one vertical or horizontal metal-clad design.
• Environmental Tolerance: Fully functional from -20°C to +50°C.
6. Frequently Asked Questions (FAQ)
Q: How does the integrated system guarantee lower PD than traditional setups?
A: By placing the coupling capacitor and current-limiting resistor inside the grounded tank, we eliminate air-born corona and external electromagnetic interference, resulting in a cleaner signal.
Q: What are the primary maintenance requirements for Musen Electric test transformers?
A: Unlike oil-filled units that require oil-testing and filtration, our gas-insulated units only require a quick visual check of the gas pressure gauge to ensure density is within the operational range.
Q: Can these systems be integrated into automated production lines?
A: Yes, our control units support remote communication protocols, allowing for seamless integration with factory SCADA and automated quality management systems for high-volume manufacturing.
Q: Is the equipment safe for transport to remote overseas project sites?
A: Absolutely. The integrated metal-clad structure is significantly more robust and lighter than oil-filled counterparts, reducing the risk of damage during shipping and simplifying on-site assembly.
