Why is a Partial Discharge Free AC Test System Essential for High-Voltage Quality Assurance?

Partial Discharge Free AC Test System, PD Free Test Transformer, YDQW Series, Musen Electric, High Voltage Testing, SF6 Insulated Transformer

1. What Defines the Efficiency of a Partial Discharge Free AC Test System?

In the global power infrastructure sector, the reliability of high-voltage (HV) assets is non-negotiable. For manufacturers and utility engineers, a Partial Discharge Free AC Test System serves as the ultimate diagnostic benchmark. Unlike standard testing setups, this system is engineered to eliminate internal electromagnetic interference, ensuring that any detected ionization originates solely from the Test Object (TO). At Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)), we focus on delivering high-purity voltage environments where the background noise level is strictly controlled below 5pC, providing the data precision required for international compliance.

3. Why is Integrated Design the Future of PD Free Test Transformer Technology?

Modern testing laboratories are moving away from modular, cluttered setups. Our integrated Partial Discharge Free AC Test System houses the test transformer, coupling capacitor, high-voltage divider, and protective resistors within a single, hermetically sealed metal tank. This "all-in-one" architecture minimizes stray capacitance and prevents external corona discharge, which is vital for achieving repeatable results during factory acceptance tests (FAT). By centralizing these components, Musen Electric ensures a cleaner signal path for PD detectors, enabling the identification of microscopic insulation voids that could lead to field failures in cables or rotating machines.

4. Technical Specifications and Capability Matrix

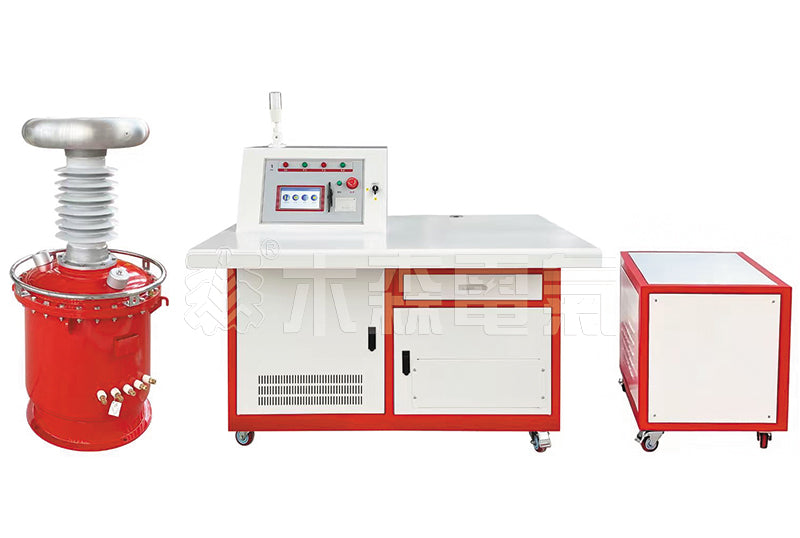

The YDQW series is designed to handle diverse voltage requirements, from 100kV laboratory units to 550kV industrial-scale systems. Below is the technical data for our core high-voltage solutions:

5. Key Performance Advantages for Industrial Users

Wuhan Musen Electric Co., Ltd. prides itself on engineering equipment that survives the demands of the field. The following features define our YDQW high-voltage line:

• ✅ Advanced Arc Suppression: Superior dielectric strength of SF6 gas provides immediate quenching of electrical arcs.
• ✅ Intrinsic Fire Safety: Non-combustible gas medium makes it ideal for indoor lab environments.
• ✅ Maintenance-Free Housing: The fully enclosed metal structure prevents oil leakage and eliminates the need for periodic oil purification.
• ✅ Climate Resilience: Sealed components remain unaffected by humidity or dust, ensuring consistent 5pC PD performance in any geography.

6. Common Questions About PD Free AC Test Systems

Q: How does the integrated system reduce measurement error?

A: By housing the coupling capacitor and divider internally, we eliminate the need for external high-voltage leads, which are the primary source of background corona noise. This results in a much higher signal-to-noise ratio.

Q: Is SF6 gas difficult to maintain in a testing environment?

A: Not at all. The YDQW system is hermetically sealed. Operators only need to verify the gas pressure on a density relay periodically. No active gas handling is required during standard operation.

Q: Can this system be used for type testing of 500kV class equipment?

A: Yes, our YDQW 250kVA / 550kV model is specifically designed for high-level insulation and withstand testing for extra-high voltage (EHV) components like power transformers and insulators.

Q: What is the primary benefit for overseas logistics?

A: The compact, gas-insulated design allows the unit to be transported in standard shipping containers and easily maneuvered within factory floors with limited overhead clearance.
