Strategic Insights into High-Voltage Insulation Reliability

In modern power grid management, the margin for error in insulation testing is shrinking. For utility providers and electrical engineering firms, the ability to detect microscopic defects before they evolve into explosive failures is a operational mandate. This is where the Non-Partial Discharge Test Transformer becomes the definitive benchmark for laboratory and field diagnostics. By providing a "silent" electrical environment, these systems allow engineers to isolate the specific signals of dielectric distress within transformers, cables, and GIS components.

1. What Defines a True Partial Discharge-Free Test Transformer?

A standard high-voltage transformer often generates its own internal electronic noise (corona or internal arcs), which can mask the actual condition of the equipment under test (EUT). A professional-grade Non-Partial Discharge Test Transformer is engineered with specialized shielding and gas-insulated mediums to ensure that the background interference level remains significantly lower than the detection threshold—typically under 5 pC. This clarity is vital for complying with IEC 60270 standards and ensuring the validity of insulation integrity reports.

2. Technical Superiority of Gas-Insulated vs. Oil-Immersed Systems

The shift toward $SF_6$ gas-insulated technology in PD-Free Test Transformer design has revolutionized site portability. Unlike traditional oil-filled units that are heavy and prone to leakage, gas-insulated systems offer:

• Superior Dielectric Recovery: Faster arc-extinguishing capabilities during overvoltage events.

• Weight Reduction: Up to 30% lighter than oil-equivalent models, facilitating easier logistics for overseas power projects.

• Environmental Stability: Hermetically sealed metal enclosures protect the internal components from humidity, dust, and salt spray, which is essential for coastal or tropical substation environments.

3. Optimizing Accuracy with a Non-PD Transformer for High Voltage Testing

Precision in high-voltage diagnostics is a result of total system integration. When using a Non-PD Transformer for High Voltage Testing, the layout of the coupling capacitor and current-limiting resistor is critical. Wuhan Musen Electric (www.musenelectric.com) has pioneered the integrated structure, where all high-voltage components are housed within a single gas-filled tank. This configuration eliminates external corona discharge from connecting wires, which is the most common cause of "false positive" PD readings in traditional modular setups.

4. Field Performance Data and Safety Benchmarks

For power engineering contractors, equipment safety is as important as data accuracy. The MS-YDQW series utilizes non-flammable insulation gas, making it the safest choice for indoor labs and underground substations where oil-based fire hazards are strictly prohibited. Furthermore, data indicates that integrated High Voltage Non-Partial Discharge Testing Equipment reduces setup time by 50%, as there is no need to manually calibrate external voltage dividers and coupling capacitors on-site.

5. MS-YDQW Series: The Industry Standard by Wuhan Musen Electric

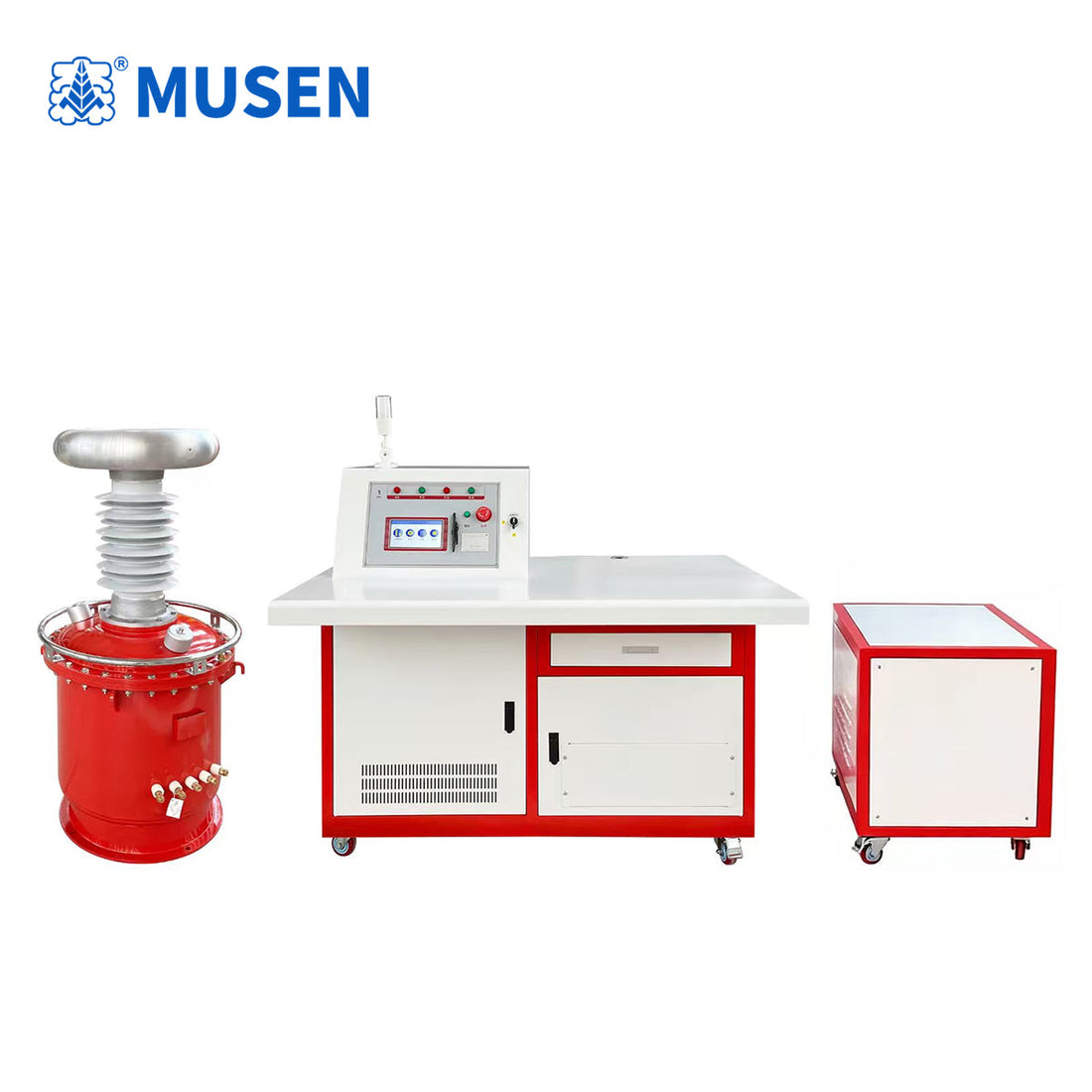

The MS-YDQW Non-Partial Discharge Test Transformer is engineered specifically for the rigorous demands of international utility standards. Below are the definitive technical advantages of this system:

• Arc-Extinguishing Excellence: Superior insulation performance via high-purity $SF_6$ gas.

• Safety First: Fire-resistant, non-explosive, and inherently safe for personnel.

• Highly Integrated: Combines the transformer, coupling capacitor, resistor, and divider into one ultra-compact unit.

• Logistics Optimized: Minimal floor space required and simplified transport requirements.

• Zero-Maintenance Design: Hermetically sealed against environmental influences; only requires gas pressure monitoring.

• Guaranteed Sensitivity: Traditional modular systems exhibit ~10 pC, while the MS-YDQW integrated model achieves a total PD level of ≤5 pC.

Future-Proofing Your High-Voltage Assets

As global energy demands push infrastructure to higher voltages, the sensitivity of your testing equipment must keep pace. Investing in a Non-Partial Discharge Test Transformer is not merely a compliance check—it is a strategic investment in grid resilience. Wuhan Musen Electric remains committed to providing the global power industry with the data-driven, authoritative tools needed to ensure a failure-free energy future.

Frequently Asked Questions (FAQ)

Q1: How does the integrated design of the MS-YDQW improve PD detection?

By housing the coupling capacitor and divider inside the transformer tank, we eliminate the high-voltage leads that typically cause air ionization and corona, resulting in a much lower noise floor.

Q2: Is $SF_6$ gas safe for use in public infrastructure projects?

Yes, $SF_6$ is non-toxic and non-flammable. Our systems are hermetically sealed and equipped with density monitors to ensure zero leakage, meeting international safety and environmental regulations.

Q3: Can this system be customized for different voltage ratings?

Absolutely. Wuhan Musen Electric offers customized configurations ranging from 50kV to 1000kV to meet the specific testing requirements of different equipment classes.

Q4: Why is a PD level of <5 pC significant?

Most high-voltage equipment standards require the background noise to be less than 50% of the allowable PD in the test object. A 5 pC limit allows for the detection of even the most minute insulation flaws, providing a higher safety margin.
