1. How Does Precision Testing Enhance High-Voltage Grid Stability?
In the demanding field of global power engineering, the reliability of High-Voltage (HV) infrastructure hinges on the mechanical precision of switching components. For Gas Insulated Switchgear (GIS) and SF6-insulated systems, even a millisecond of synchronization error can lead to catastrophic arc failures. A specialized **Circuit Breaker Analyzer** provides the empirical data necessary to validate equipment health, ensuring that assets operate within strict IEC and IEEE safety margins. At Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)), we focus on delivering diagnostic clarity that prevents unplanned outages in critical utility networks.
2. What Are the Key Performance Indicators in Switchgear Diagnostics?
Professional maintenance involves more than simple functional checks; it requires a deep dive into the kinematics of the breaker mechanism. Utilizing a **HV Switchgear Diagnostic System**, engineers can quantify several critical parameters:
- ■ Mechanical Timing: Measuring closing and opening times across all phases to ensure simultaneous operation.
- ■ Contact Travel and Velocity: Assessing the stroke length and speed to confirm the integrity of the damping system.
- ■ Dynamic Resistance: Identifying erosion in arcing contacts through real-time resistance profiling during operation.
3. Why Is Universal Compatibility Vital for International Power Projects?
Overseas power projects often manage a diverse fleet of equipment, ranging from legacy oil-filled breakers to modern vacuum and SF6 units. A versatile **Circuit Breaker Analyzer** eliminates the need for multiple proprietary tools, streamlining the maintenance workflow. This cross-platform capability allows technical teams to standardize their reporting and safety protocols across different substation generations, significantly reducing the specialized training overhead for field technicians.
4. How Does Data-Driven Maintenance Improve Asset Life Cycles?
Modern diagnostic tools move beyond "pass/fail" results by providing trendable data. By recording precise travel curves and vibration signatures, a **Portable Breaker Operational Tester** allows for predictive modeling. When velocity begins to degrade or contact bounce increases, maintenance can be scheduled proactively. This structured approach to data ensures that expensive GIS and SF6 assets reach or exceed their 30-year design life without environmental leakage or mechanical failure.

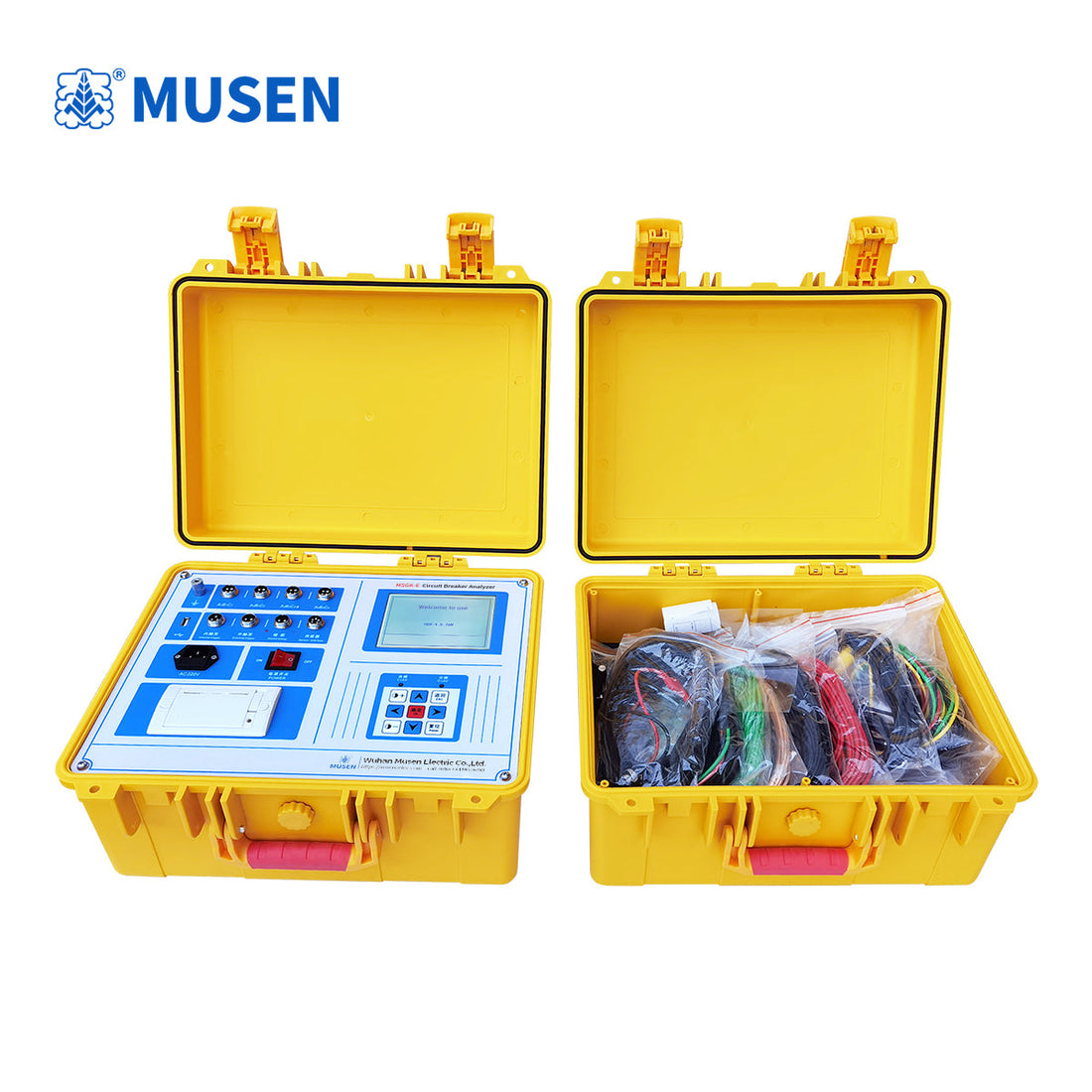

5. Technical Specifications: MSGK-E Circuit Breaker Analyzer
Engineered for excellence by Wuhan Musen Electric Co., Ltd., the MSGK-E series represents the pinnacle of diagnostic accuracy for global power utilities.
◆ System Architecture: Built on high-stability industrial computer architecture, designed for all metal-contact SF6 switches, GIS, vacuum, and oil breakers produced worldwide.
◆ High-Precision Sensors: Compatible with acceleration, rotary, and linear sensors for effortless installation and precise measurement of three-phase timing, travel, and clearance.
◆ Advanced Triggering Logic: Supports internal, external, sensor-based, and manual triggers for maximum field flexibility.
◆ Power Management: Integrated 20A adjustable energy storage power supply allows for automated motor charging without external cabling adjustments.
6. Frequently Asked Questions (FAQ)
Q: Can this analyzer detect internal mechanical wear in SF6 breakers without gas extraction?
A: Yes. By analyzing the speed and travel curves captured externally, the **Circuit Breaker Analyzer** can pinpoint internal friction or damper failure without disturbing the SF6 environment.
Q: Does the equipment support testing for GIS combination appliances?
A: Absolutely. The MSGK-E is specifically optimized for GIS systems, providing accurate timing and travel data even in high-electromagnetic interference environments.
Q: What is the benefit of the integrated 20A power supply for field engineers?
A: It provides a self-contained power source to charge the breaker's motor, reducing the amount of heavy auxiliary equipment needed on-site and ensuring a faster, safer setup process.
Q: Is the software interface compatible with international reporting standards?
A: Yes, the data generated is structured for easy integration into utility asset management systems and complies with global electrical testing documentation requirements.
