 1. Why is 110kV Cable Accessory Insulation Withstand Voltage Testing Essential for Grid Stability?**

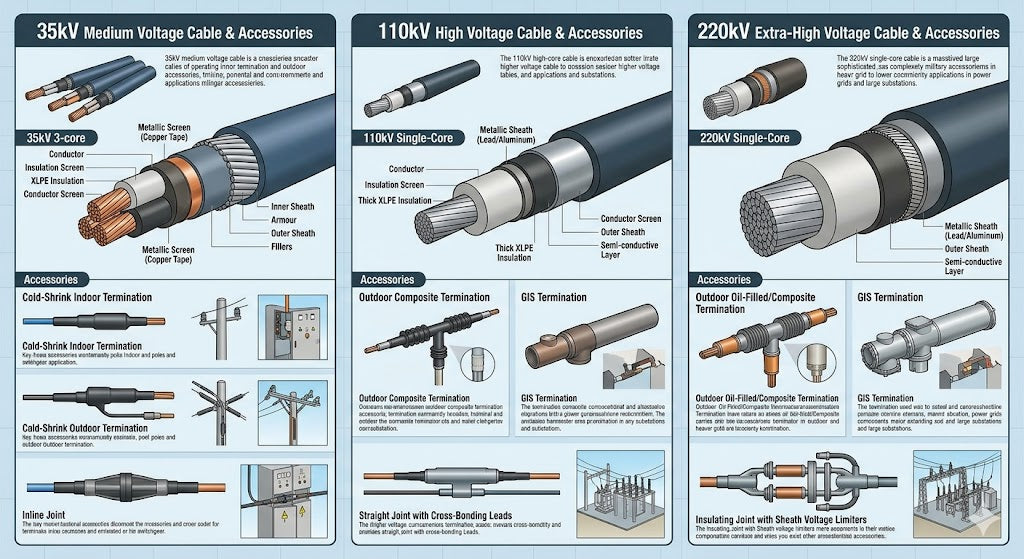

In the modern power industry, the reliability of 110kV high-voltage transmission lines is the backbone of urban and industrial electricity supply. While the cable itself is manufactured under strict factory conditions, the installation of terminations and intermediate joints—collectively known as cable accessories—occurs on-site. This makes them the most vulnerable points in the system. Implementing professional  Insulation Withstand Voltage Testing Methods for 110kV Cable Accessories** is not just a regulatory requirement; it is a vital safeguard against catastrophic dielectric breakdown. For power cable manufacturing plants and testing units, verifying the integrity of these components during handover or preventive maintenance ensures that the insulation can withstand the extreme electrical stresses of the operational grid.

 2. Technical Standards and Standardized Testing Parameters**

Adhering to international standards such as IEC 60840 and relevant national grid codes is mandatory for any high-voltage project. For 110kV systems (specifically 64/110kV), the testing parameters are data-driven. Typically, the AC withstand voltage is set at 2.0U₀ to 2.5U₀, depending on whether the test is for initial commissioning or routine preventive maintenance. The transition from DC testing to AC variable frequency series resonance has become the global industry standard. This shift is due to the "space charge" phenomenon in XLPE (Cross-linked Polyethylene) insulation, where DC stress can trap charges that eventually lead to insulation failure once the cable is returned to AC service. By utilizing   Insulation Withstand Voltage Testing Methods for 110kV Cable Accessories**, engineers can simulate real-world operating conditions without compromising the long-term molecular integrity of the cable's main insulation.

3. Optimized Equipment Suite for 10kV to 220kV Power Systems

Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) provides a comprehensive range of professional testing instruments designed for manufacturers, utility providers, and specialized testing units. Our equipment covers the full lifecycle of the cable—from factory acceptance and handover to long-term preventive maintenance. The following technical fleet is engineered for accuracy and field durability:

* **Outer Sheath Integrity:** The **MSZGF 120kV/2mA DC High Voltage Generator** is utilized for DC withstand and leakage current measurements of the cable’s outer sheath, ensuring the metallic screen is protected from environmental corrosion.
* **Main Insulation AC Withstand (10kV-35kV):** The **MSXB-F Series 135kVA/108kV** is the preferred choice for 35kV cable systems, providing high-efficiency resonance for core field testing.
* **High-Capacity 220kV Testing:** For extra-high voltage projects, the **MSXB-F Series 2500kVA/500kV** offers the necessary power and voltage range for 220kV cable commissioning.
* **VLF Field Solutions:** The **Ultra-Low Frequency High Voltage Generator (0.1Hz)** is ideal for XLPE cable testing in space-constrained environments.
* **Dielectric Loss Diagnostics:** The **MS-101D1 Dielectric Loss Tester** identifies moisture ingress and insulation aging through Tan Delta analysis.
* **Insulation Resistance Measurement:** Digital **MS-3126A (5kV/10kV)** megohmmeters provide essential baseline data before any high-voltage application.
* **Conductor Quality Acceptance:** The **MS-510R (10A) DC Resistance Tester** verifies conductor quality and connection integrity.
* **Phase Verification:** The **HBR-900 Wireless High Voltage Phase Verifier (35kV/220kV Universal)** ensures correct alignment before the cable is energized.

4. Advanced Procedures for Implementing 110kV Testing Methods**

The execution of   Insulation Withstand Voltage Testing Methods for 110kV Cable Accessories** requires a structured approach. First, the series resonance circuit must be tuned to match the capacitive load of the cable, typically operating within a frequency range of 30Hz to 300Hz. This method is highly efficient, as the system only needs to provide the active power losses of the circuit, while the high-voltage reactor provides the reactive power. During the test, voltage is elevated in stages—starting at 30%, moving to 60%, and finally 100% of the target value. A successful test is defined by a stable waveform and the absence of any discharge or breakdown over a 60-minute duration. This rigorous verification process, supported by Wuhan Musen Electric Co., Ltd. technology, guarantees that every joint and termination is ready for decades of service.

 5. Frequently Asked Questions (FAQ)**

**Q1: Why is the AC resonance method superior to traditional testing?**
AC resonance testing provides a pure sine wave that mimics actual grid conditions. It is safer for XLPE cables because it prevents harmful space charge accumulation and requires significantly less input power compared to non-resonant testing systems.

**Q2: What are the typical failure indicators during a 110kV withstand test?**
Indicators include a sudden "trip" of the resonant system, unstable voltage readings, or excessive leakage current. These often point to installation errors in the cable accessories, such as improperly positioned stress cones or moisture trapped within the joint.

**Q3: Can the same equipment be used for both 110kV and 220kV cables?**
While the principles are the same, the power requirements for 220kV are much higher. Wuhan Musen Electric offers the MSXB-F series with modular reactors that can be configured in series or parallel to meet the specific voltage and current requirements of both 110kV and 220kV systems.

**Q4: Is an insulation resistance test necessary if I am performing a withstand test?**
Yes. An insulation resistance test using a 5kV or 10kV tester should always be performed before the withstand test to ensure the cable is safe to energize, and after the test to confirm that the high voltage did not cause latent damage.
