Ensuring the seamless operation of high-voltage networks requires more than just high-quality manufacturing. For overseas power engineering firms and utility operators, the transition from cable installation to full-load energization is a high-risk phase. Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) specializes in providing the precision instrumentation required to bridge the gap between installation and long-term grid stability through rigorous **Power Cable Manufacturer Testing** protocols.

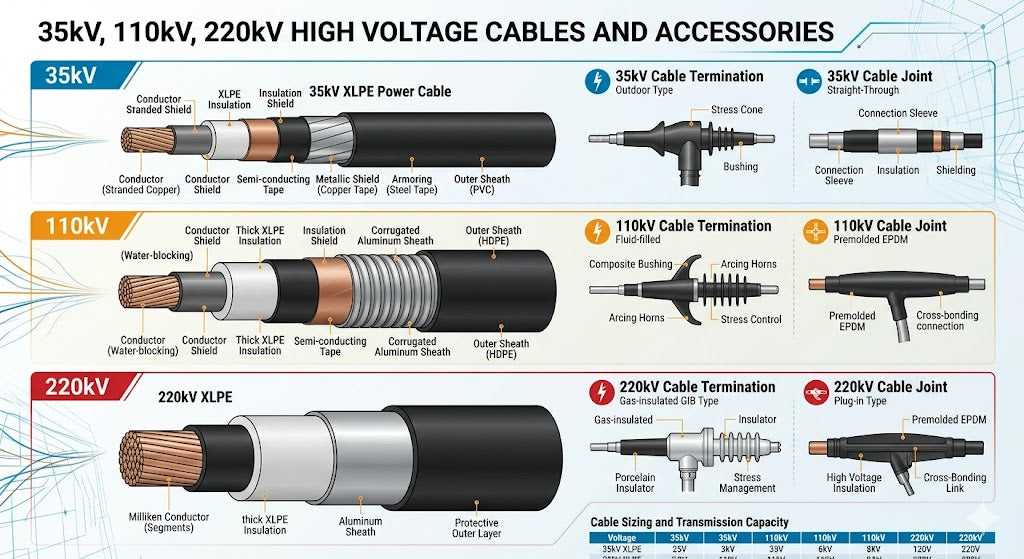

1. How to Verify Outer Sheath Integrity in EHV Cables?
The integrity of the cable's outer sheath is vital for protecting the main insulation from moisture and chemical corrosion. Our specialized solution involves the MSZGF 120kV/2mA DC High Voltage Generator. This equipment is designed for DC withstand and leakage current measurements, specifically targeting the detection of mechanical damage incurred during the cable-laying process. Maintaining a leakage current within strict micro-ampere limits is a primary KPI for any successful commissioning project.
2. What is the Best Method for Main Insulation AC Withstand Tests?
For 35kV to 220kV XLPE cables, standard DC testing is largely obsolete due to the risk of space charge accumulation. The industry standard now dictates Variable Frequency Resonant Systems. Wuhan Musen Electric offers two primary tiers of power frequency solutions:
- For 35kV Networks: The MSXB-F Series 135kVA/108kV provides a lightweight, portable resonance solution for field handover tests.
- For 220kV Infrastructure: The MSXB-F Series 2500kVA/500kV supports the massive capacitive loads found in extra-high voltage transmission lines, ensuring a pure sine wave output that replicates real-world stress.
3. Can Advanced Diagnostics Prevent Future Cable Failures?
Preventive maintenance is shifting from "time-based" to "condition-based" assessments. To achieve this, **Power Cable Manufacturer Testing** must include dielectric loss analysis and insulation resistance mapping. Using the MS-101D1 Dielectric Loss Tester, engineers can quantify the aging factor (Tan Delta) of the insulation. Coupled with the MS-3126A Insulation Resistance Tester (5kV/10kV), these tools provide a data-driven overview of the cable’s health, identifying moisture ingress before a flashover occurs.
4. Why is Pre-Energization Phasing and Quality Acceptance Crucial?
Before the final connection to the substation busbar, the conductor quality and phase sequence must be verified. The MS-510R (10A) DC Resistance Tester ensures the conductor’s cross-sectional consistency and material quality meet international resistance standards. Furthermore, the HBR-900 Wireless High Voltage Phase Auditor (35kV/220kV Universal) is employed to prevent anti-phase errors, a critical step in protecting transformers and switchgear from terminal damage during synchronization.
5. Are Compact Solutions Effective for Field Commissioning?
In urban environments where large resonant trailers cannot reach, **Power Cable Manufacturer Testing** utilizes Ultra-Low Frequency (VLF) technology. The 0.1Hz VLF High Voltage Generator is an ideal choice for testing XLPE main insulation on 10kV-35kV lines. It offers the destructive testing power required to find insulation voids while remaining small enough for manual transport into basement vaults or remote sites.
Industry FAQ: Common Inquiries from Power Engineering Professionals
Q: What equipment is needed for a full 220kV cable handover?
A complete kit includes a 2500kVA Resonant System for AC withstand, a 10kV Insulation Resistance tester, a Wireless Phase Auditor for sequence check, and a DC Resistance tester for conductor quality.
Q: How does Tan Delta testing improve cable life expectancy?
By measuring the dissipation factor, you can identify "water trees" or thermal aging in XLPE cables. Early detection allows for scheduled repairs rather than emergency outages.
Q: Is the HBR-900 suitable for both overhead and underground systems?
Yes, the HBR-900 is a universal wireless solution designed for both 35kV and 220kV applications, making it ideal for verifying phase consistency across diverse cable joints and terminations.
