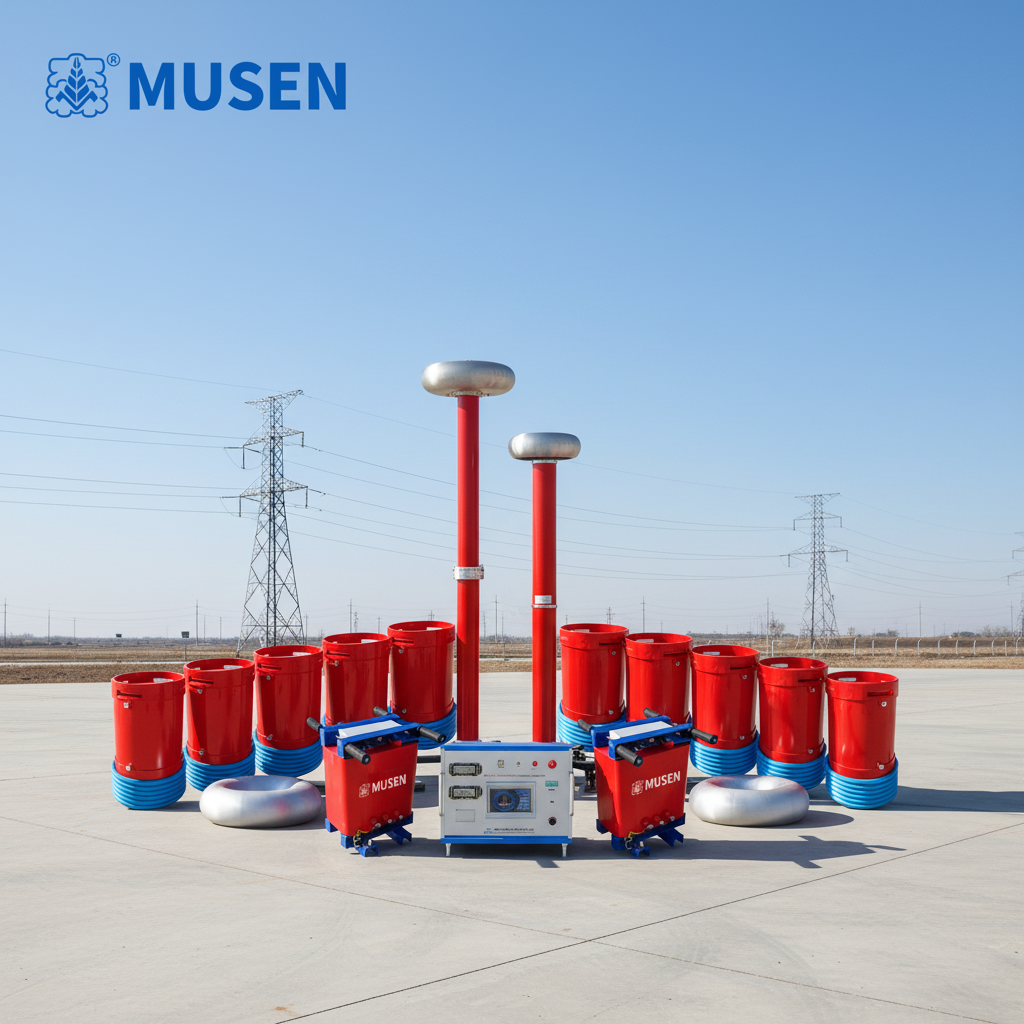

Why Has the Variable Frequency Resonant Testing System Become a Core Tool in Power Engineering?

In the field of power engineering, the variable frequency resonant testing system (VFR) has emerged as a critical tool for ensuring the reliability and safety of high-voltage equipment. This article explores why this system has become so essential, covering its advantages, applications, and impact on electrical power testing. Through this guide, we aim to provide clear insights into the growing importance of VFR systems in power engineering.

What is a Variable Frequency Resonant Testing System?

A variable frequency resonant testing system is designed to apply high-voltage AC tests on electrical equipment to determine its insulation strength. By varying the frequency of the applied voltage, this system creates resonance with the device under test (DUT), allowing for accurate testing under real-world conditions. It is widely used for high-voltage power equipment such as transformers, cables, and switchgear.

Key Benefits of Variable Frequency Resonant Testing

• Precise Voltage Control: The VFR system allows engineers to apply a controlled high-voltage AC with adjustable frequency, ensuring that the testing is more accurate.

• Enhanced Safety: By simulating actual operational conditions, it can better predict potential failures, reducing risks and improving safety.

• Cost-Effective: The system uses less energy compared to traditional testing methods, making it an economical choice for power utilities.

Why is the VFR System Important in Power Engineering?

1. Accurate Simulation of Operating Conditions

The ability of a variable frequency resonant testing system to simulate real operational conditions is one of its greatest strengths. Electrical equipment, such as cables and transformers, is often subjected to fluctuating electrical loads in real-world conditions. By adjusting the frequency of the applied voltage, the VFR system can replicate these variations, ensuring that the equipment can withstand not only static but also dynamic electrical stresses.

2. Reduced Power Consumption and Operational Costs

Traditional withstand voltage testing methods often require high power input, resulting in higher costs. The variable frequency resonant testing system, on the other hand, uses resonant circuits to minimize power consumption. This makes it more energy-efficient and cost-effective for power engineers, especially in large-scale testing environments.

3. Flexibility in Testing High-Voltage Equipment

The VFR system is versatile and can be applied to a wide range of high-voltage equipment, such as:

• Transformers: Ensures the insulation quality of transformers under varying load conditions.

• Switchgear: Tests the electrical integrity and safety of switchgear in real operational environments.

• Cables: Assesses the insulation strength of high-voltage cables, ensuring their performance under stress.

This flexibility makes the VFR system a core tool for power stations, substations, and electrical contractors globally.

4. Improved Testing Accuracy and Reliability

Unlike traditional methods that rely on fixed-frequency testing, the VFR system allows for adjustable frequencies during testing, improving accuracy and reliability. By fine-tuning the frequency, engineers can conduct tests at different voltage levels to pinpoint potential issues that might not be visible under standard conditions.

How the VFR System Impacts Power Testing in Electrical Engineering

1. Meets Industry Standards

Power engineers often work under strict industry standards that demand high-quality testing of electrical equipment. The VFR system not only meets but often exceeds these standards, offering compliance with international regulations. This makes it a trusted tool for companies worldwide, particularly in regions with stringent electrical safety regulations.

2. Easier Field Testing and Portability

One of the greatest advantages of the VFR system is its portability. With a compact design and easy-to-use interface, the system can be easily transported to remote testing locations. This portability makes it ideal for field engineers conducting on-site tests at power stations, substations, or even large construction projects.

3. Integration with Modern Digital Systems

Modern VFR systems are equipped with digital interfaces and control panels, providing enhanced user interaction. These systems often feature real-time data monitoring, automatic adjustments, and advanced reporting tools, which significantly reduce the time and effort required to complete testing.

Wuhan Musen Electric Co., Ltd. – Your Source for Advanced VFR Systems

Product Overview

At Wuhan Musen Electric Co., Ltd., we offer a range of high-performance variable frequency resonant testing systems that are designed to meet the demands of modern power engineering. Our systems are suitable for testing equipment such as high-voltage transformers, switchgear, and cables, providing precise and reliable results.

Key Features of Musen Electric’s VFR Systems

1. Energy Efficiency: Reduced power consumption compared to traditional testing systems.

2. Flexible Frequency Control: Adjustable frequencies for a more precise and adaptable testing process.

3. Safety Features: Includes over-voltage and over-current protection to ensure safe operation.

4. User-Friendly Interface: Features a digital control panel for easy operation and data logging.

5. Portability: Compact design for easy transportation and field testing.

For more information about our advanced variable frequency resonant testing systems, visit our official website.

 The Future of Power Engineering Testing

The Resonance Test System – musenelectric.comhas solidified its role as a core tool in the power engineering industry due to its accuracy, efficiency, and flexibility. By offering precise voltage control, energy savings, and enhanced safety, this system is becoming indispensable for testing high-voltage equipment across various applications. At Wuhan Musen Electric Co., Ltd., we are proud to offer top-tier VFR systems that support the evolving needs of the electrical power industry.

For a reliable and cost-effective testing solution, look no further than our advanced variable frequency resonant testing systems.
