Why Gas-Insulated Test Transformers Are Superior for Underground and Urban Substation Maintenance
Why Gas-Insulated Test Transformers Are Superior for Underground and Urban Substation Maintenance

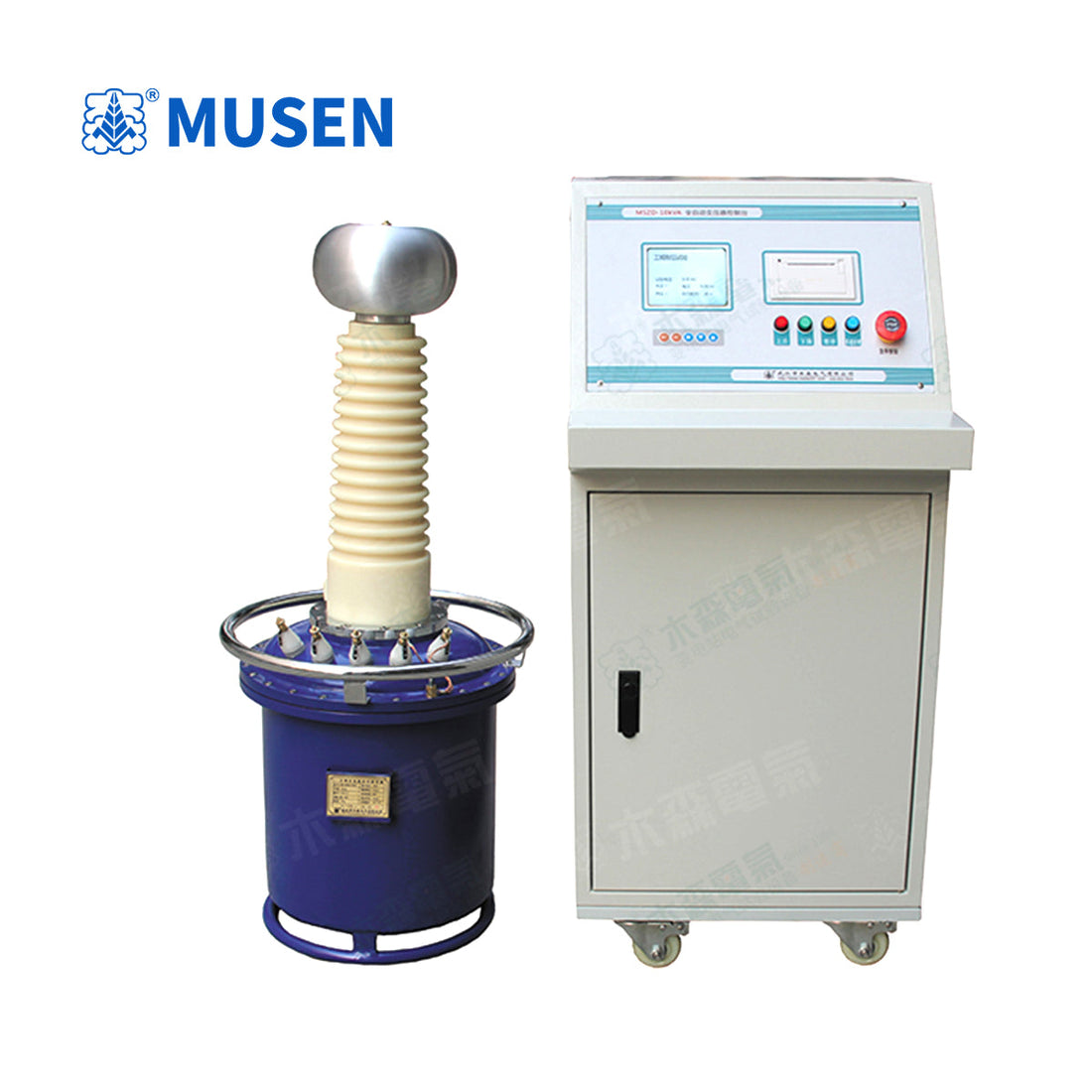

A gas-insulated test transformer is a specialized high-voltage AC step-up testing apparatus that uses pressurized sulfur hexafluoride (SF6) gas to replace traditional dielectric transformer oil. For urban underground substations, GIS rooms, and densely populated municipal grid infrastructure, the YDQ series gas-insulated test transformer delivers high-voltage power-frequency withstand testing while eliminating oil leak hazards, fire risks, and lifting access restrictions mandated by urban safety regulations.
What Fire Safety and Environmental Standards Apply to Urban Substation Testing?
Metropolitan electrical utilities and municipal fire codes strictly regulate high-voltage testing inside subterranean vaults and enclosed commercial buildings. Traditional mineral-oil-immersed test equipment carries inherent risks of fluid leakage and thermal combustion (governed by ASTM D1816 and IEC 60296 standards). In contrast, an SF6-filled gas-insulated test transformer utilizes non-flammable, non-explosive gas meeting IEC 60376 specifications, satisfying fire protection requirements for indoor and underground substations without requiring specialized containment bunds.
|
Deployment Factor |
Conventional Oil-Immersed Set |
YDQ Gas-Insulated Set |
Urban Substation Impact |
|---|---|---|---|
|
Combustibility & Fire Hazard |
High (Class A Flammable Liquid) |
Zero (Non-flammable SF6 Gas) |
Complies with strict urban indoor fire safety codes |
|
Environmental Leak Risk |
Risk of oil spills in drainage |
Hermetically sealed, oil-free |
Eliminates soil and groundwater contamination risks |
|
Equipment Mass (100kV Class) |
100 kg - 160 kg |
45 kg - 65 kg |
Permits elevator/manhole access without heavy cranes |
|
Maintenance Downtime |
Requires fluid reconditioning |
Maintenance-free, zero oil filtering |
Reduces operational downtime during emergency outages |
How Do the YDQ-10kVA/100kV and YDQ-20kVA/100kV Solve Urban Access Challenges?
Subterranean switchgear rooms often lack overhead cranes and heavy freight access points, making traditional test sets impractical to transport. The YDQ-10kVA/100kV (45 kg) and YDQ-20kVA/100kV (60 kg) units feature compact aluminum alloy casings that reduce overall mass by 40%–60%. Two field technicians can manually carry these units through narrow access corridors, elevators, and manholes to perform 35kV to 110kV switchgear acceptance tests per IEC 62271-200.
Step-by-Step Field Commissioning Protocol in Enclosed Spaces
1. Site Preparation & Pressure Verification
Inspect the integrated temperature-compensated pressure gauge on the YDQ unit to ensure SF6 pressure reads between 0.38 MPa and 0.42 MPa. Verify local ventilation and establish a single point ground connection to the substation ground bus using 16 mm² flexible copper grounding straps.
2. HV Interconnection and Voltage Ramping
Connect the high-voltage output bushing to the target equipment (e.g., 35kV vacuum circuit breaker) with an inline current-limiting damping resistor. Increase test voltage linearly at 2 kV/s up to the standard test level (e.g., 95 kV AC for 1 minute per IEC 60060-1) while monitoring capacitive leakage current.
Q: What happens if ambient temperatures drop below zero during winter field operations?
A: SF6 gas remains in a stable gaseous phase at standard operating pressures (0.4 MPa) down to -30°C. The dielectric breakdown strength of the YDQ gas-insulated test transformer remains consistent, eliminating the viscosity and cold-start breakdown issues common with transformer oil.
Q: How does the total maintenance cost over 5 years compare between gas-insulated and oil-filled sets?
A: Gas-insulated units incur near-zero routine maintenance expenses because they eliminate oil sampling, moisture removal, and gasket replacements (ASTM D877). This yields an estimated 30% reduction in total cost of ownership (TCO) over 5 years.
