### **Why Do You Need Transformer Test Equipment for Modern Substations?**

Electrical substations are the backbone of modern power transmission networks. Within these critical nodes, transformers play a vital role in stepping up and stepping down voltage levels to maintain grid stability. However, continuous exposure to high electrical, thermal, and mechanical stresses can lead to insulation degradation, winding deformation, or core abnormalities. Regular maintenance and the use of precise **Transformer Test Equipment** are essential for verifying winding configurations and ensuring the safety and reliability of power systems.

### **1. The Importance of Turn Ratio Measurements**

The transformation ratio test is one of the most fundamental diagnostic procedures performed on power transformers. The physical winding ratio must match the nameplate specifications to prevent voltage imbalances and circulating currents. When a transformer is subjected to through-faults or thermal cycling, the active number of turns can change due to inter-turn short circuits or mechanical shifting. By measuring the ratio of primary to secondary voltage or current, field engineers can verify the integrity of the windings and tap changers without de-energizing the core for invasive inspections.

### **2. Understanding Transformer Vector Groups and Phase Shifts**

Transformers are designed with various vector group configurations, such as Delta, Wye, and Zig-Zag, each defining the phase displacement between the primary and secondary sides. A reliable testing device must be capable of identifying the vector group and measuring the phase angle accurately. If a transformer is reconnected or replaced, verifying the vector group is mandatory to prevent massive circulating currents and equipment destruction when operated in parallel with the rest of the grid. Any unexpected phase shift signals severe internal structural defects.

### **3. Diagnosing Common Transformer Failure Modes**

Transformers are susceptible to several failure modes during their operational lifespan. Detecting these conditions early prevents catastrophic failures:
* Inter-turn Short Circuits: The breakdown of paper insulation between adjacent turns causes a localized short circuit, resulting in a sudden drop in the transformation ratio.
* Tap Changer Wear: The mechanical contacts of tap changers degrade over time, leading to increased contact resistance and fluctuating ratios across different tap positions.
* Core Insulation Degradation: Increased core losses occur when inter-lamination insulation fails, which can be identified by comparing ratio test results with excitation current data.

### **4. Technical Specifications and Advantages of Modern Devices**

Investing in high-quality **Transformer Test Equipment** ensures that the transformation ratio remains within acceptable tolerances, typically within 0.5% of the nameplate rating. Modern field units are engineered to operate in harsh substation environments while providing high-resolution measurements.

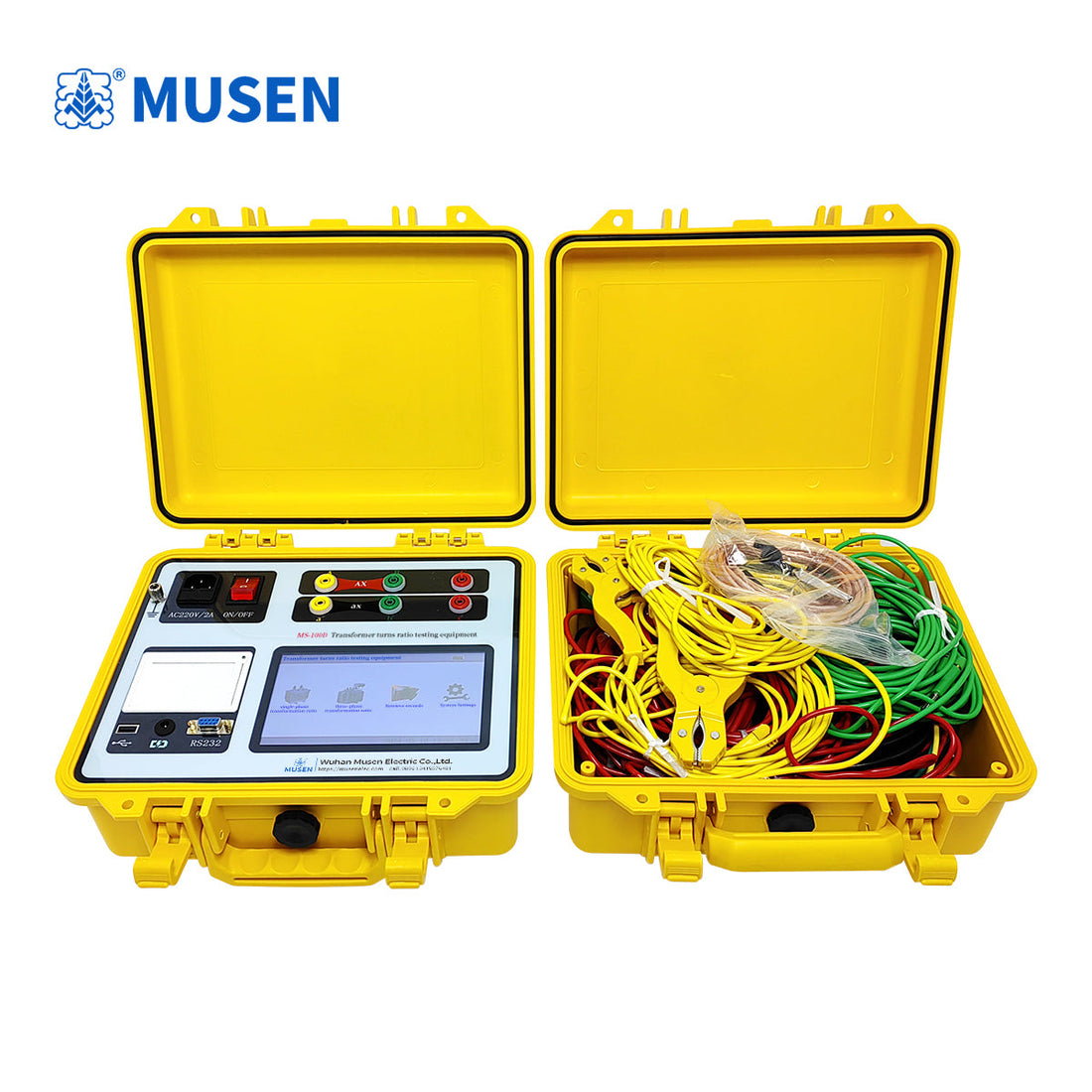

The technical features of the testing system include:
* ① Test range is wide, up to 10000.
* ② Fast testing speed, completing single-phase testing within 5 seconds.
* ③ Supports single-phase, three-phase, and Z-type transformer testing.
* ④ Features blind transformation ratio measurement, vector group test, and tap position test functions.
* ⑤ High and low voltage reverse connection protection.
* ⑥ Transformer short circuit and inter-turn short circuit protection.

### **5. Safety Protocols for Substation Testing**

Selecting the correct **Transformer Test Equipment** depends on the specific requirements of the substation. High voltage can be induced on the secondary terminals if the primary side is accidentally energized during maintenance. Therefore, modern units are equipped with advanced safety functions, including short-circuit and reverse-connection protection. Field engineers must always adhere to strict isolation and grounding procedures before connecting the testing leads. Using equipment with automated test sequences and integrated safety features minimizes human error and protects both personnel and substation assets.

### **Conclusion**

Maintaining power transformers requires a proactive diagnostic approach. Regular turn ratio and phase angle measurements are essential for detecting early signs of degradation. By equipping field teams with robust testing devices from Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)), power companies can prevent costly downtime and ensure the continuous, safe operation of their electrical infrastructure.

### **Frequently Asked Questions (FAQ)**

Q1: How often should substation transformer ratio testing be conducted?
A1: It is generally recommended to perform turn ratio and voltage ratio tests every 2 to 5 years, or immediately following severe system faults or electrical disturbances.

Q2: Why is the vector group test important for parallel operation?
A2: Verifying the vector group ensures that the phase displacement matches network requirements, preventing severe circulating currents when transformers operate in parallel.

Q3: What does a high turn ratio deviation indicate?
A3: A high deviation usually indicates inter-turn short circuits, winding deformation, or internal connection issues that require immediate investigation.

Q4: Can we test three-phase transformers with a single-phase instrument?
A4: Yes, but modern three-phase testing equipment offers significantly faster test speeds, such as completing tests within 5 seconds for single-phase operations.
