Partial Discharge Free High Voltage Test Transformer, PD Free AC Test System, High Voltage Dielectric Testing, Musen Electric, YDQW Series1. How Does PD-Free Testing Ensure Grid Reliability for Power Utilities?
For overseas power engineering firms and utility operators, the reliability of high-voltage assets is non-negotiable. A Partial Discharge Free High Voltage Test Transformer is the primary tool used to validate the integrity of insulation systems in transformers, GIS, and cables. Unlike standard AC test sets, these systems eliminate background electromagnetic interference, allowing for the detection of insulation defects at the microscopic level. By maintaining a background noise level below 5pC, engineers can identify potential breakdown points long before they cause a catastrophic field failure.
2. What Technical Advantages Define the Musen Electric PD Free AC Test System?
Modern electrical infrastructure demands equipment that is both precise and portable. Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) has engineered the Partial Discharge Free AC Test System to meet stringent international standards. These systems utilize SF6 gas insulation, which offers superior dielectric strength compared to traditional oil-filled units. This technology allows for a significant reduction in equipment weight and volume, making it an ideal solution for both factory routine tests and on-site commissioning of high-voltage components.
3. Why is the Integrated Structure Critical for High-Precision Dielectric Analysis?
Traditional testing setups often suffer from "stray" partial discharge caused by external wiring and separate components. The high-performance Partial Discharge Free High Voltage Test Transformer manufactured by Musen Electric features a highly integrated design. By housing the coupling capacitor, voltage divider, and current-limiting resistor within a single, metal-shielded enclosure, the system creates a Faraday cage effect. This structural integration minimizes interference and ensures that the sensitivity of the PD measurement remains undisputed during high-stress dielectric testing.
4. Product Specifications and Performance Data: YDQW Series
The YDQW series represents the pinnacle of gas-insulated testing technology, specifically designed for manufacturers of electrical components and insulation materials.

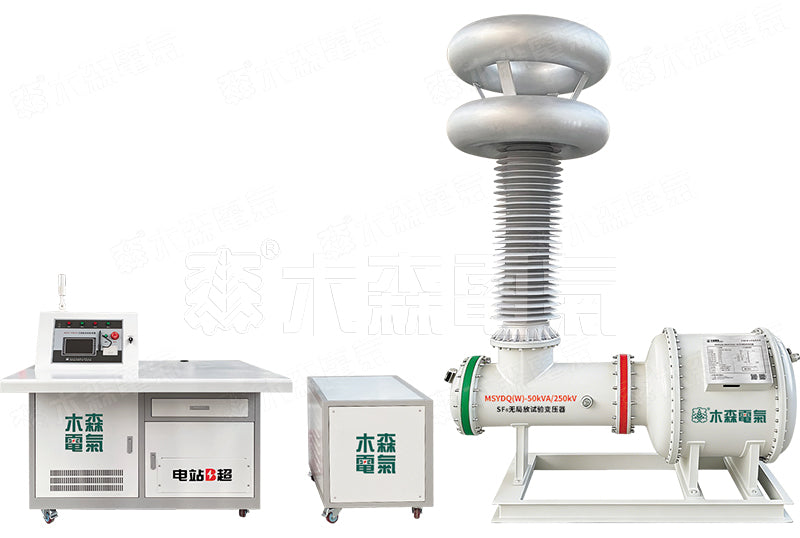

Available Models: YDQW 30kVA/100kV | YDQW 50kVA/250kV | YDQW 250kVA/550kV
- • Exceptional Dielectric Performance: Advanced arc-quenching capability and superior insulation reliability using non-combustible SF6 gas.
- • Integrated Shielding: Built-in current-limiting resistors and coupling capacitors ensure a total system PD level of ≤ 5pC.
- • Optimized Portability: Lightweight, modular structure allows for rapid installation and reduced footprint in laboratory environments.
- • Maintenance-Free Operation: Fully sealed metallic housing prevents oil contamination; only periodic monitoring of gas density and pressure is required.
- • Environmental Immunity: The system is completely shielded from external humidity, dust, and environmental fluctuations, ensuring repeatable test results.
For more detailed technical documentation, please visit our official website at www.musenelectric.com.
5. Frequently Asked Questions Regarding PD-Free High Voltage Systems
Q1: How does Musen Electric ensure the "PD Free" rating of its transformers?
A: Every Partial Discharge Free High Voltage Test Transformer undergoes rigorous factory calibration where internal noise is measured against calibrated 5pC pulses to guarantee zero interference at rated voltage.
Q2: Is SF6 gas safe for use in indoor testing laboratories?
A: Yes. The SF6 gas used in our systems is non-flammable and remains fully sealed within the metal enclosure. Integrated density monitors provide real-time safety alerts to ensure a secure working environment.
Q3: Can this equipment handle withstand tests for high-capacitance cables?
A: Absolutely. While optimized for PD testing, our systems are robust enough to perform standard AC power frequency withstand tests on motors, generators, and long-length high-voltage cables.
Q4: What is the typical lifespan of the YDQW series?
A: With proper gas pressure monitoring and adherence to operational limits, these gas-insulated systems are designed for a service life exceeding 15-20 years with minimal maintenance costs.
