Why Should You Choose a NO Partial Discharge‑free Test Transformer for High-Voltage Testing?

 Why NO Partial Discharge‑free Transformers Are Essential

High-voltage power testing is a critical process for ensuring the insulation integrity and operational safety of electrical equipment. Partial discharges can compromise insulation, introduce errors in test measurements, and even damage high-voltage apparatus. For international power utilities and engineering companies, accurate and safe testing is a priority. A NO Partial Discharge‑free Test Transformer minimizes these risks by providing precise measurements and consistent performance. Wuhan Musene Electric Co., Ltd. (Musenelec, www.musenelectric.com) manufactures these transformers with advanced insulation and winding technologies, designed to meet the rigorous requirements of global power systems.

1. What Is the Principle Behind NO Partial Discharge‑free Transformers?

The fundamental principle of a NO Partial Discharge‑free Test Transformer lies in advanced insulation design and optimized winding configuration. By ensuring uniform electric field distribution and using high-dielectric materials, the transformer suppresses corona and partial discharges during high-voltage testing. This results in accurate readings that truly reflect the condition of the tested equipment rather than interference from the transformer itself. Musenelec employs precision winding techniques and fully insulated components to minimize localized stress, ensuring both safety and measurement reliability in demanding operational environments.

2. What Are the Advantages of Using NO Partial Discharge‑free Transformers?

NO Partial Discharge‑free Test Transformers offer several significant advantages for high-voltage applications:

1. High Measurement Accuracy: Partial discharge is effectively suppressed, ensuring reliable insulation testing.

2. Enhanced Safety: Lower discharge levels reduce the risk of insulation damage and test errors.

3. Long-Term Stability: These transformers maintain performance over extended operation.

Musenelec’s models are suitable for a wide range of voltages and environmental conditions, making them ideal for overseas utilities and engineering projects that require dependable, precise testing equipment.

3. How to Select the Right NO Partial Discharge‑free Transformer?

Selecting an appropriate transformer involves several critical considerations:

• Voltage rating and capacity: Ensure compatibility with your testing requirements.

• Insulation and winding quality: Verify that the materials provide low partial discharge characteristics.

• Support and services: Musenelec provides full installation guidance, technical consultation, and commissioning assistance for international projects.

Choosing the right transformer ensures accurate test results, minimizes operational risks, and supports the long-term reliability of high-voltage equipment.

4. How to Maintain NO Partial Discharge‑free Transformers for Maximum Reliability?

Maintenance for NO Partial Discharge‑free Transformers is straightforward but essential for reliable operation:

• Inspect winding insulation regularly.

• Monitor gas pressure and density in sealed transformers.

• Clean external housings and check high-voltage connections.

Musenelec’s transformers feature fully sealed metal enclosures that protect against environmental interference, reducing maintenance needs. Following proper maintenance routines ensures prolonged service life, consistent testing accuracy, and operational safety for power systems worldwide.

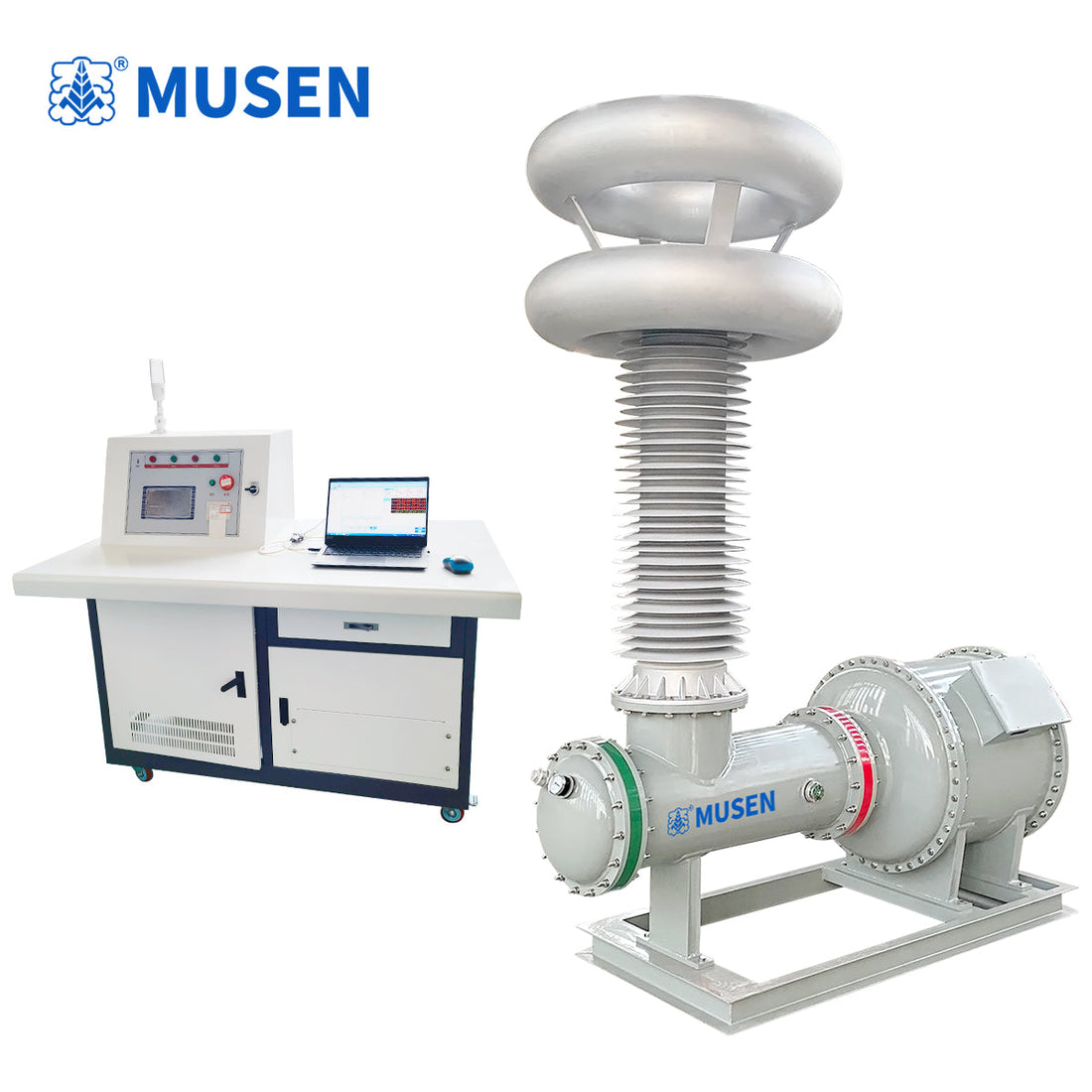

5. Recommended Equipment: MS-YDQW NO Partial Discharge‑free High-Voltage Test Transformer

For international projects, Musenelec recommends the MS-YDQW model. This integrated solution combines a high-voltage transformer, coupling capacitor, current-limiting resistor, and voltage divider into a compact, easy-to-install unit. Key advantages include:

1. Strong arc extinction and superior insulation performance.

2. Fireproof, intrinsically safe with non-flammable gas.

3. Lightweight, highly integrated design.

4. Easy transportation and installation with minimal footprint.

5. Clean, oil-free construction requiring only periodic gas monitoring.

6. Fully enclosed metal housing, unaffected by environmental conditions.

Compared to traditional systems with separate components, which may result in total partial discharge around 10 pC, the MS-YDQW’s integrated design maintains total PD below 5 pC, ensuring highly accurate, reliable testing for critical power equipment.

Ensuring Accurate and Safe High-Voltage Testing

For overseas power utilities and engineering teams, choosing a NO Partial Discharge‑free Test Transformer is essential to achieving safe, precise, and reliable high-voltage testing. Musenelec’s solutions, especially the MS-YDQW model, provide industry-leading measurement accuracy, integrated design, minimal maintenance, and long-term operational stability. Investing in these advanced transformers allows operators to reduce testing errors, protect high-voltage equipment, and maintain reliable power system performance globally.
