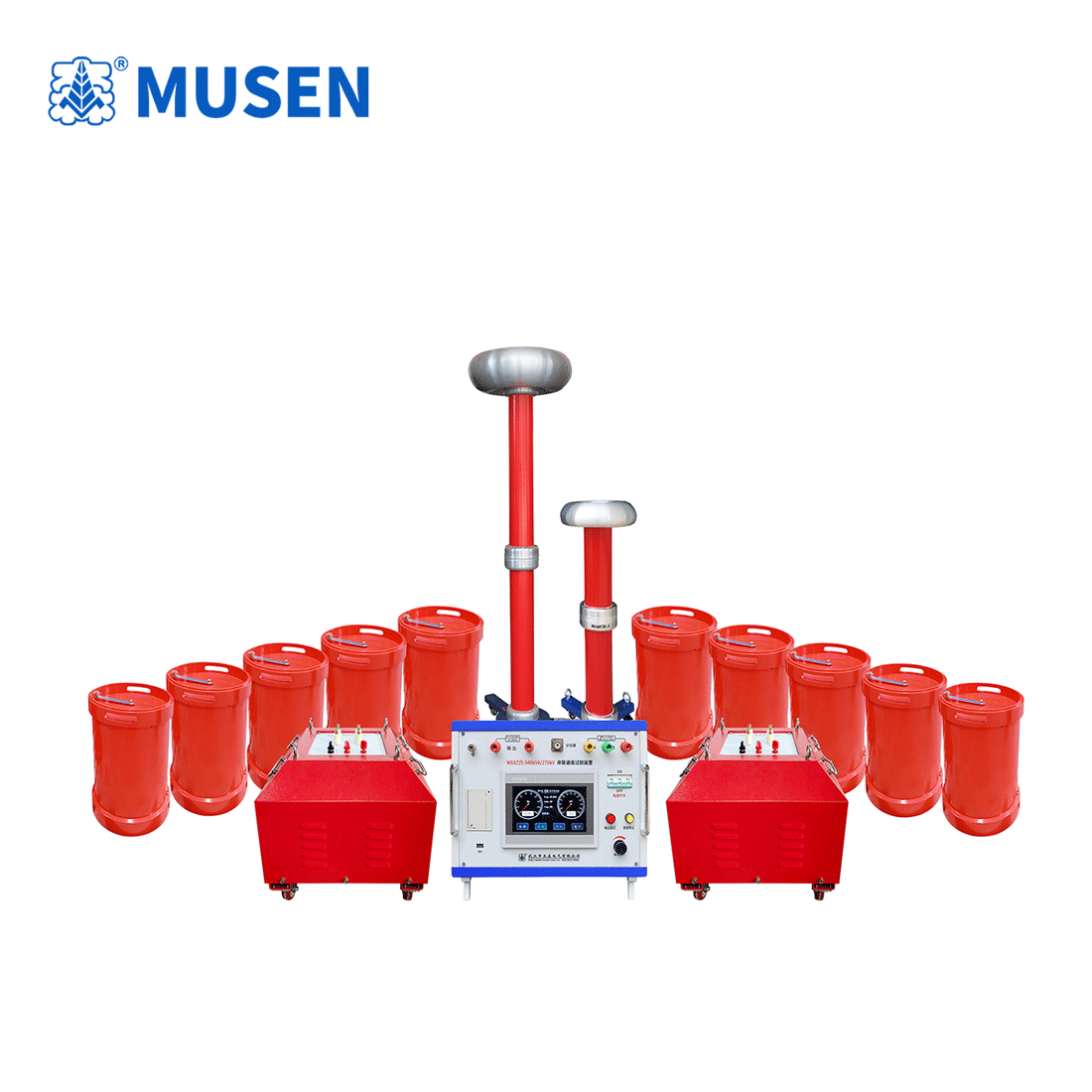

Why Are Resonant Test Systems Crucial for High-Voltage Equipment Testing?

High-voltage insulation testing is essential for ensuring the reliability and safety of electrical systems. Before commissioning high-voltage cables, transformers, and gas-insulated switchgear (GIS), utilities and engineering teams must perform AC withstand tests to confirm insulation integrity.

Traditional AC test equipment often requires large transformers, high input power, and complex installation, which can limit efficiency and flexibility on site. Resonant Test Systems provide a modern solution, offering high efficiency, lower power consumption, and enhanced safety. This article explores their principles, advantages, applications, and why they are preferred in overseas power engineering projects.

 1. How Does the Resonant Principle Improve High-Voltage Testing Efficiency?

A Resonant Test System uses series resonance between an inductor and the device’s capacitance. At the resonant point, the inductive and capacitive reactances cancel, amplifying voltage in the test loop. Most energy circulates between the inductor and the tested equipment, while the power supply only compensates for losses. This allows high voltages with lower power input.

For high-capacity devices such as long HV cables or GIS, this method significantly improves efficiency. The system’s modular design allows customization for voltage levels, test currents, and cable capacitances, ensuring reliable results for both factory and field testing.

 2. Why Do Resonant Test Systems Require Less Power?

Limited input power is a common challenge in high-voltage testing. Traditional AC test setups need large transformers, increasing cost and logistical complexity.

By circulating most energy within the loop, a Resonant Test System dramatically reduces external power requirements. Automatic tuning and frequency adjustment further enhance efficiency while maintaining stable voltage control. This design allows testing in locations with limited supply, such as substations or remote sites, without sacrificing precision or safety.

  3. What Safety Advantages Do Resonant Test Systems Offer?

Safety is critical in high-voltage testing. Resonant Test Systems include multiple protection mechanisms: over-voltage, over-current, zero-position startup, and system detuning detection. In case of insulation failure, the resonant condition immediately breaks, causing voltage to drop quickly and limiting fault energy.

DSP-based control platforms enable automatic fault detection and adaptive tuning, while user-friendly interfaces provide clear monitoring. This ensures stable, safe operation during substation, transformer, or cable testing, making resonant systems ideal for high-stakes field applications.

 4. Which High-Voltage Equipment Benefits Most from Resonant Testing?

Resonant Test Systems are highly adaptable for high-voltage devices, generating precise AC voltage with lower input power. Common applications include:

• High-voltage cable AC withstand testing

• GIS switchgear insulation tests

• Substation equipment commissioning

• Transformer insulation verification

• Reactor and capacitor bank testing

Modular construction and adjustable frequency allow the system to accommodate different voltages and capacities, making it suitable for both factory acceptance and field commissioning.

Recommended Equipment for Power Utilities

Wuhan Musen Electric Co., Ltd. specializes in high-voltage testing equipment for utilities, contractors, and electrical equipment manufacturers.

Recommended Resonant Test Systems applications:

• Substation equipment AC withstand tests

• High-voltage cable testing

• GIS switchgear insulation testing

• Transformer insulation verification

System features:

1. Comprehensive protection: over-voltage, over-current, zero-position startup, and detuning protection

2. Lightweight, modular design for easy transport and on-site use

3. Multiple operating modes: full automatic, manual, and auto-tuning manual

4. Data storage and remote printing for efficient test documentation

5. Adjustable frequency start for automatic sweep tests

6. DSP-based platform for expandable functions and user-friendly interface

For professional solutions, visit: www.musenelectric.com

As power systems evolve with higher voltage levels and larger infrastructures, efficiency, safety, and flexibility in high-voltage testing become increasingly important. Resonant Test Systems deliver precise high voltages with lower power, advanced safety features, and versatile applications, making them the preferred solution for overseas power engineering projects.

By choosing reliable equipment from Wuhan Musen Electric Co., Ltd., utilities and engineering teams can efficiently test cables, transformers, and substation equipment, ensuring long-term system safety and stability.
