Why Are In-Plant Acceptance Standards for 35kV XLPE Cables Critical for Grid Reliability?

 35kV XLPE cable testing, factory acceptance standards, power cable quality control, 220kV cable diagnostics, HV cable testing equipment

Explore the technical requirements of In-Plant Acceptance Standards for 35kV XLPE Cables. Learn how Wuhan Musen Electric Co., Ltd. supports global power projects with advanced 10kV-220kV cable testing solutions and laboratory-grade equipment.1. What Defines the Global Standard for 35kV XLPE Cable Factory Acceptance?**

The reliability of high-voltage networks depends heavily on the  In-Plant Acceptance Standards for 35kV Cross-Linked Polyethylene (XLPE) Cables**. For international power engineering firms and utility operators, these standards are not merely guidelines but mandatory benchmarks that ensure the dielectric strength and longevity of the cable. Factory acceptance testing (FAT) focuses on identifying structural irregularities and material impurities that could lead to catastrophic failure once the cable is energized under 35kV load conditions.

2. Quantitative Verification of Material and Structural Integrity**

Professional cable manufacturing plants and detection units prioritize dimensional accuracy. During the in-plant phase, technicians verify that the XLPE insulation thickness, eccentricity, and the integrity of the semi-conductive layers align with IEC 60502-2. A deviation of even 0.1mm can significantly alter the electrical field distribution. Our testing protocols emphasize that the  In-Plant Acceptance Standards for 35kV Cross-Linked Polyethylene (XLPE) Cables** must include strict physical audits to prevent localized stress points that accelerate treeing within the insulation.

3. Electrical Performance Benchmarks for 10kV to 220kV Systems**

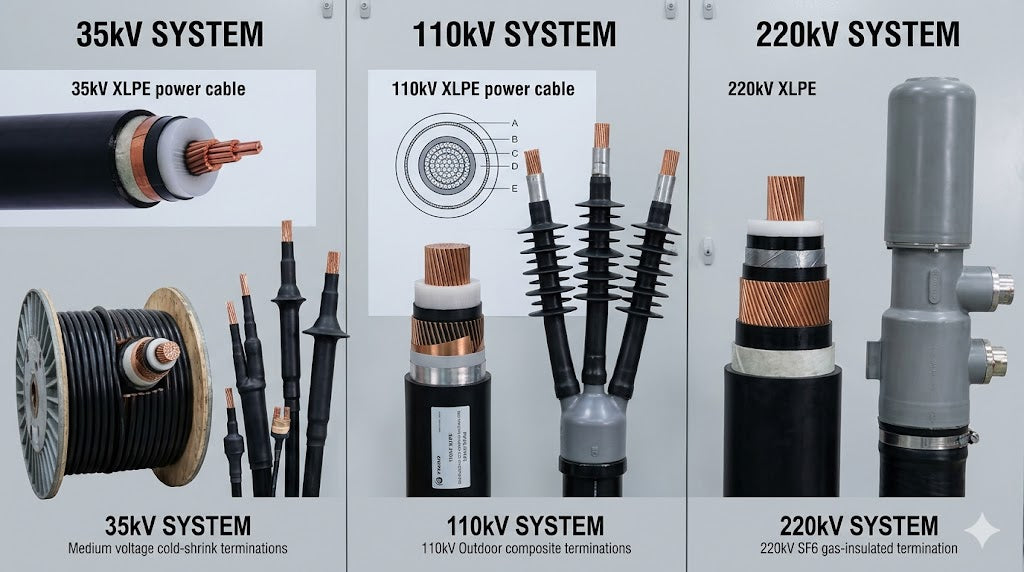

Beyond 35kV, the technical complexity escalates for 110kV and 220kV cable systems. High-voltage power cable manufacturing requires a sophisticated suite of diagnostic tools to validate the factory's output. These include partial discharge (PD) measurements—where levels must remain below 5pC—and AC withstand tests. Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) provides specialized systems that bridge the gap between factory routine tests and site commissioning, ensuring that the

 In-Plant Acceptance Standards for 35kV Cross-Linked Polyethylene (XLPE) Cables** are upheld through every stage of the supply chain.

4. Advanced Equipment for Handover and Preventive Maintenance**

As a premier provider for power cable manufacturing and testing units, Wuhan Musen Electric offers a comprehensive array of experimental equipment. Our solutions cover 10kV, 35kV, 110kV, and 220kV cable projects, focusing on both handover and preventive maintenance:

• **Sheath Integrity & Leakage:** The **MSZGF 120kV/2mA DC High Voltage Generator** is the industry standard for measuring leakage current and testing the outer sheath's DC voltage resistance.
  * **Main Insulation AC Testing:**
      * **MSXB-F Series 135kVA/108kV:** Optimized specifically for 35kV cable main insulation resonance testing.
      * **MSXB-F Series 2500kVA/500kV:** The authoritative choice for 220kV cable field and factory testing.
  * **Alternative Insulation Diagnostics:** The **VLF High Voltage Generator (0.1Hz)** provides a portable, low-frequency solution for XLPE main insulation withstand tests.
  * **Dielectric Analysis:** The **MS-101D1 Dielectric Loss Tester** identifies moisture and insulation defects via Tan Delta analysis.
  * **Resistance Verification:**
      * **MS-3126A (5kV/10kV):** High-precision insulation resistance measurement.
      * **MS-510R (10A):** Ensures conductor DC resistance and wire quality meet the highest conductivity standards.
  * **Pre-operation Safety:** The **HBR-900 Wireless High Voltage Phase Meter** (35kV/220kV Universal) prevents phase reversal and ensures correct synchronization before the cable is put into operation.

5. Frequently Asked Questions (FAQ)**

**Q1: How do these standards prevent "Electrical Treeing" in XLPE cables?**
In-plant standards require rigorous Partial Discharge (PD) testing. By identifying micro-voids during the factory stage, we prevent the initiation of electrical trees, which are the primary cause of long-term XLPE insulation breakdown.

**Q2: Why is the MSXB-F series preferred over traditional transformers for 220kV tests?**
The MSXB-F series uses frequency-tuned resonance, which requires significantly less input power and provides a pure sine wave output. This makes it safer for the cable and more practical for large-scale 220kV infrastructure projects.

**Q3: Can the MS-101D1 detect moisture in older 35kV cable joints?**
Yes. The MS-101D1 measures dielectric loss (Tan Delta). An increase in this value is a direct indicator of moisture ingress or chemical aging in the XLPE material and joint accessories.

**Q4: Is the DC sheath test mandatory for 35kV installations?**
Absolutely. The outer sheath protects the metallic screen from corrosion. A DC withstand test using the MSZGF generator ensures no mechanical damage occurred during the cable laying process.

**Q5: Where can I procure a full set of 220kV cable testing equipment?**
Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) provides complete, integrated testing suites for 10kV through 220kV cable manufacturing and field maintenance units globally.
