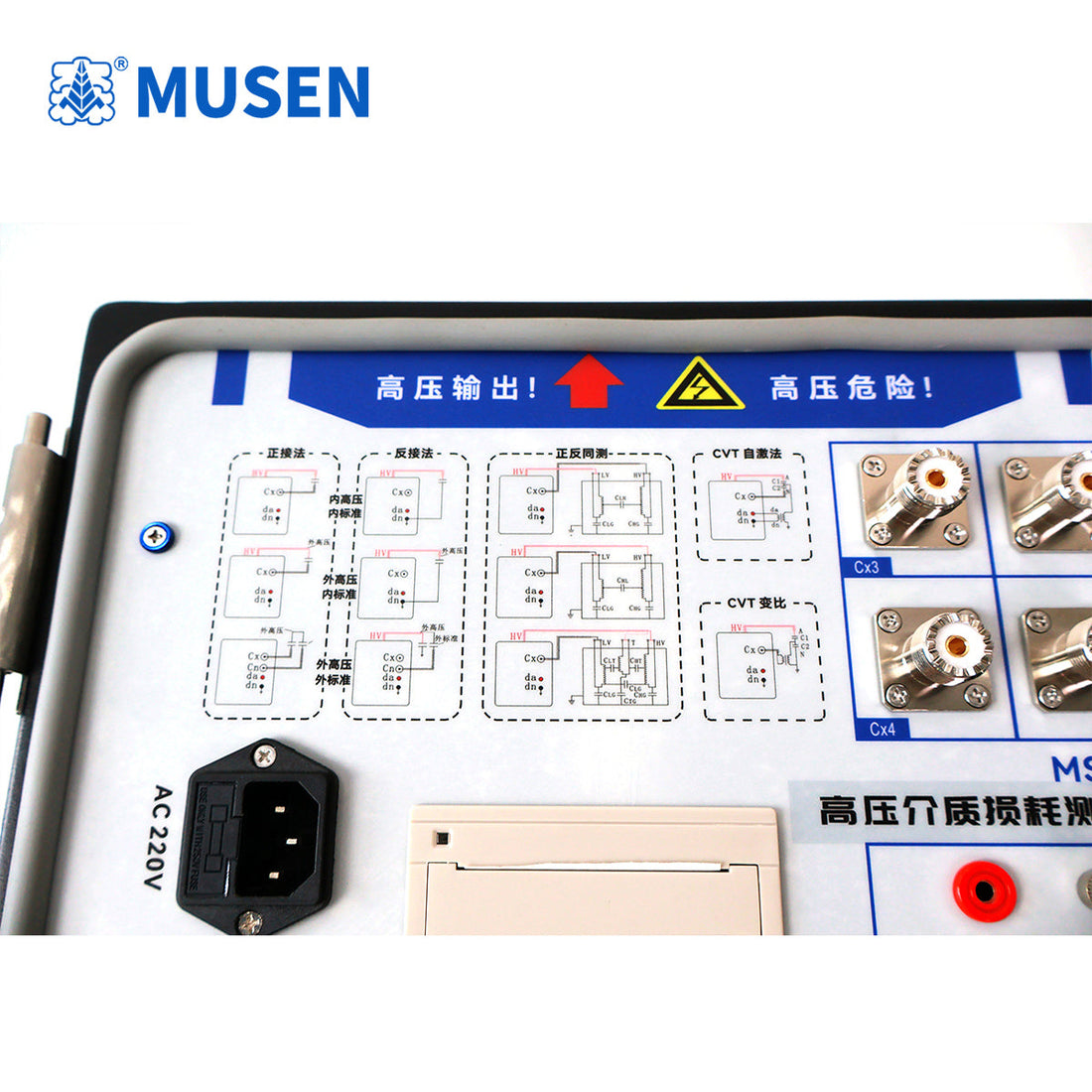

Which Industry Sectors Depend on the MS-101G Series Dielectric Loss Tester?
Which Industry Sectors Depend on the MS-101G Series Dielectric Loss Tester?
The Dielectric Loss Tester MS-101G Series provides high-voltage electrical insulation diagnostics across four primary user groups: national power transmission companies, power generation facilities, third-party testing contractors, and energy-intensive industrial enterprises. Designed for versatility, the system evaluates transformers, rotating electrical machines, insulated cables, and switchgear bushings under rigorous real-world conditions.
1. National and Regional Power Grid Operators
Electrical power distribution groups—such as State Grid, Southern Power Grid, and regional transmission system operators (TSOs)—rely on the MS-101G Series for commissioning, routine substation maintenance, and post-fault forensics.
Substation Asset Diagnostic Applications
Substation maintenance teams utilize the 4-channel measurement mode to evaluate main transformer insulation, current transformers (CTs), voltage transformers (VTs), and circuit breaker bushings. The system assesses polarization index, capacitance variance, and dielectric dissipation factor ($\tan \delta$) in compliance with IEEE C57.12.90 standards.
2. Thermal, Hydro, Nuclear, and Renewable Power Plants
Power generation assets endure severe thermal, mechanical, and electrical stresses. Insulation failure in stator windings or step-up transformers can force costly emergency shutdowns.
| Generation Sector | Primary Target Specimen | Diagnostic Purpose | Applicable Standard |
|---|---|---|---|
| Thermal & Nuclear Stations | Stator bars, main step-up (GSU) transformers | Detect thermal degradation & void formation | IEEE Std 286 / IEC 60085 |
| Hydroelectric Facilities | Large multi-pole generator stator insulation | Assess moisture absorption & resin cure state | IEEE Std 43 / IEC 60216 |
| Wind & Solar Parks | Collector network underground cables, step-up transformers | Locate water treeing & dielectric deterioration | IEC 60502-2 / IEEE 400.2 |
3. Third-Party High-Voltage Testing & Commissioning Contractors
Specialized testing services require versatile field equipment capable of adapting to diverse site requirements. The MS-101G Series supports external power expansion from 40 Hz to 70 Hz, allowing field engineers to pair the instrument with resonant test sets for long cable runs or high-capacitance specimens.
Its light weight, Bluetooth data backhaul, and customizable software profiles allow field crews to generate verified test reports that conform to regional compliance standards, eliminating the need to haul multiple single-purpose test sets between jobs.
4. Heavy Industrial Power Networks
Industrial facilities operating private high-voltage substations and extensive internal distribution networks—such as chemical plants, steel mills, mining operations, and electrified rail networks—use the MS-101G Series to prevent unexpected power interruptions.
Plant engineers utilize the live-line capacitive measurement modes to inspect primary bushings and critical feeder cables without interrupting production processes, safeguarding overall operational continuity.
Frequently Asked Questions
Q: How does the MS-101G Series assess generator stator winding insulation?
A: The unit supplies a clean, variable-frequency AC test signal up to 20kV to evaluate the dissipation factor across single or three-phase stator windings. Step-voltage ramps help isolate thermal aging, mechanical delamination, and slot discharge problems.
Q: Can third-party testing contractors customize the diagnostic output?
A: Yes. The system includes expandable channel configurations, adjustable output voltage steps, and flexible software features to tailor diagnostic reports to specific client or utility guidelines.
Technical Content Reviewed by High-Voltage Diagnostic Specialists
