Which Electrical Products Need an AC/DC Dielectric Strength Tester?
Which Electrical Products Need an AC/DC Dielectric Strength Tester?
AC/DC Dielectric Strength Tester for Electrical Components and Insulation Testing
Discover how an AC/DC Dielectric Strength Tester supports insulation verification for electrical appliances, components, insulating materials, and industrial equipment.
Ac/Dc Withstand Voltage Tester, Ac/Dc High Voltage Tester, Ac/Dc Hipot Tester, Ac Dc Automatic Hipot Tester, Ac/Dc Dielectric Strength Testers
Website: https://www.musenelectric.com/
Why Do Manufacturers Use an AC/DC Dielectric Strength Tester?
An AC/DC Dielectric Strength Tester helps determine whether electrical insulation withstands a prescribed voltage without unacceptable electrical breakdown or flashover. Manufacturers use dielectric withstand testing to identify insulation weaknesses, verify production quality, and assess electrical safety under defined test conditions.
Typical applications include electrical appliances, power components, switchgear, transformer insulation, motors, cables, connectors, and insulating materials. The correct test method depends on the product's rated voltage, insulation construction, applicable product standard, and intended use.
Which Products Can Be Evaluated?
Electrical appliances and electronic assemblies
Electrical appliances may contain accessible conductive parts, live circuits, internal wiring, and insulating barriers. A withstand test can help verify the insulation between specified circuit points or between live parts and accessible conductive surfaces.
For information and communication technology equipment, IEC 62368-1 provides safety requirements for applicable products. The precise dielectric test requirements must be taken from the applicable standard and product configuration.
Electrical components and switchgear
Relays, contactors, connectors, circuit-breaker assemblies, and other electrical components may require dielectric testing during type testing or routine production inspection.
The test voltage must be appropriate for the component's insulation system and terminal arrangement. A generic voltage value should not replace the test requirement established by the relevant product specification.
Insulating materials
Solid insulation, molded parts, insulating supports, and other dielectric materials may be assessed using defined test-electrode arrangements and controlled electrical stress.
A withstand test is not identical to a material dielectric-strength test that determines breakdown voltage under specified specimen geometry and conditions. Engineers should distinguish component-level safety testing from material characterization.
Transformers, motors, and cables
Windings, insulation barriers, cable terminations, and other dielectric structures may require AC or DC tests as prescribed by their respective standards. The voltage source and measurement system must be selected for the test object, expected current, and required procedure.
How Do Customer Requirements Affect Equipment Selection?
| Customer requirement | Important technical question | Recommended verification |
|---|---|---|
| Production quality control | What test voltage and duration are required? | Confirm the applicable product standard |
| Laboratory dielectric testing | What waveform and measurement uncertainty are needed? | Review the test method and instrument specifications |
| Transformer insulation evaluation | What winding configuration and output capacity are required? | Confirm voltage, kVA rating, and connections |
| Portable field testing | How often will the system be moved? | Compare weight, dimensions, and installation requirements |
| Automated production | Must the equipment store results or interface with a production line? | Verify controller, communication, and reporting functions |
| Material evaluation | Is the objective withstand verification or breakdown characterization? | Define specimen geometry and test method |
The Ac/Dc Withstand Voltage Tester selected for a production line may require different features from a laboratory high-voltage system. A production tester may prioritize repeatable operation and interlocking, while a laboratory system may require additional measurement capability and documented uncertainty.

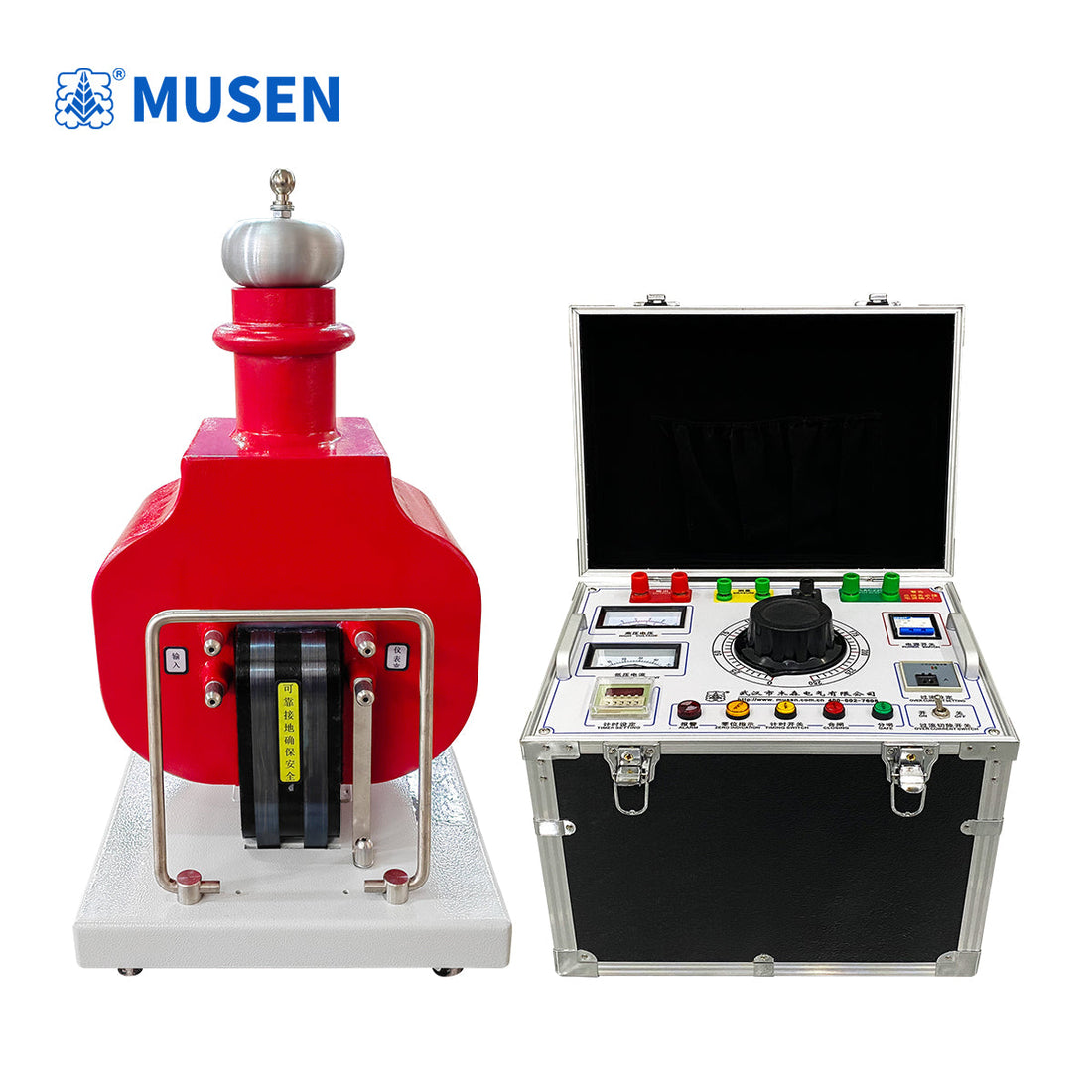

Which Transformer Construction Is Appropriate?
Musen Electric's supplied product information identifies three construction types.
| Construction | Described features | Potential application consideration |
|---|---|---|
| Oil-immersed YDJ(Z) | Compact octagonal enclosure and coaxial winding arrangement | Conventional AC high-voltage testing |
| Gas-insulated YDQ | Reduced weight compared with traditional oil-immersed designs; no insulating-oil leakage | Applications where handling and cleanliness matter |
| Dry-type GTB | Vacuum-cast epoxy coils and CD-type core | Portable use and environments where oil leakage is undesirable |
The product information states a selectable capacity range of 1–300 kVA and describes YDQ series voltage levels up to 300 kV. These are product-family figures. Buyers should request a model-specific specification to establish the actual voltage, capacity, dimensions, weight, and permitted duty cycle.
What Standards Help Define the Test?
| Standard | Relevance |
|---|---|
| IEC 61180:2016 | AC, DC, and impulse dielectric testing of low-voltage equipment |
| IEC 60060-1:2025 | General high-voltage test terminology and requirements for its defined scope |
| IEC 60664-1 | Insulation coordination for applicable low-voltage equipment |
| IEC 62368-1:2023 | Safety requirements for applicable audio/video and ICT equipment |
Standards should be selected according to the equipment category. For example, IEC 61180 does not automatically define the required test voltage for every electrical appliance or high-voltage component. Product-specific standards and their normative requirements remain decisive.
How Does Testing Help Reduce Quality Risks?
A correctly specified withstand test can identify certain insulation weaknesses before products enter service. It can also support traceable quality records when the test setup, measurement system, acceptance limits, and product identification are documented.
However, a pass result does not guarantee immunity from future insulation aging, contamination, mechanical damage, moisture ingress, or transient overvoltage. A comprehensive quality program may also include visual inspection, insulation-resistance testing, protective-bonding verification, and other application-specific checks.
High-voltage testing must use suitable barriers, grounding, interlocks, emergency isolation, and safe discharge procedures. Only trained personnel should operate the equipment.
Why Source Equipment from Musen Electric?
For buyers comparing an Ac/Dc High Voltage Tester or Ac/Dc Hipot Tester, the key decision is not the product name alone. The supplier should confirm the output rating, test method, accessories, control unit, measurement capability, and applicable safety provisions.
Visit https://www.musenelectric.com/ to discuss the YDJ(Z), YDQ, and GTB product families and request a configuration that matches your application.
Frequently Asked Questions
Q: Can one tester cover appliances, cables, and transformer insulation?
A: Potentially, if the configured system meets the voltage, capacity, connection, and measurement requirements for each application. One configuration should not be assumed suitable for every test object.
Q: Is dielectric withstand testing the same as insulation-resistance testing?
A: No. Withstand testing applies a specified voltage to evaluate dielectric performance, while insulation-resistance testing measures resistance using a defined test voltage and measurement procedure.
Q: What information should buyers provide when requesting a quotation?
A: Specify the test object, required AC or DC voltage, capacity, test duration, duty cycle, measurement needs, operating environment, and any required automation or reporting functions.
Expert Review and International References
Technical Content Review: High-Voltage Test Equipment Technical Review
Publisher: Musen Electric
Website: https://www.musenelectric.com/
- IEC 61180:2016 — High-voltage test techniques for low-voltage equipment: Definitions, test and procedure requirements, test equipment. https://webstore.iec.ch/en/publication/25234
- IEC 60060-1:2025 — High-voltage test techniques: General terminology and test requirements. https://webstore.iec.ch/en/publication/65088
- IEC 60664-1 — Insulation coordination for equipment within low-voltage supply systems. https://webstore.iec.ch/en/publication/59671
- IEC 62368-1:2023 — Audio/video, information and communication technology equipment: Part 1, Safety requirements. https://webstore.iec.ch/en/publication/69308
The standards listed above are references for technical evaluation; applicability must be confirmed for each test object.
