Which Devices Can AC/DC Hipot Testers Test? Applications and Scope Explained

Ensuring the insulation integrity and withstand voltage performance of electrical equipment is critical for safe and reliable operation in power engineering and industrial applications. AC/DC Hipot Testers, also referred to as high voltage testers, are essential tools for testing insulation and identifying potential failures in a wide range of electrical devices. Musenelec (www.musenelectric.com) specializes in high-precision Hipot Testers designed for overseas engineers, utilities, and industrial users. This article answers key questions about what devices can be tested, technical advantages, operational guidance, and practical applications.

1. What Basic Devices Can Hipot Testers Evaluate?

Hipot Testers are primarily used to verify insulation strength and detect potential dielectric failures. Commonly tested devices include motors, transformers, switchgear, cables, and industrial appliances. During testing, high voltage is applied across the insulation while leakage current is monitored to determine compliance with international safety standards. AC/DC high voltage testers allow switching between AC and DC modes to meet the requirements of different equipment.

Musenelec Hipot Testers utilize advanced current detection technology and built-in safety features, ensuring reliable and accurate test results. Selecting the correct model based on rated voltage and device capacity is essential for safe and efficient testing.

2. Which Industries and Equipment Types Require Hipot Testing?

Hipot testing is widely used across power generation, transmission, distribution, industrial automation, and appliance manufacturing.

• Power generation and distribution: Transformers, switchgear, busbars, and high-voltage cables are tested to prevent insulation breakdown and partial discharge.

• Industrial automation: Servo motors, control modules, and sensors require regular insulation verification using high voltage testers.

• Appliance manufacturing: Household appliances such as water heaters, refrigerators, and air conditioners need insulation safety testing to comply with IEC and UL standards.

3. What Are the Technical Advantages of AC/DC Hipot Testers?

AC/DC Hipot Testers provide distinct advantages over traditional single-mode devices:

• AC mode: Ideal for insulation withstand voltage and dielectric strength testing.

• DC mode: Measures leakage current and insulation breakdown characteristics, identifying issues AC testing may miss.

Musenelec Hipot Testers feature digital current acquisition, intelligent current-limiting protection, and real-time leakage monitoring. The system automatically shuts down if abnormal voltage or current is detected, ensuring safety. Multiple stored test programs allow fast switching between different testing scenarios, making these testers suitable for research, production, and on-site commissioning.

4. How to Select and Operate a Hipot Tester Safely?

Selecting the appropriate Hipot Tester requires consideration of rated voltage, output capacity, AC/DC switching capability, and built-in safety protections. Proper operation involves strict adherence to testing procedures and the use of protective gear. Failure to follow guidelines can result in inaccurate results or safety hazards.

Musenelec provides comprehensive support including device selection guidance, operator training, and periodic calibration. Standardized operation and correct model choice significantly reduce insulation failure risks and ensure long-term system reliability.

 5. Recommended Device for Reliable Testing

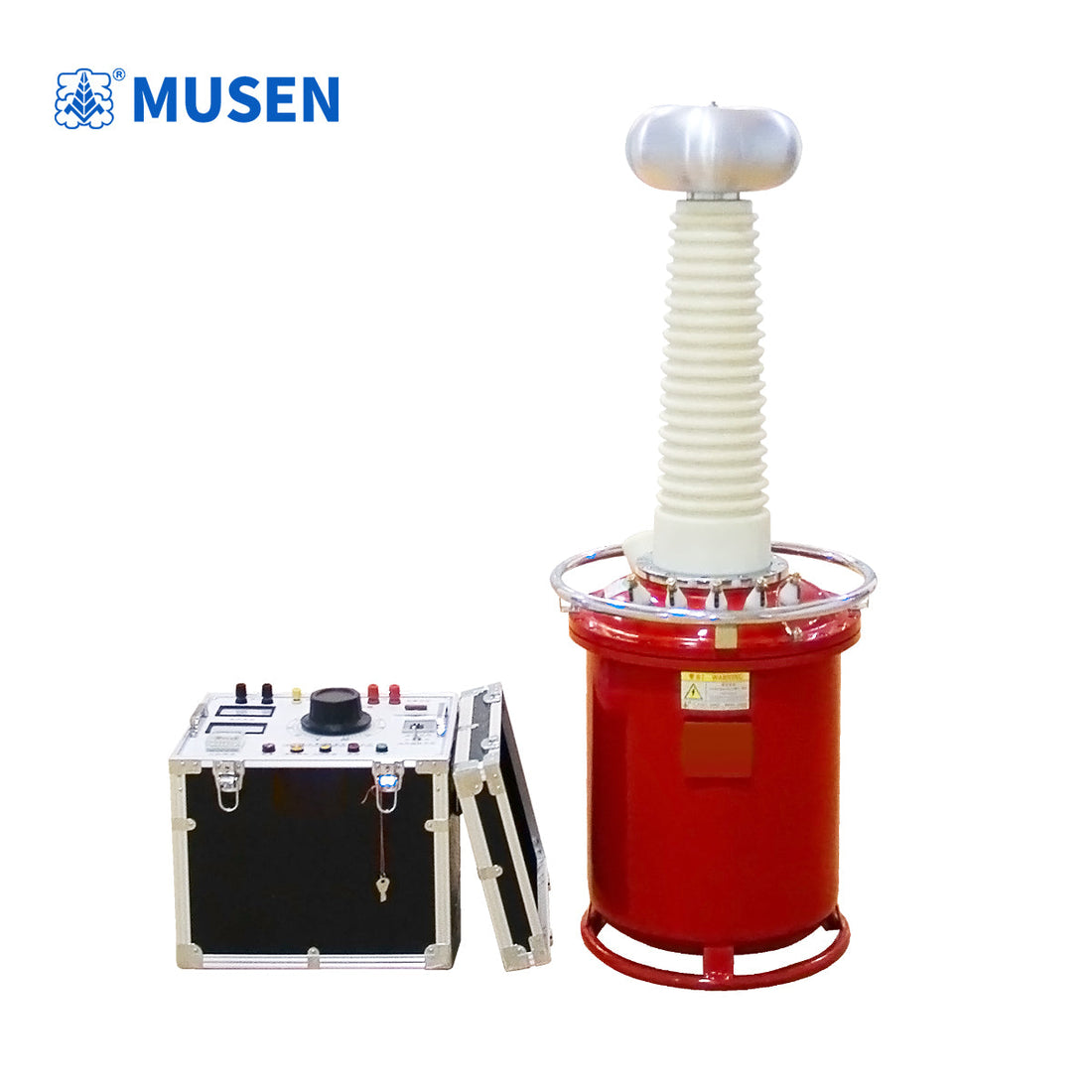

For professional applications, Musenelec recommends the MSYDJZ(W) Q High Voltage Tester AC/DC Withstand Tester, offering versatility and reliability:

1. Dual-use capability: Performs AC withstand, DC withstand, and leakage current testing.

2. Three transformer options: Oil-immersed, dry-type, and gas-insulated, suitable for indoor, field, high-altitude, or mobile testing.

3. Modular design: Flexible combination of control unit and test transformer for easy upgrade, transport, and on-site use.

4. Wide capacity and voltage range: 1.5kVA–300kVA, 50kV/100kV/150kV options to accommodate various devices.

5. Simple operation and complete protection: Overcurrent, overvoltage, zero-start, and audible/visual alarms ensure operator safety.

6. Broad application: Suitable for switchgear, cables, transformers, CTs, insulators, and insulating materials.

Musenelec’s MSYDJZ(W) Q series provides professional, safe, and efficient high voltage testing, ensuring global engineers can maintain insulation integrity and electrical system reliability.

AC/DC Hipot Testers are indispensable for testing insulation and high voltage withstand performance across motors, transformers, switchgear, cables, and other devices. Selecting reliable equipment, following safe operation procedures, and understanding industry-specific applications are critical for overseas engineers and industrial operators. Musenelec offers precision Hipot Testers and professional support to ensure safe, accurate, and efficient testing operations.
