What Key Features Should You Consider When Choosing a Relay Tester?

 Why Choosing the Right Relay Tester is Crucial

In modern power systems, a relay tester is essential for ensuring the reliability and safety of electrical equipment. Whether you're testing protection relays or monitoring circuit performance, selecting the right relay tester can significantly impact the efficiency and security of your operations. With so many models available, it’s important to understand the key features to look for. This article will guide you through these critical aspects, helping you make an informed decision when purchasing a relay tester for your electrical systems.

1. Accuracy and Measurement Range: Why Are They So Important?

Precision is Key for Reliable Testing

The accuracy of a relay tester is crucial for delivering precise results. A high-accuracy tester ensures that all essential parameters—such as pickup voltage, dropout voltage, and response time—are measured correctly. This accuracy prevents errors that could lead to equipment malfunctions or failure.

• Measurement Range: A tester’s measurement range determines its applicability for various relay types, including high-voltage and low-voltage relays. A tester with a broad voltage and current range provides more flexibility, enabling it to handle different types of protection relays and systems.

• Real-World Example: The MS-702C Three-Phase Relay Tester from Musen Electric is designed for high-precision testing, ensuring that your relay systems meet all performance standards.

2. Versatility and Functionality: What Features Enhance Your Testing Experience?

Essential Functions for Complex Testing Needs

Relay testers today offer a wide range of functions beyond basic testing. When selecting a tester, it’s important to look for a model that offers versatility in testing modes and additional features.

• Multiple Testing Modes: Some models offer modes such as single-shot testing, continuous testing, and automated cycle testing. These modes are designed to accommodate different types of tests based on system requirements.

• Fault Diagnosis and Reporting: Many advanced testers include automated fault detection and diagnostic capabilities, which can pinpoint issues in the relay or the protection system.

• Data Recording: The ability to record test data and generate reports is an invaluable feature, simplifying maintenance and ensuring long-term system integrity.

For example, the MS-802C Three-Phase Relay Tester from Musen Electric includes fault diagnosis, automated testing, and detailed data analysis capabilities, which streamline testing and enhance the accuracy of results.

3. Compatibility and Ease of Use: How to Ensure Smooth Operation?

Ensuring Broad Compatibility and User-Friendly Design

When choosing a relay tester, compatibility and ease of use should be top priorities. A good tester should be compatible with various relay types and easy to operate, even for those with limited experience.

• Support for Various Relay Types: Modern relay testers should be capable of testing a wide range of relays, including current, voltage, impedance, differential, and time relays, as well as more complex types like power-direction and frequency relays.

• User Interface: The tester should feature a user-friendly interface, making it easy for both experienced engineers and beginners to navigate and perform tests efficiently.

• Connectivity: Consider models that offer easy integration with computers or other testing devices via USB, RS-232, or other interfaces for data transfer and analysis.

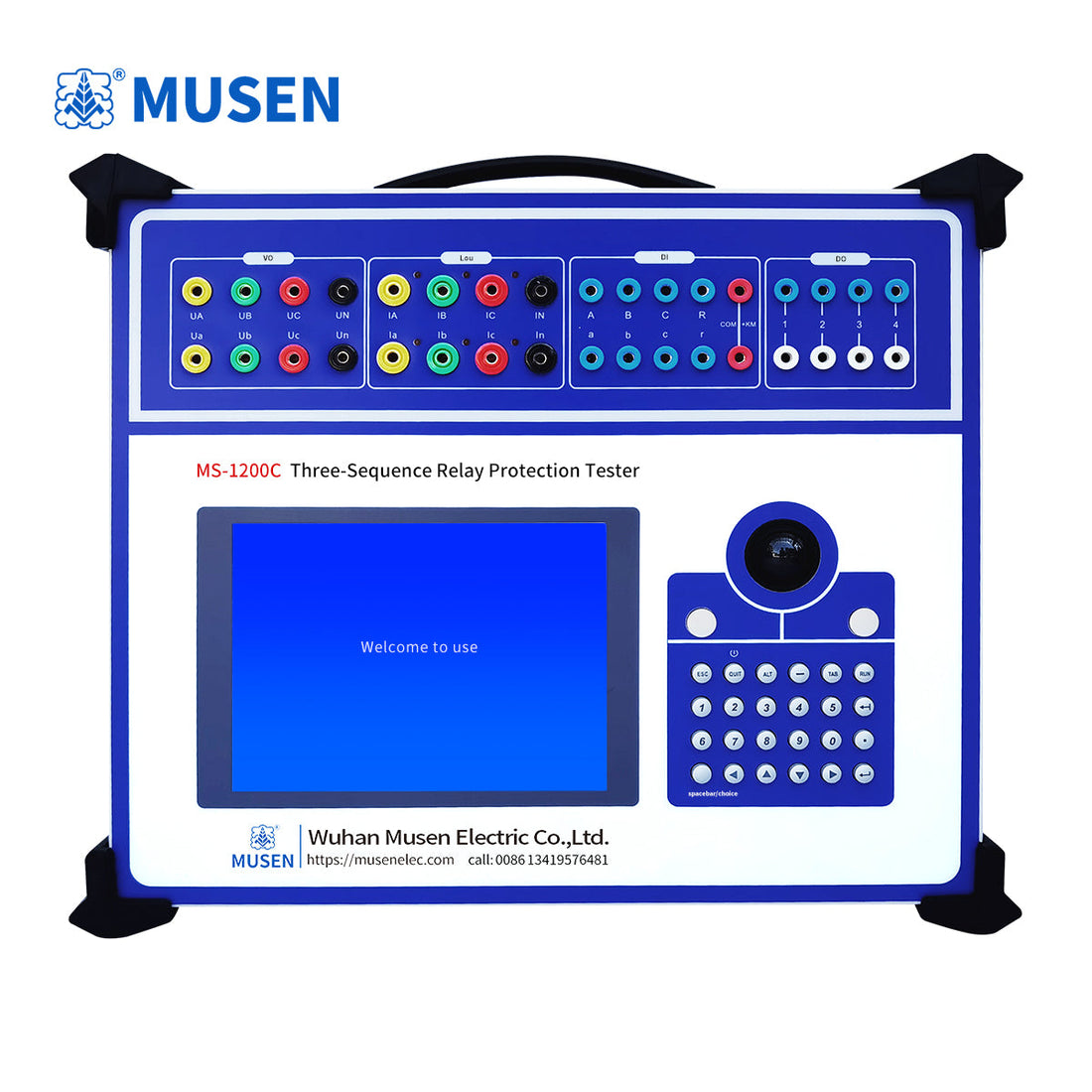

Musen Electric’s MS-1200C Six-Phase Relay Tester is designed for compatibility with various relay types and features an intuitive interface that ensures smooth operation.

4. Durability and Safety: What Are the Key Safety Features?

Ensuring Long-Term Reliability and Safety

The durability and safety of a relay tester are critical for long-term operation, especially in industrial settings where environmental factors can be harsh. A good tester should offer the following safety and durability features:

• Overload Protection: Ensure the tester can handle overloads without compromising safety or damaging equipment.

• Environmental Resistance: The tester should be built to withstand challenging conditions, including temperature extremes, humidity, and mechanical stress.

• Safety Features: Look for built-in protection mechanisms such as short-circuit protection, overheat protection, and shock resistance.

The MS-702C model from Musen Electric features robust safety mechanisms and is designed for high durability, making it suitable for industrial use in demanding environments.

Making the Right Choice for Your Relay Testing Needs

Choosing the right relay tester requires careful consideration of accuracy, functionality, compatibility, and safety. By understanding these key features, you can select a model that not only meets your technical needs but also enhances the efficiency and safety of your electrical systems.

Musen Electric offers a range of high-quality relay testers designed for various applications, including the MS-702C (Microcontroller-Based Three-Phase Relay Tester), MS-802C (Industrial Computer-Based Three-Phase Relay Tester), and the MS-1200C (Six-Phase Relay Tester). These models are capable of testing a wide variety of relay types, from basic time and impedance relays to more complex differential and power-direction relays. Additionally, they can simulate various faults, providing comprehensive testing solutions for both new installations and ongoing maintenance.

Visit Musen Electric to explore our range of reliable and durable relay testers and enhance the safety and efficiency of your power systems.
