What Is the Working Principle and Application of GIS No Partial Discharge Test Equipment?

In modern high-voltage substations, Gas Insulated Switchgear (GIS) is widely adopted due to its compact structure and high reliability. However, ensuring insulation integrity before commissioning is critical. The GIS No Partial Discharge Test Equipment plays a decisive role in validating insulation performance without triggering partial discharge during testing.

This article explains the working principle, application scenarios, and technical advantages of this equipment, helping overseas power utilities and EPC contractors understand its operational value.

What Is GIS No Partial Discharge Test Equipment?

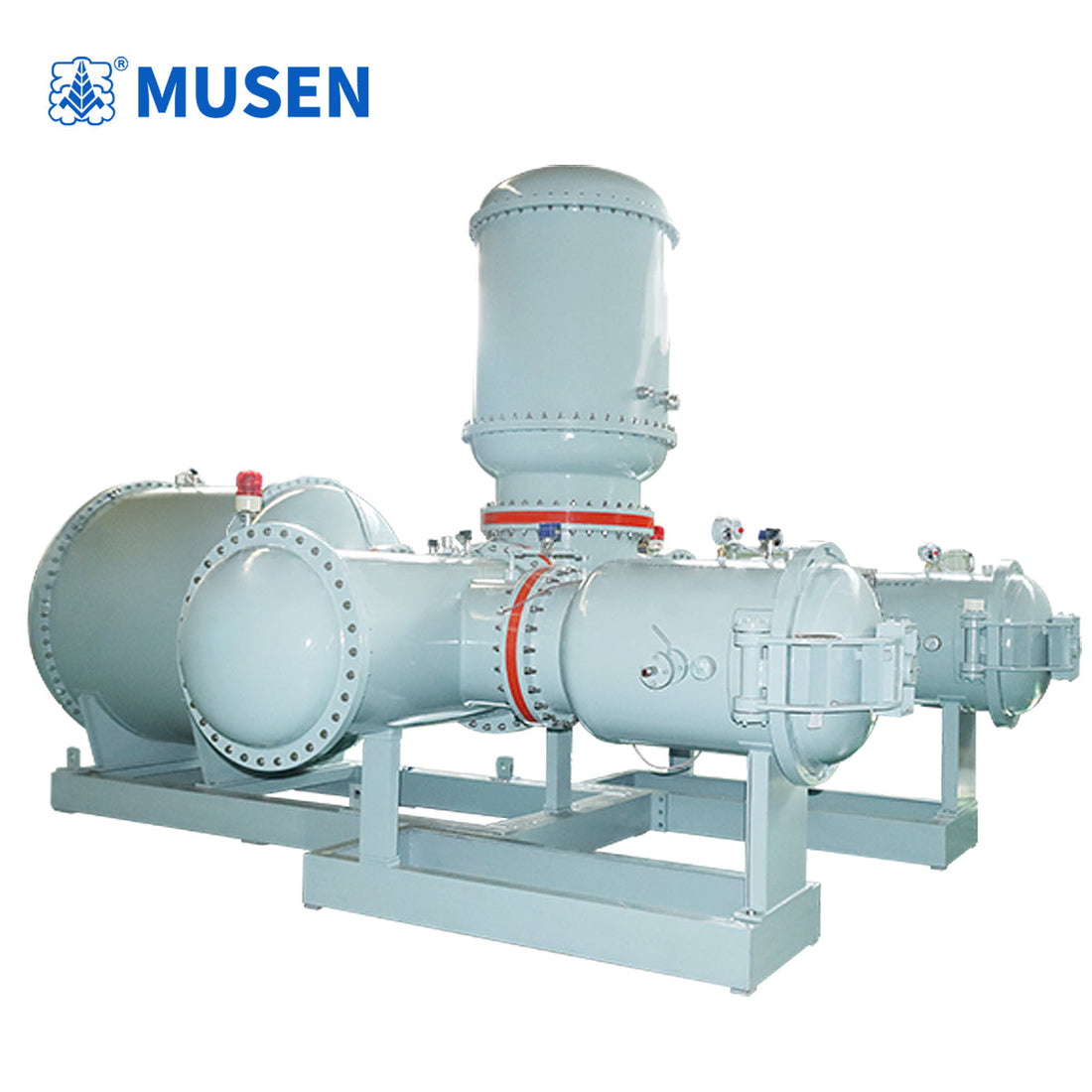

The GIS No Partial Discharge Test Equipment is a high-voltage testing system designed to verify the insulation strength of GIS assemblies under controlled conditions while ensuring that no partial discharge occurs during the testing process.

It is primarily used in:

• High-voltage GIS substations

• Power transmission infrastructure projects

• Equipment manufacturing quality inspection

• On-site commissioning for overseas EPC projects

How Does the Working Principle Ensure Zero Partial Discharge?

The system operates based on precision high-voltage generation combined with advanced filtering and shielding technology.

Core working mechanism includes:

1. High-stability resonant voltage generation

2. Ultra-low background discharge control

3. Precision voltage regulation and monitoring

4. Shielded output design to eliminate external interference

By using resonant boosting technology, voltage is increased smoothly to the required test level. The filtering circuit suppresses harmonic components, while the shielding system ensures that environmental noise does not affect the results.

This guarantees that the GIS No Partial Discharge Test Equipment delivers accurate insulation validation without inducing artificial discharge signals.

Why Is It Essential for Overseas Power Projects?

For international power engineering projects, compliance with IEC standards and reliability assurance are mandatory.

Key benefits include:

• Compliance with IEC insulation test standards

• Improved commissioning efficiency

• Reduced rework risk

• Enhanced safety assurance

In regions with harsh environmental conditions—such as high humidity or desert climates—GIS insulation verification becomes even more critical.

The GIS No Partial Discharge Test Equipment ensures consistent results across different geographic environments, making it suitable for export-oriented projects.

What Are the Main Application Scenarios?

The equipment is widely applied in:

• Pre-commissioning testing of newly installed GIS

• Factory routine testing before shipment

• Preventive maintenance inspections

• Upgrade and retrofit verification

Utility companies, grid operators, and independent power producers rely on this technology to avoid insulation failure after energization.

What Are the Core Technical Advantages?

From an engineering perspective, the system offers:

• High Q-factor resonance design

• Stable output waveform

• Accurate digital monitoring interface

• Modular structure for transport convenience

• Strong anti-interference capability

These features ensure operational stability and data reliability, particularly for large-scale substations above 110kV and 220kV levels.

Product Overview and Advantages – GIS No Partial Discharge Test Equipment

The GIS No Partial Discharge Test Equipment provided by Wuhan Musen Electric Co., Ltd. is engineered for high-precision insulation verification of GIS systems.

Product Highlights:

• Advanced resonant voltage boosting technology

• Ultra-low background partial discharge level

• High measurement accuracy

• Modular and compact structural design

• Suitable for factory and on-site applications

• Designed for international engineering standards

By integrating high stability, precise control, and strong anti-interference capability, this system helps power utilities minimize insulation risks before energization.

The GIS No Partial Discharge Test Equipment is a critical solution for ensuring insulation reliability in modern GIS substations. Through resonant voltage generation, precision filtering, and strict discharge control, it provides dependable verification for global power projects.

For overseas engineering companies and utilities seeking stable, compliant, and efficient GIS testing solutions,  delivers professional-grade equipment designed to meet international project requirements.
