What is the Procedure for Testing CT Excitation Characteristics and Knee-Point Voltage?

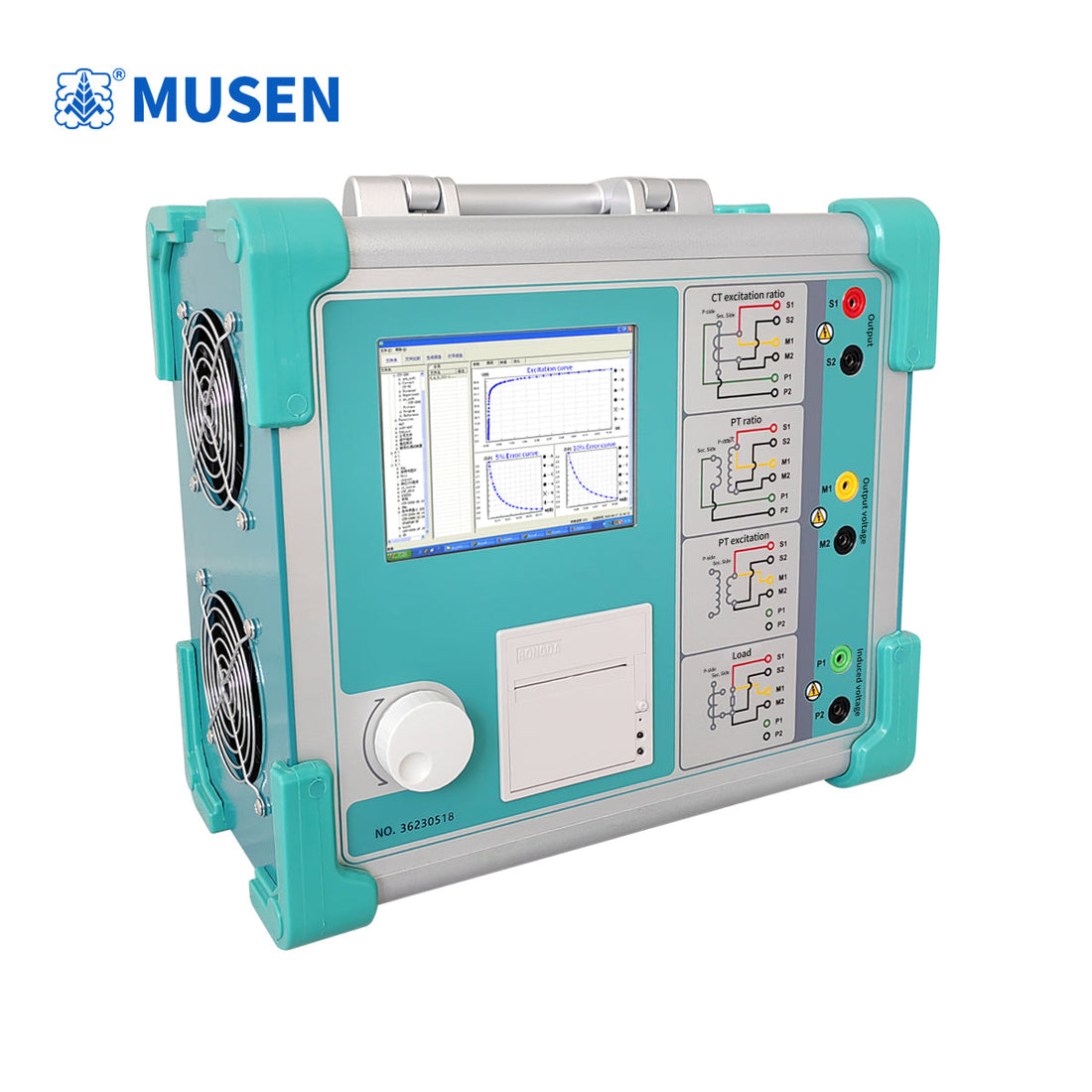

Testing CT excitation characteristics involves applying an AC voltage across the secondary winding while leaving the primary open to plot the voltage-current magnetization curve up to 180 Vrms and 12 Arms. A Ct Pt Transformer Integrated Tester automatically derives knee-point voltage and current, 10% and 5% error curves, accuracy limit factor (ALF), and instrument security factor (FS).
Understanding Magnetization and Saturation in Current Transformers
When fault currents surge through a power system, protective CTs must not saturate prematurely, otherwise secondary currents distort, blinding protective relays. Using a Comprehensive Ct Pt Tester helps engineers evaluate saturation and unsaturated inductance, secondary time constant ($T_s$), and remanence coefficient ($K_r$) in compliance with IEC 60044-6.
Comparison of CT Test Parameters and Standards
| Parameter Name | Standard Reference | Evaluation Metric |
|---|---|---|
| Knee-Point Voltage / Current | IEC 60044-1 / GB16847 | Automatic inflection point detection up to 45 kV |
| Composite Error Curves | IEC 60044-6 | 10% and 5% error calculation |
| Turns Ratio & Polarity | IEC 60044-1 | Ratio range 1–40,000 with ± 0.2% accuracy |
Maximizing Testing Efficiency with Dedicated Transformer Testing Equipment
Traditional manual testing methods require cumbersome variable autotransformers and external voltmeters, introducing human error. Modern Transformer Testing Equipment automates the entire sequence. With a peak output current capability of 36 A and robust internal data logging of up to 2,000 groups, test operators can transition seamlessly from protective CTs to protective PT electromagnetic units.
Frequently Asked Questions
- Q: Why is secondary winding resistance critical for CT performance?
- A: Secondary winding resistance (measurable up to 300 $\Omega$ with $2\% \pm 2\text{m}\Omega$ precision) directly impacts the total burden and voltage drop under heavy secondary load currents.
- Q: Can the analyzer automatically select the test standard?
- A: Yes, the unit detects the transformer type and classification level, automatically matching standard specifications such as GB1208, GB16847, or IEC equivalents.
